Suspension Control ( Automatic - Electronic )

Diagram 41-1:

Battery Junction Box
Fuse 12
Fuse 14
Fuse Junction Panel
Semi-Active Ride Control Module

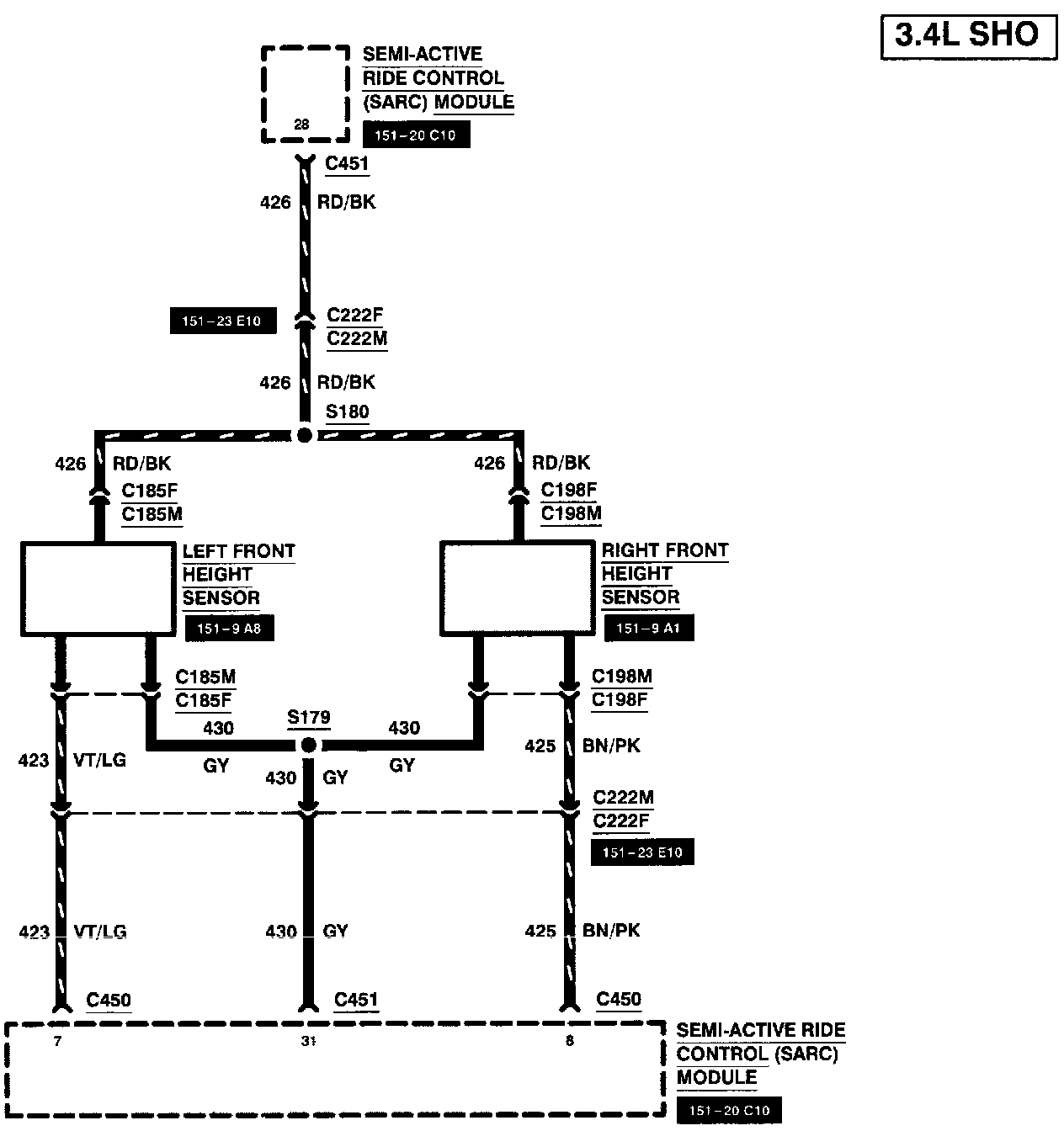

Diagram 41-2:

Left Front Height Sensor
Right Front Height Sensor
Semi-Active Ride Control Module

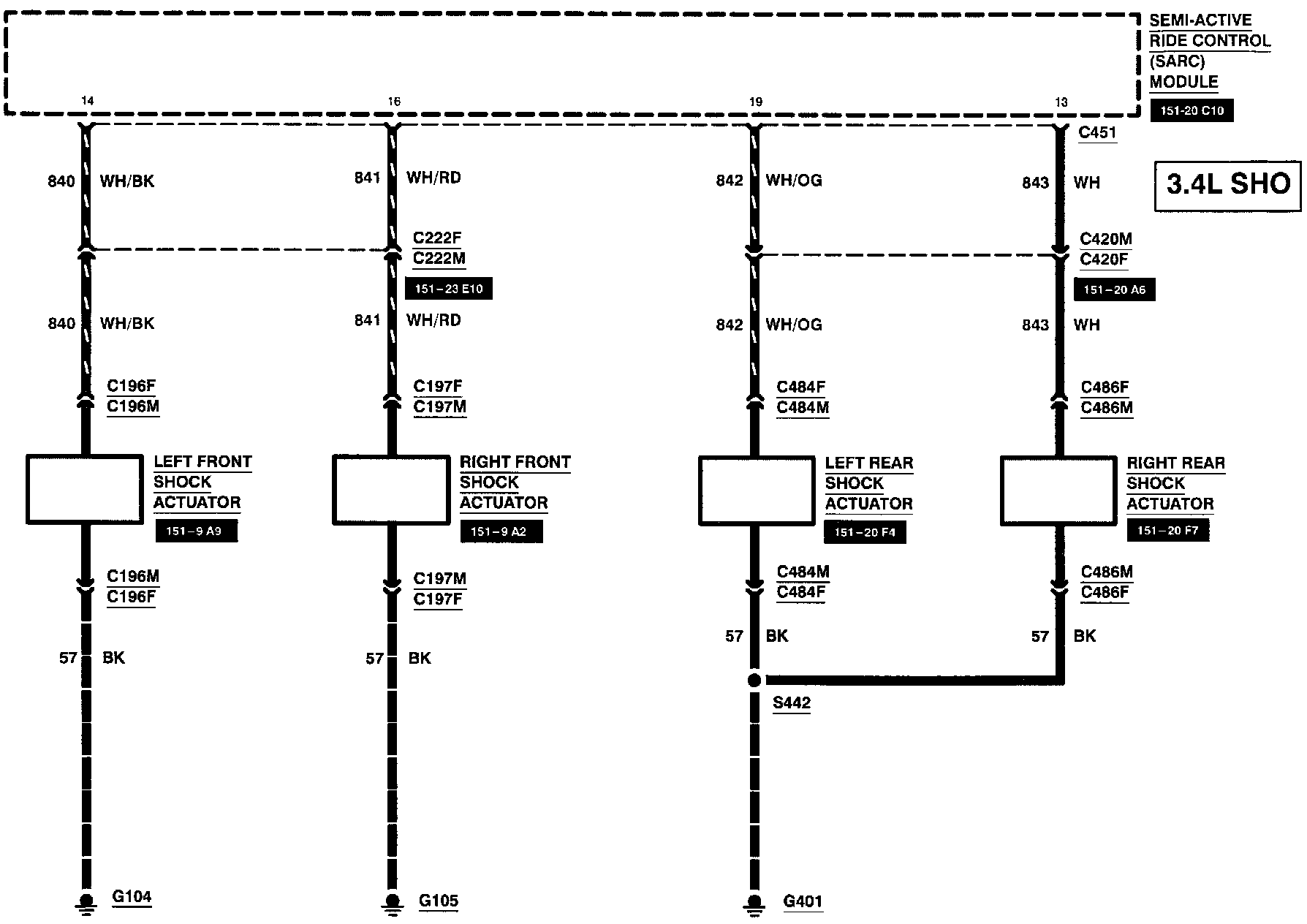

Diagram 41-3:

Left Front Shock Actuator
Left Rear Shock Actuator
Right Front Shock Actuator
Right Rear Shock Actuator
Semi-Active Ride Control Module
