System Diagram

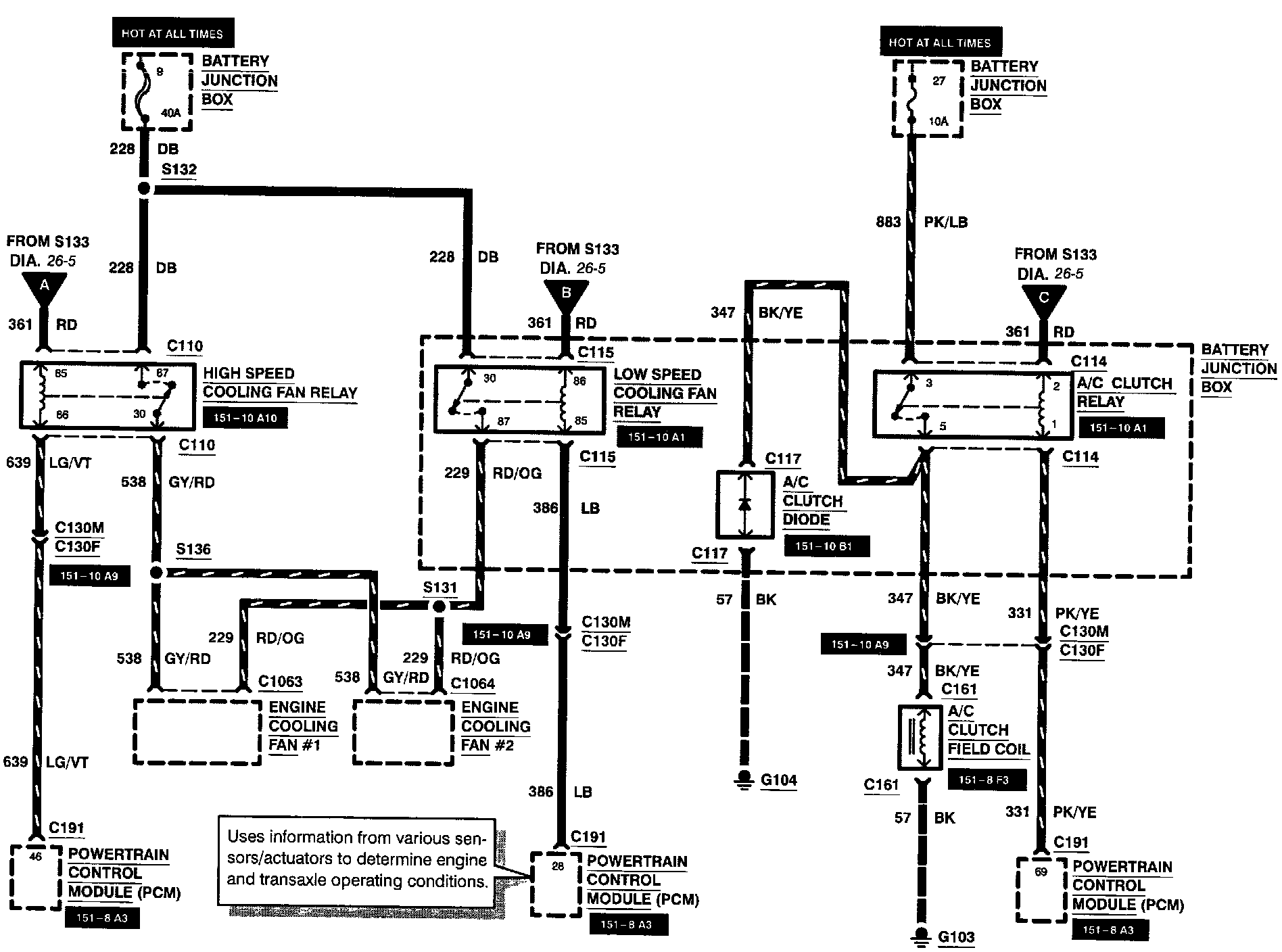

Diagram 26-1:

A/C Clutch Diode
A/C Clutch Field Coil
A/C Clutch Relay
Battery Junction Box
Fuse 27
Fuse 9
High Speed Cooling Fan Relay
Low Speed Cooling Fan Relay

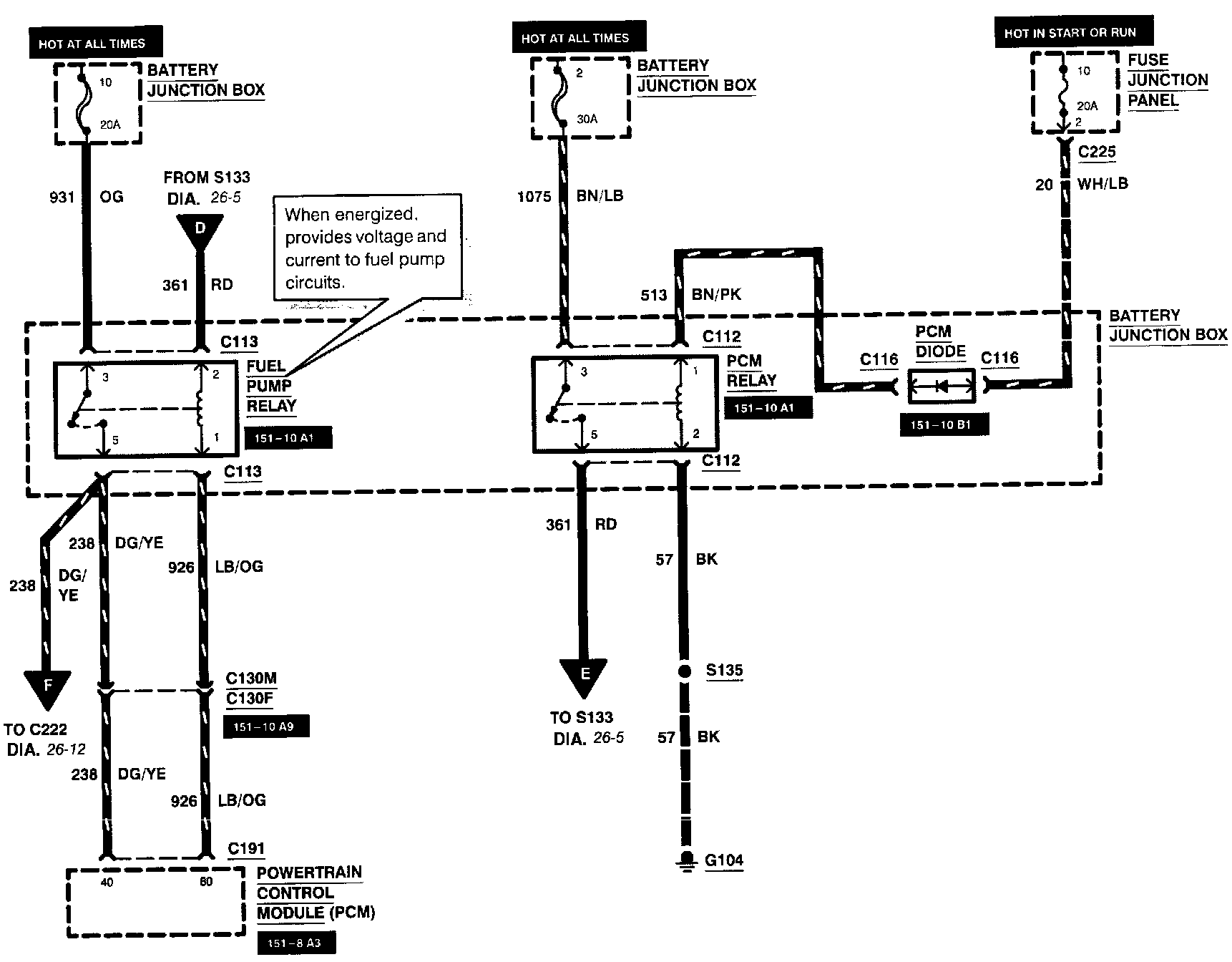

Diagram 26-2:

Battery Junction Box
Fuel Pump Relay
Fuse 10
Fuse 2
Fuse Junction Panel
Powertrain Control Module Diode
Powertrain Control Module Relay

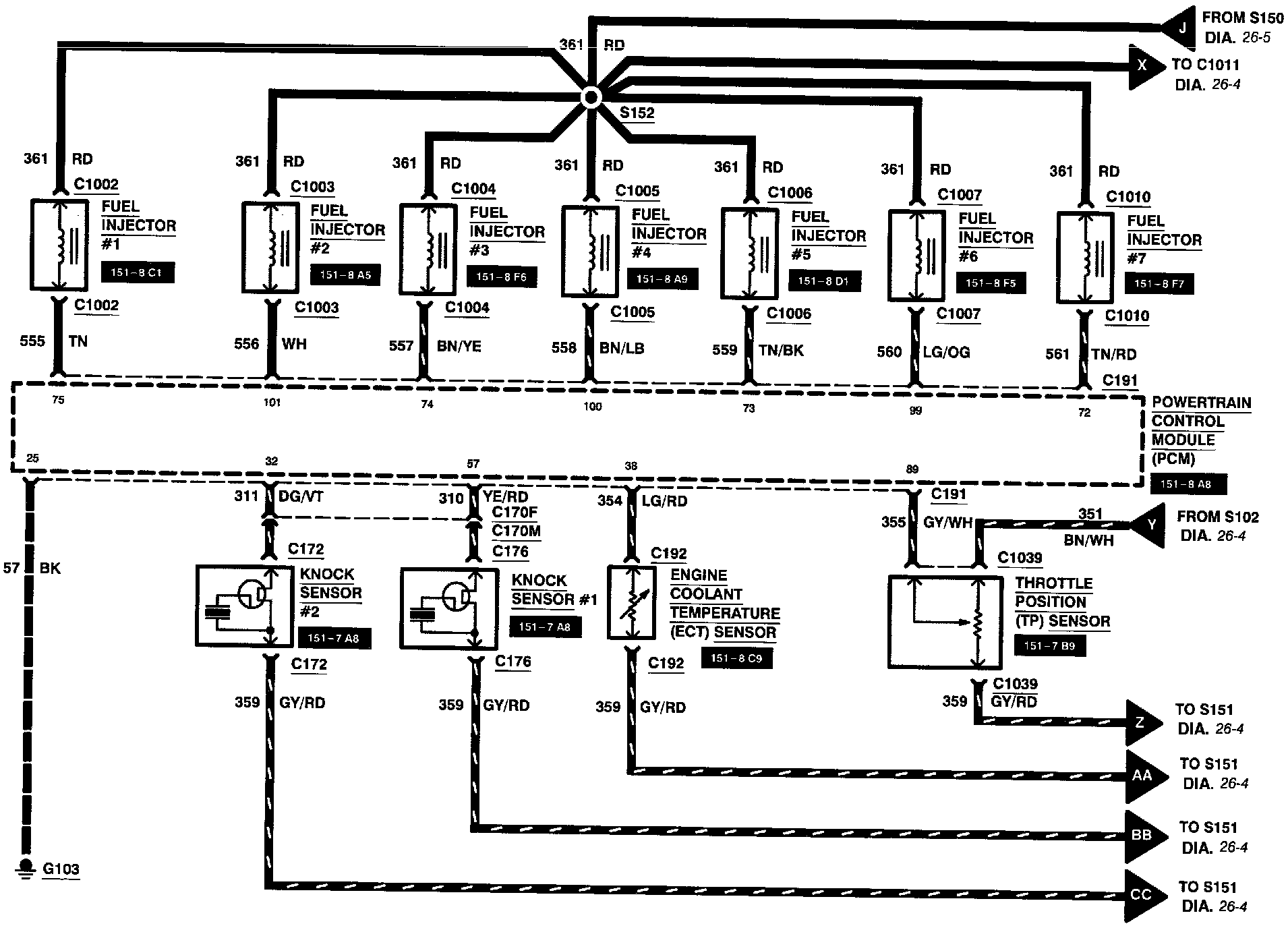

Diagram 26-3:

Engine Coolant Temperature Sensor
Fuel Injector # 1
Fuel Injector # 2
Fuel Injector # 3
Fuel Injector # 4
Fuel Injector # 5
Fuel Injector # 6
Fuel Injector # 7
Knock Sensor #1
Knock Sensor #2
Powertrain Control Module
Throttle Position Sensor

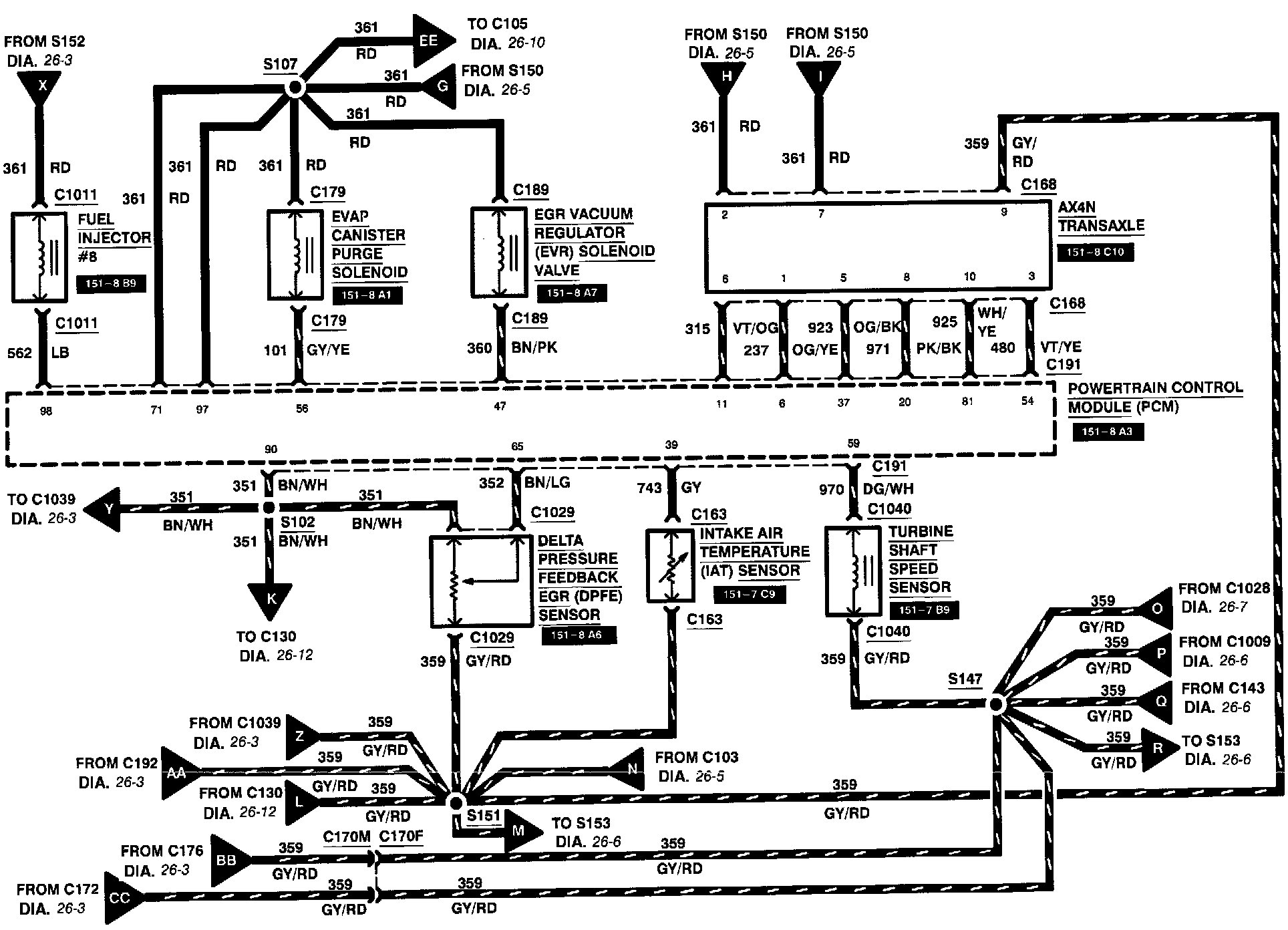

Diagram 26-4:

AX4N Transaxle
Delta Pressure Feedback EGR Sensor
EGR Vacuum Regulator Solenoid Valve
Evaporative Canister Purge Solenoid
Fuel Injector # 8
Intake Air Temperature Sensor
Powertrain Control Module
Turbine Shaft Speed Sensor

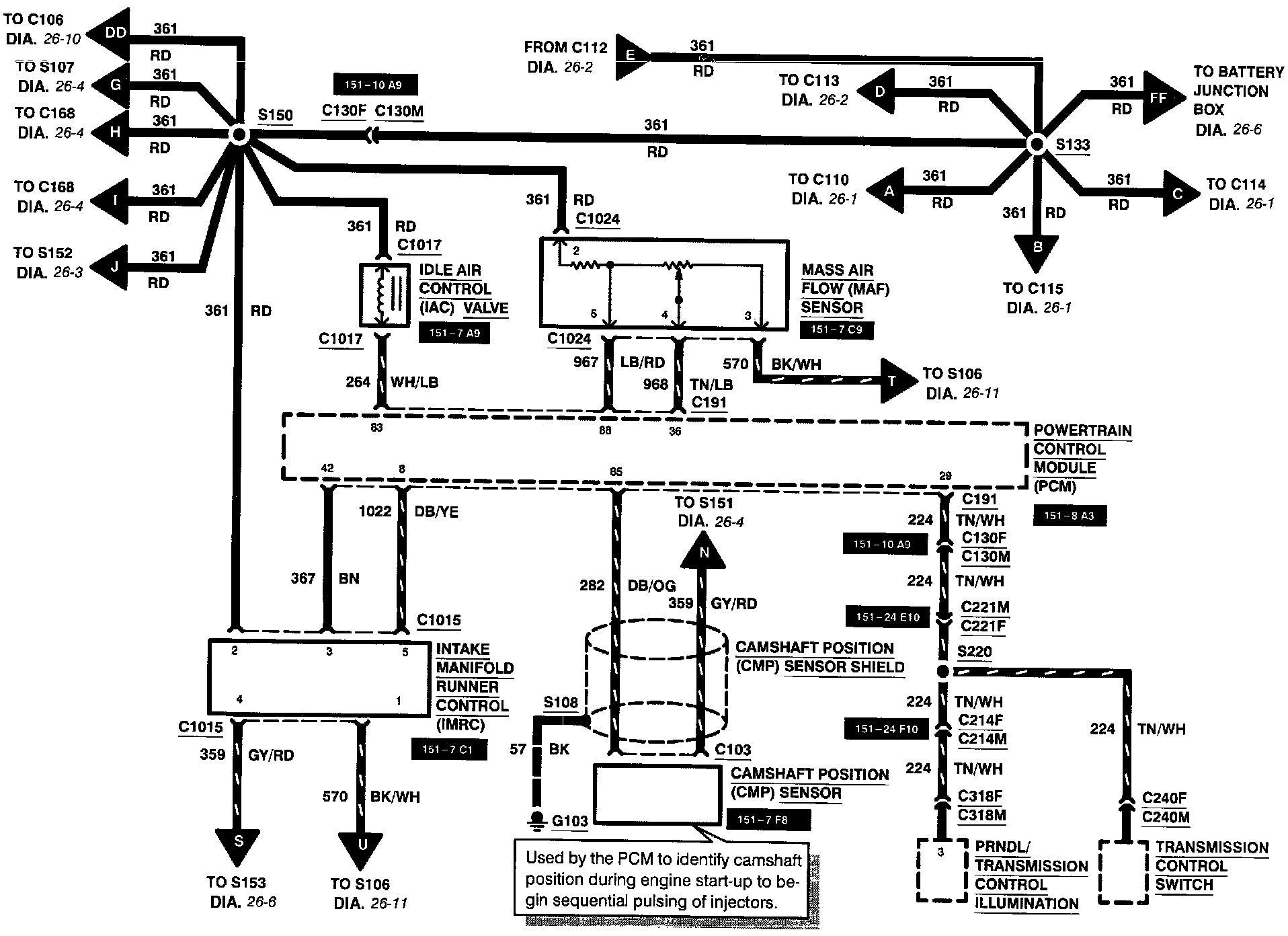

Diagram 26-5:

Camshaft Position Sensor
Camshaft Position Sensor Shield
Idle Air Control Valve
Intake Manifold Runner Control
Mass Air Flow Sensor
Powertrain Control Module

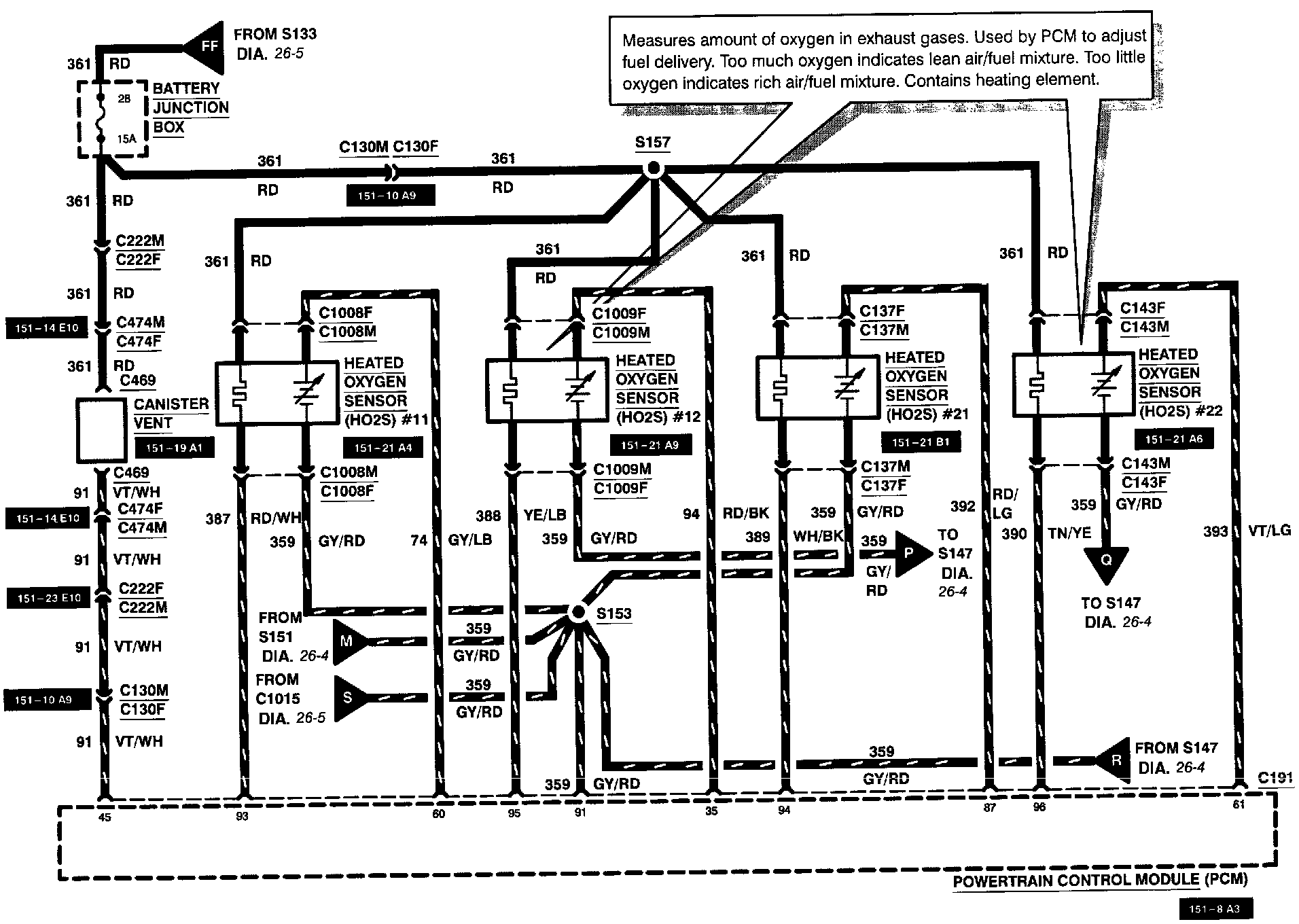

Diagram 26-6:

Battery Junction Box
Canister Vent
Fuse 28
Heated Oxygen Sensor # 11
Heated Oxygen Sensor # 12
Heated Oxygen Sensor # 21
Heated Oxygen Sensor # 22

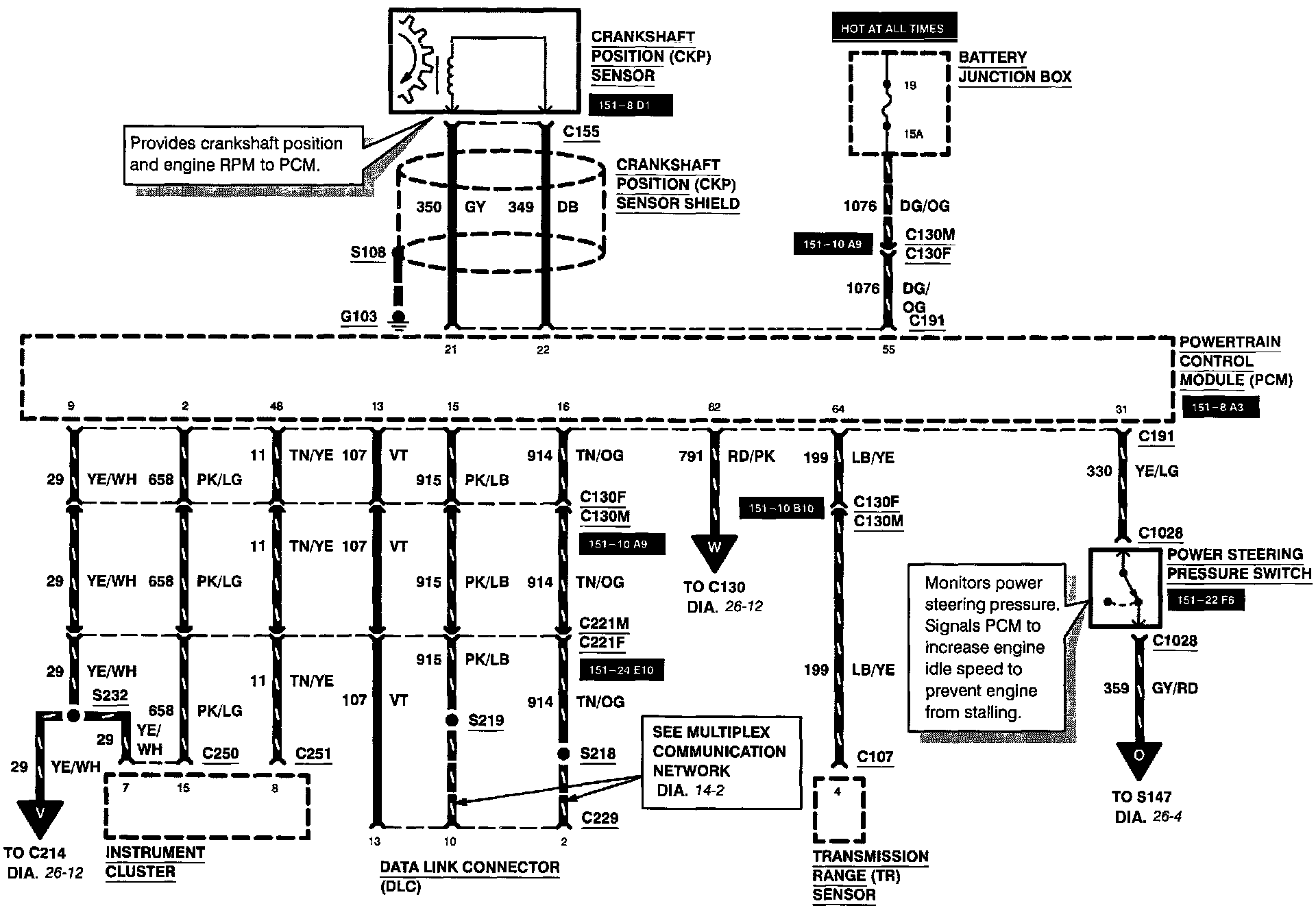

Diagram 26-7:

Battery Junction Box
Crankshaft Position Sensor
Crankshaft Position Sensor Shield
Fuse 19
Power Steering Pressure Switch
Powertrain Control Module

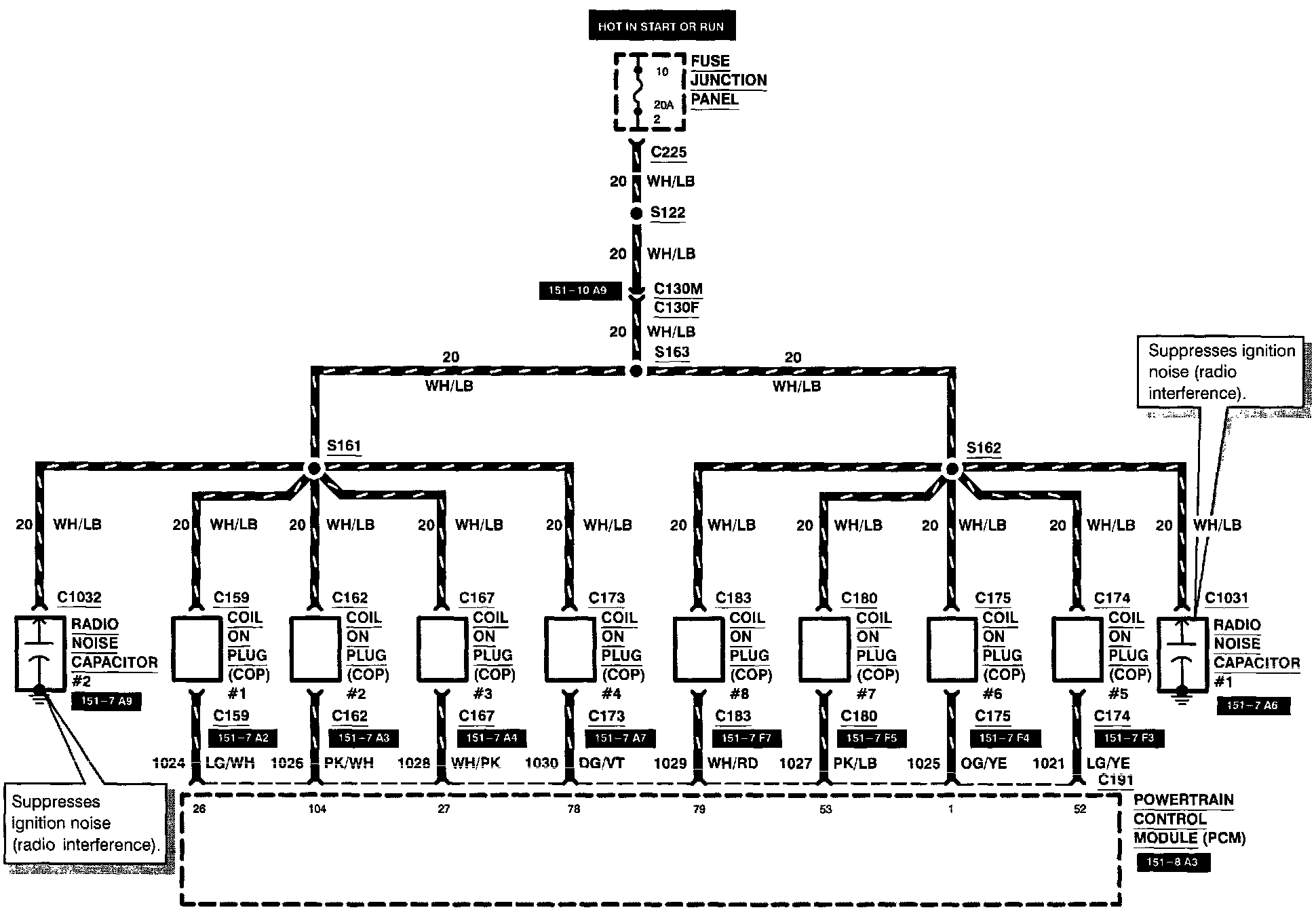

Diagram 26-8:

Coil On Plug # 1
Coil On Plug # 2
Coil On Plug # 3
Coil On Plug # 4
Coil On Plug # 5
Coil On Plug # 6
Coil On Plug # 7
Coil On Plug # 8
Fuse 10
Fuse Junction Panel
Radio Noise Capacitor # 1
Radio Noise Capacitor # 2

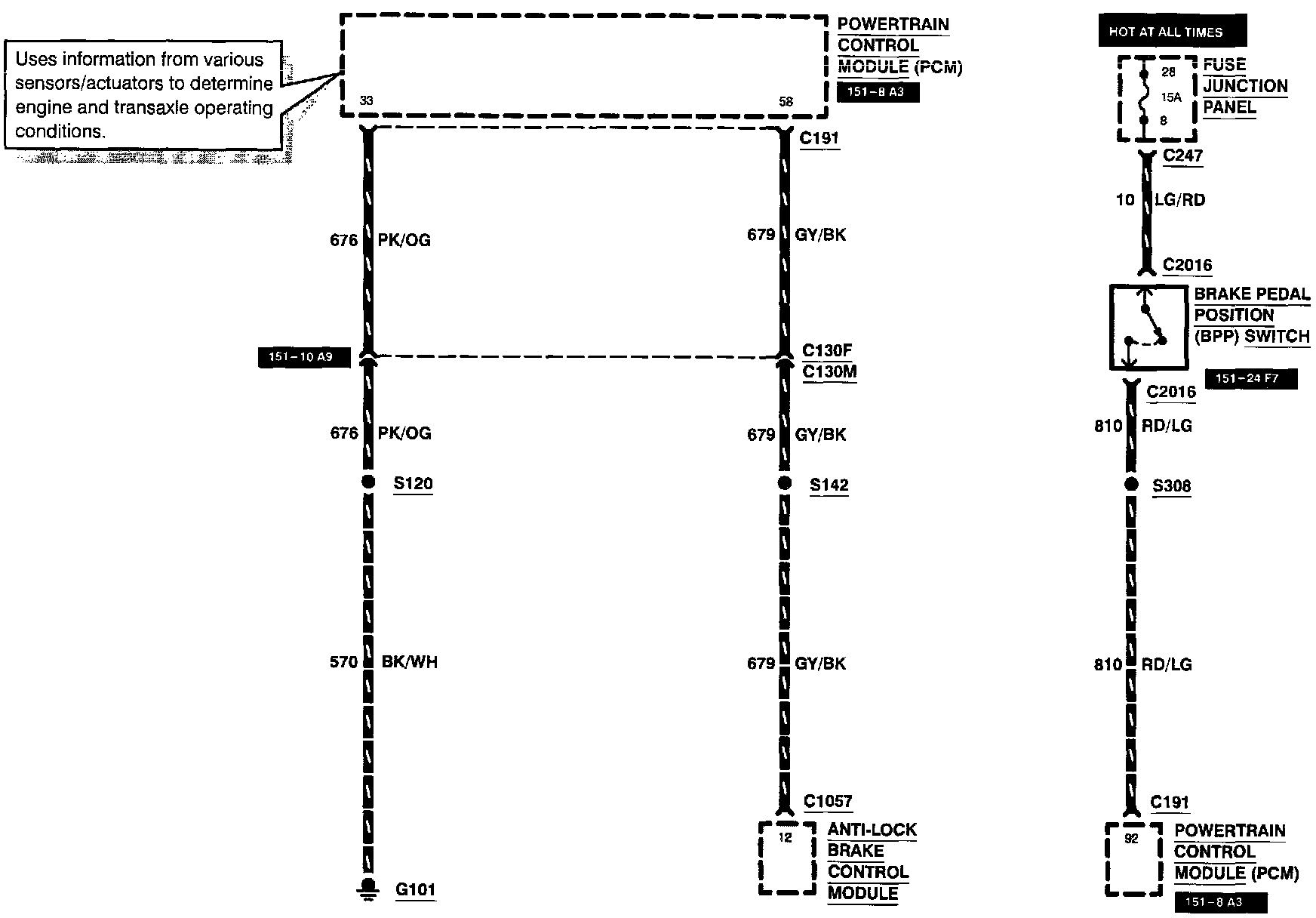

Diagram 26-9:

Brake Pedal Position Switch
Fuse 28
Fuse Junction Panel

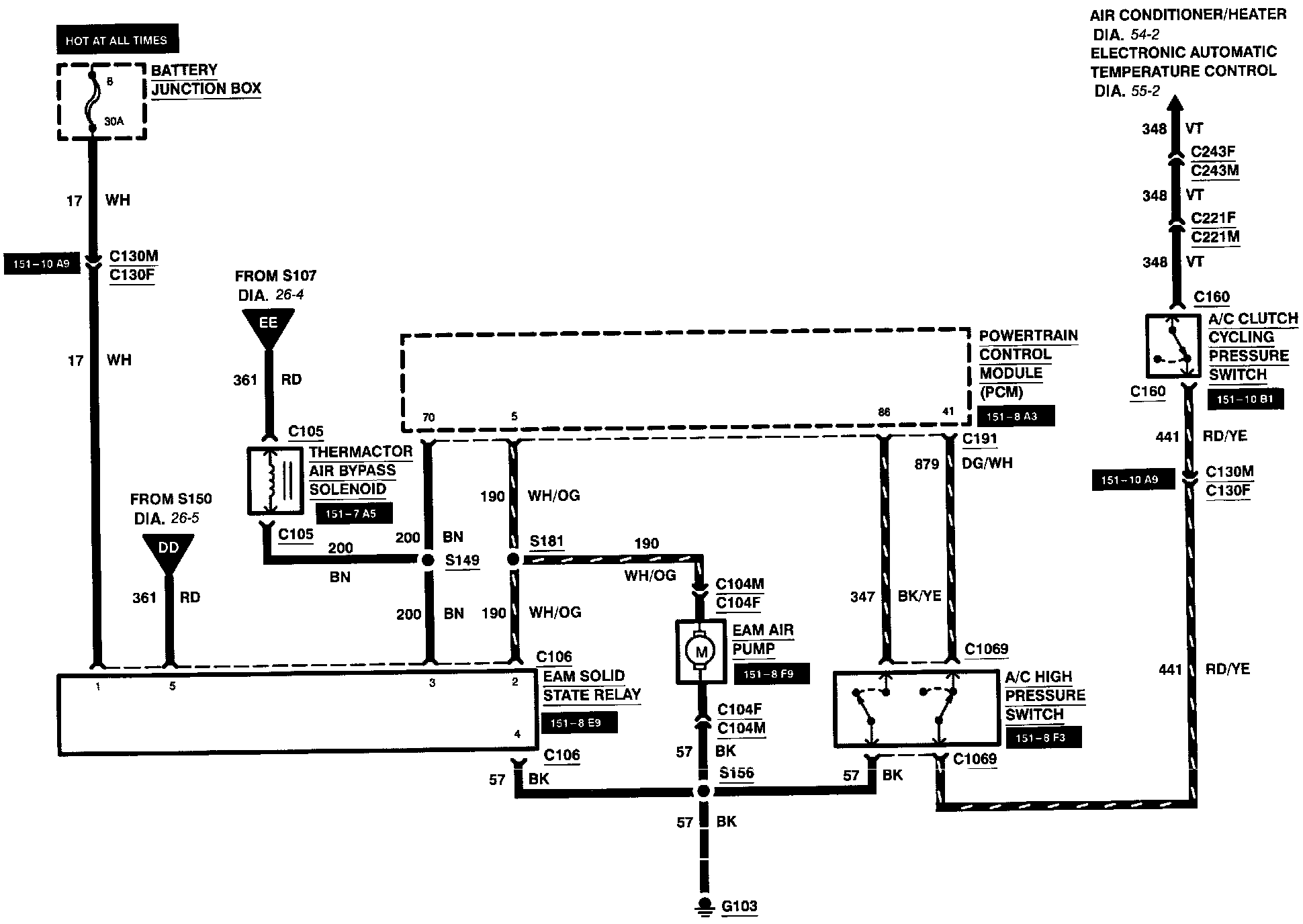

Diagram 26-10:

A/C Clutch Cycling Pressure Switch
A/C High Pressure Switch
Battery Junction Box
Electric Air Management Air Pump
Electronic Air Management Solid State Relay
Fuse 8
Powertrain Control Module
Thermactor Air Bypass Solenoid

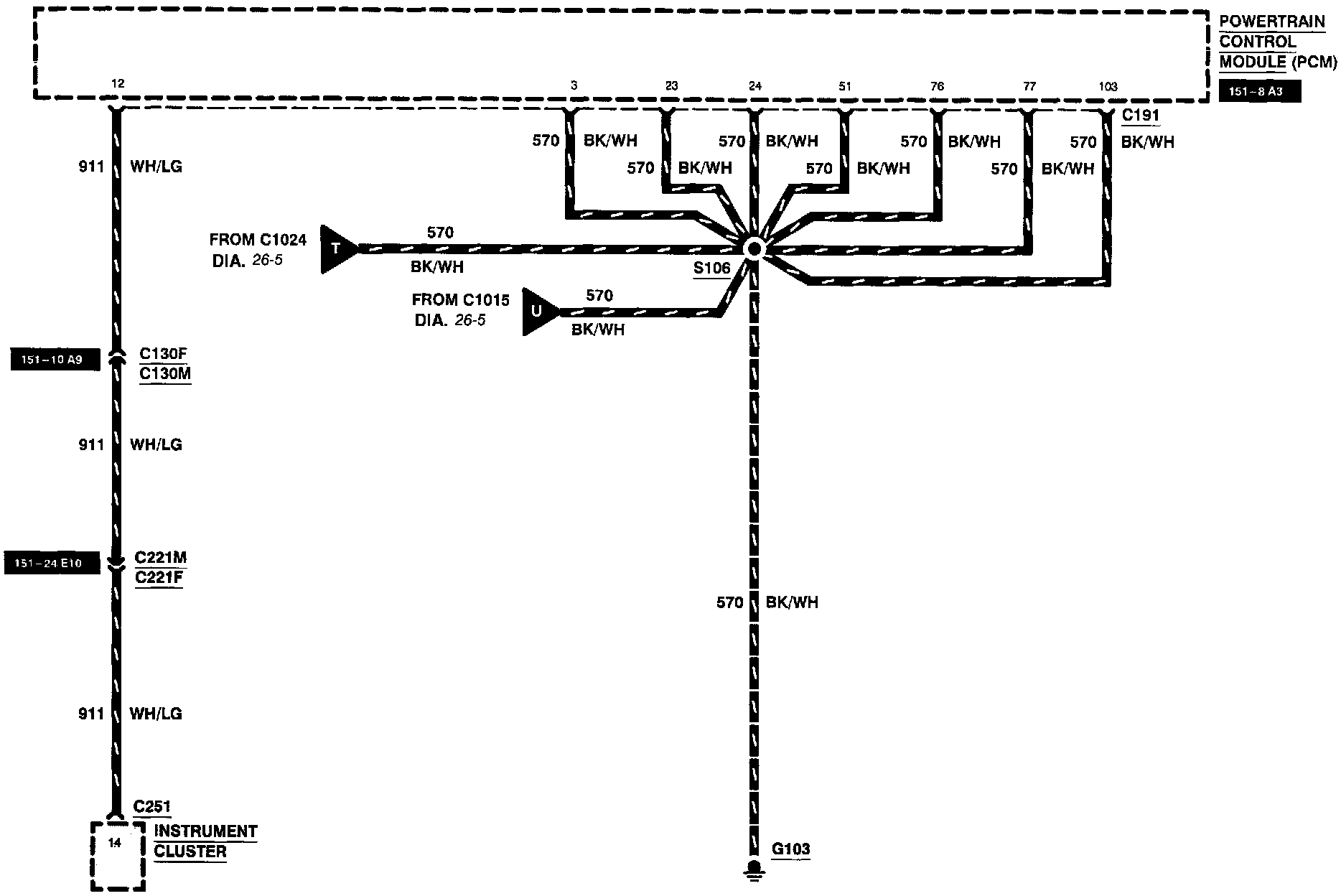

Diagram 26-11:

Powertrain Control Module

Diagram 26-12:

Fuel Pump/Fuel Gauge Sender
Inertia Fuel Shutoff Switch
Transmission Range Sensor
