Instrument Cluster

Diagram 60-1:

Brake Fluid Level Switch
Brake Indicator
Door Ajar Indicator
Fuse 12
Fuse Junction Panel
Ignition Switch
Oil Pressure Indicator
Safety Belt Indicator

Diagram 60-3:

Check Engine Indicator
Low Coolant Indicator
Tachometer
Transmission Control Indicator Lamp

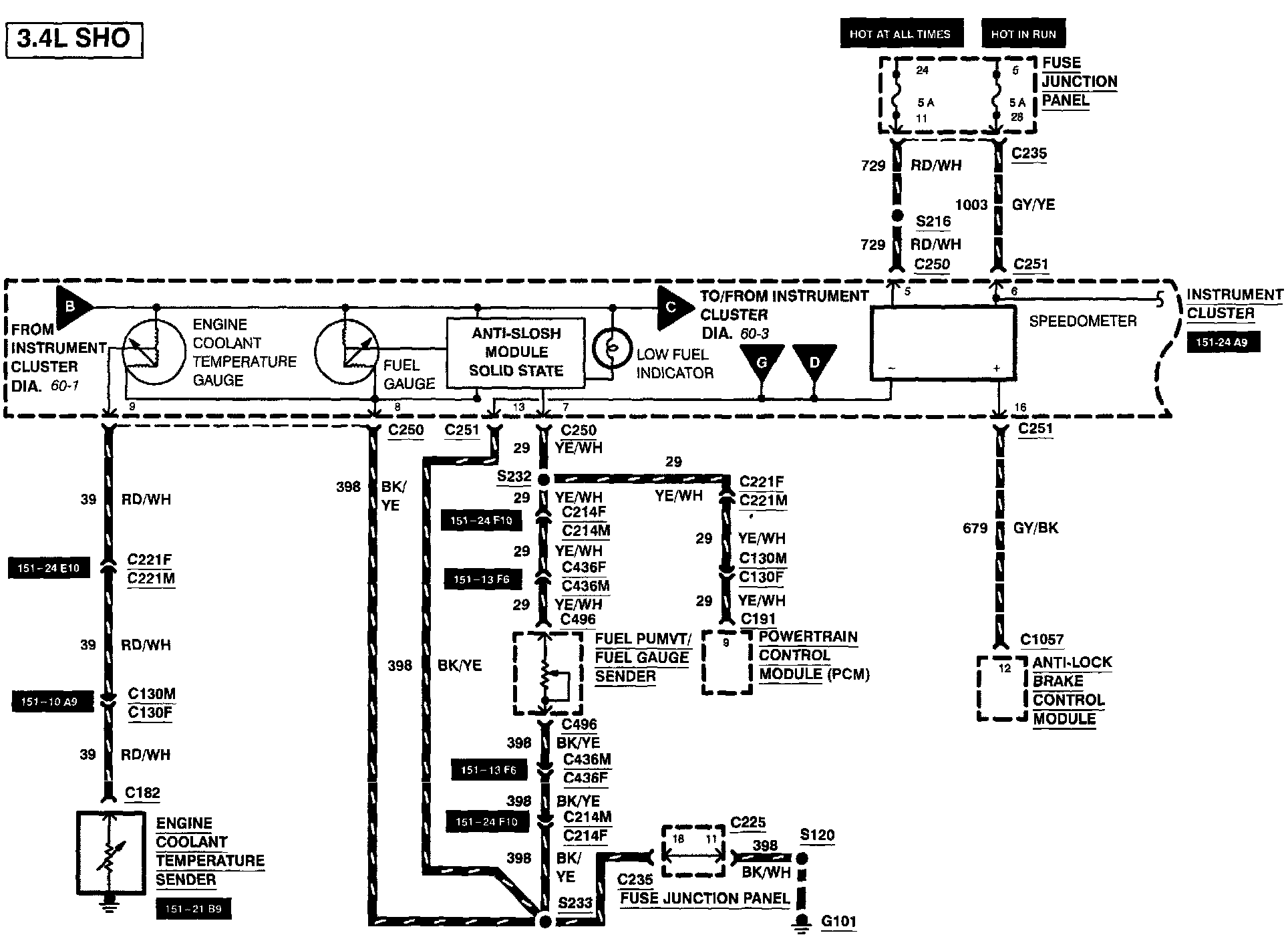

Diagram 60-4:

Anti-Slosh Module Solid State
Engine Coolant Temperature Gauge
Fuse 24
Fuse 5
Fuel Gauge
Fuse Junction Panel
Fuel Pump/Fuel Gauge Sender
Low Fuel Indicator
speedometer

Diagram 60-5:

Air Bag Indicator
Anti-Lock Brake Indicator
Cruise Set Indicator
Fuse 11
Fuse Junction Panel
Generator/Battery Indicator
High Beam Indicator

Diagram 60-6:

Anti-Theft Indicator
Five Back Light Illumination Lamps
Fuse 2
Fuse Junction Panel
Head Lamp Switch
Left Turn Indicator
Passive Anti-Theft System Module
Pulse Width Dimming Module
Remote Anti-Theft Personality Module
Right Turn Indicator
