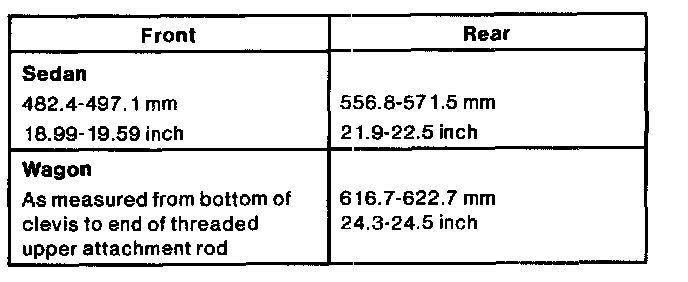

Shock Absorber Length Overall Specification

NOTE: These lengths represent the free extended lengths of shock absorbers, The shock maximum extended length is approximately 31.75 mm (1.25 inch) longer, due to internal coil springs, which can press as the shock absorber travels in the rebound direction.

CAUTION: If the combination dust shield/jounce bumper has been removed from the shock absorber, care must be taken to avoid excessive bottoming of the rod during the compression stroke to avoid internal damage.

Place the shock absorber right side up in a vise. Hand stroke the shock absorber as fast as possible using as much travel as possible. Action should become smooth and uniform throughout each stroke. Higher resistance on extension than can compression is normal. The following conditions are abnormal:
- a lag or skip at reversal of travel near mid-stroke when shock absorber is properly primed and in the installed position
- seizing
- noise, other than a faint swish, such as a clicking upon fast stroke reversal
- excessive fluid leakage
- with rod fully extended, any lateral motion of rod in relation to outer can

If shock absorber action remains erratic after purging air, install a new shock absorber, replacing only the damaged unit. Shock absorbers are not to be replaced as sets.
