Heater Outlet Floor

REMOVAL
1. Remove rear seat air flow duct.

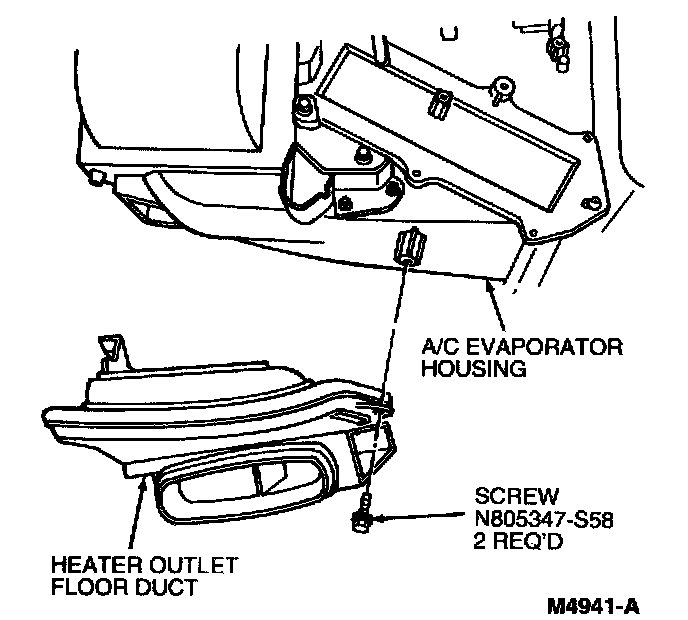

2. Remove two screws retaining heater outlet floor duct to A/C evaporator housing assembly just below heater air plenum chamber.
3. Remove heater outlet floor duct from vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
