Rocker Arm Assembly: Service and Repair

Removal
1. Remove upper intake manifold and valve covers.
2. Remove rocker arm seat retaining bolt of rocker arm to be replaced.

3. NOTE: Rocker arms should be installed in their original location and position during reassembly.

Remove rocker arms. If more than one rocker arm is to be removed, identify rocker arms location.


Installation

1. CAUTION: Aluminum components gouge easily which may cause gasket leaks. Always use care when scraping aluminum gasket surfaces.

NOTE: Lightly oil all retaining bolt and stud bolt threads with Motorcraft Super Premium 5W30 Motor Oil XO-5W30-QSP or equivalent meeting Ford specification WSS-M2C153-G before installation except those specifying special sealant.

Clean mating gasket surfaces of lower intake manifold and upper intake manifold. After scraping, carefully remove any gasket particles to prevent them from entering lower intake manifold. Use Metal Surface Cleaner F4AZ-19A536-RA or equivalent meeting Ford specification WSE-M513392-A to remove old silicone sealant.

2. NOTE: Rocker arm seats must be fully seated into cylinder head and push rod must be fully seated in rocker arm and valve tappet sockets prior to final tightening.

Lubricate push rods and rocker arms with Engine Assembly Lubricant D9AZ-19579-D or equivalent meeting Ford specification ESR-M99C80-A.
3. Install rocker arms into position with push rods and snug retaining bolt. Rotate crankshaft to position camshaft lobes straight down and away from rocker arm.

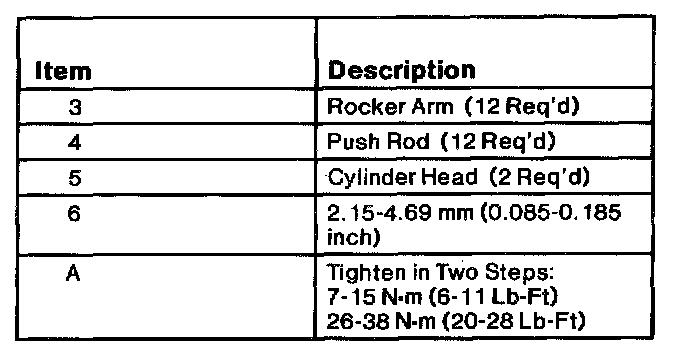

Rocker Arm - RH Shown, LH Similar 9 (2 Of 2):

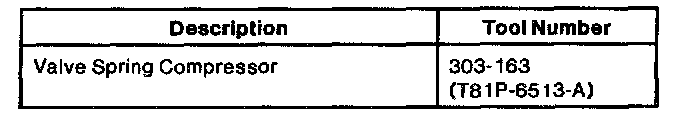

Special Tools:

- Tighten rocker arm seats into cylinder head retaining bolt to 7-15 Nm (6-11 ft. lbs.).
- Final-tighten bolt to 26-38 Nm (20-28 ft. lbs.) in any position.
4. Install valve covers and upper intake manifold.
