Wagon

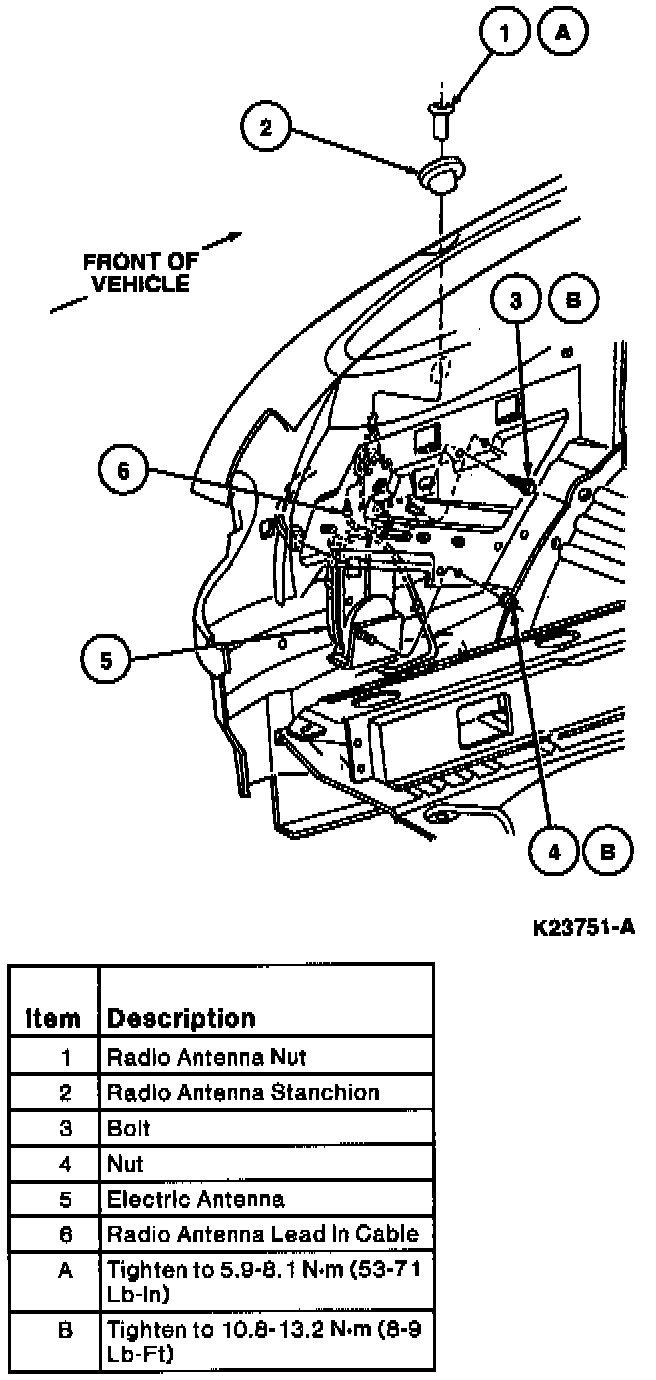

REMOVAL
1. Remove cover and spare tire.
2. Remove radio antenna nut and radio antenna stanchion from electric antenna.
3. Remove one nut and one bolt retaining electric antenna inside luggage compartment.
4. Disconnect wire harness connector and radio antenna lead in cable from electric antenna and remove electric antenna from vehicle.

INSTALLATION
1. Connect wire harness connector and radio antenna lead in cable to electric antenna.
2. Install electric antenna with retaining bolt and nut.

NOTE: Do not tighten nuts at this time.

3. Install radio antenna stanchion and radio antenna nut to electric antenna. Tighten radio antenna nut to 5.9-8.1 N.m (53-71 Lb-In).
4. Tighten previously installed bolt and nut to 10.8-13.2 N.m (8-9 Lb-Ft).
5. Install spare tire and cover.
