Suspension Control Module

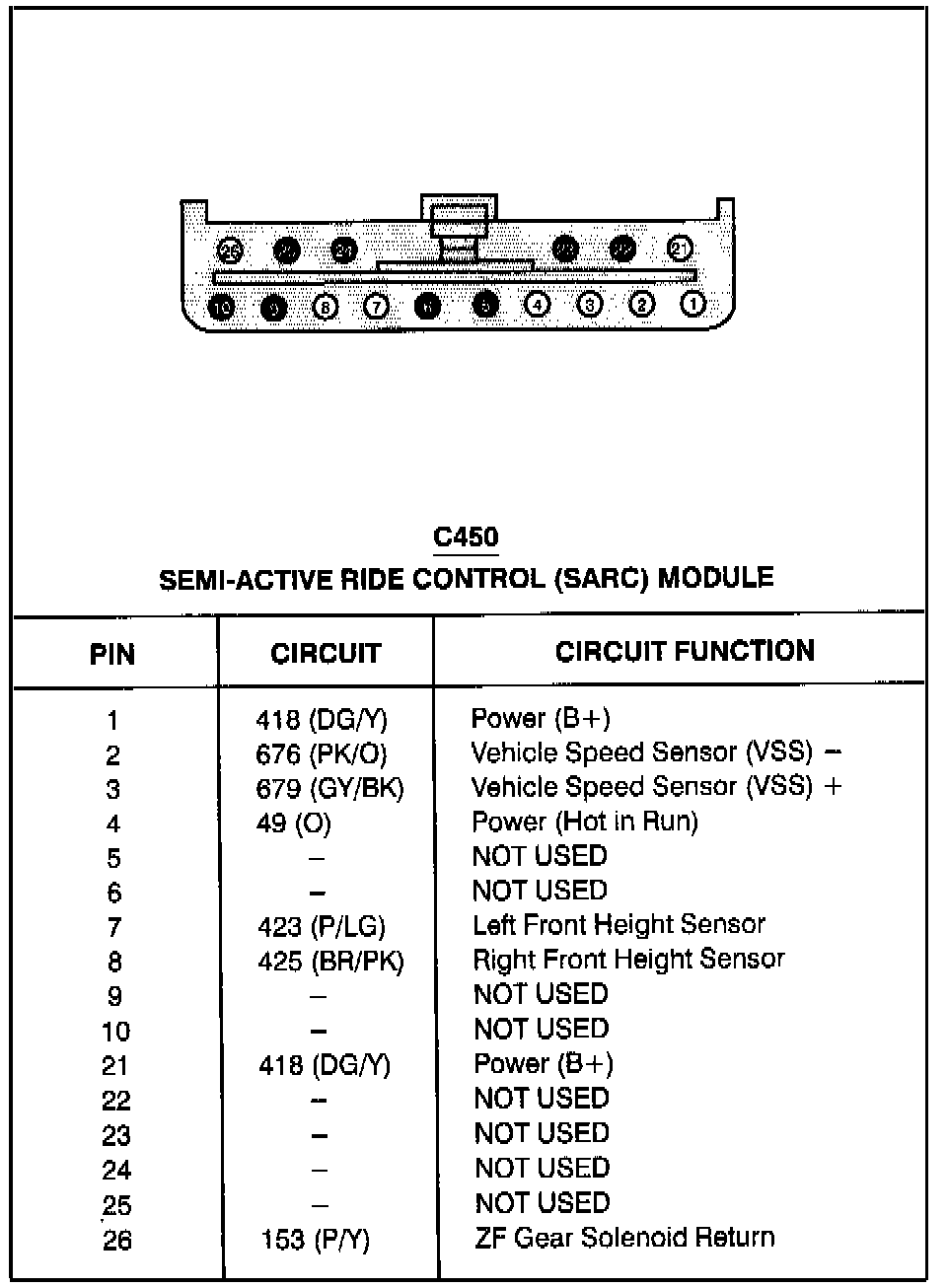

Semi-Active Ride Control Module (C450):

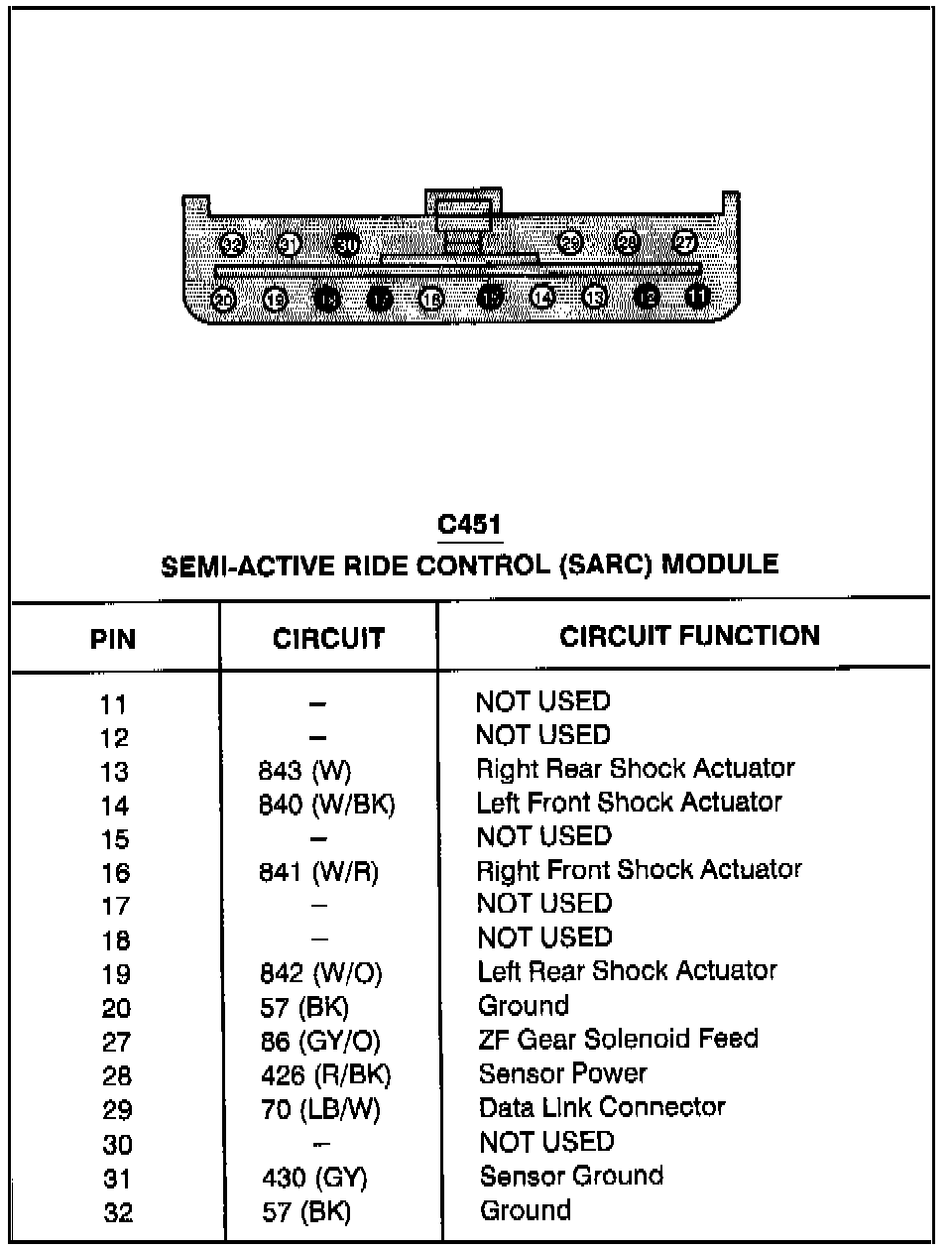

Semi-Active Ride Control Module (C451):
