Parking Lamp: Service and Repair

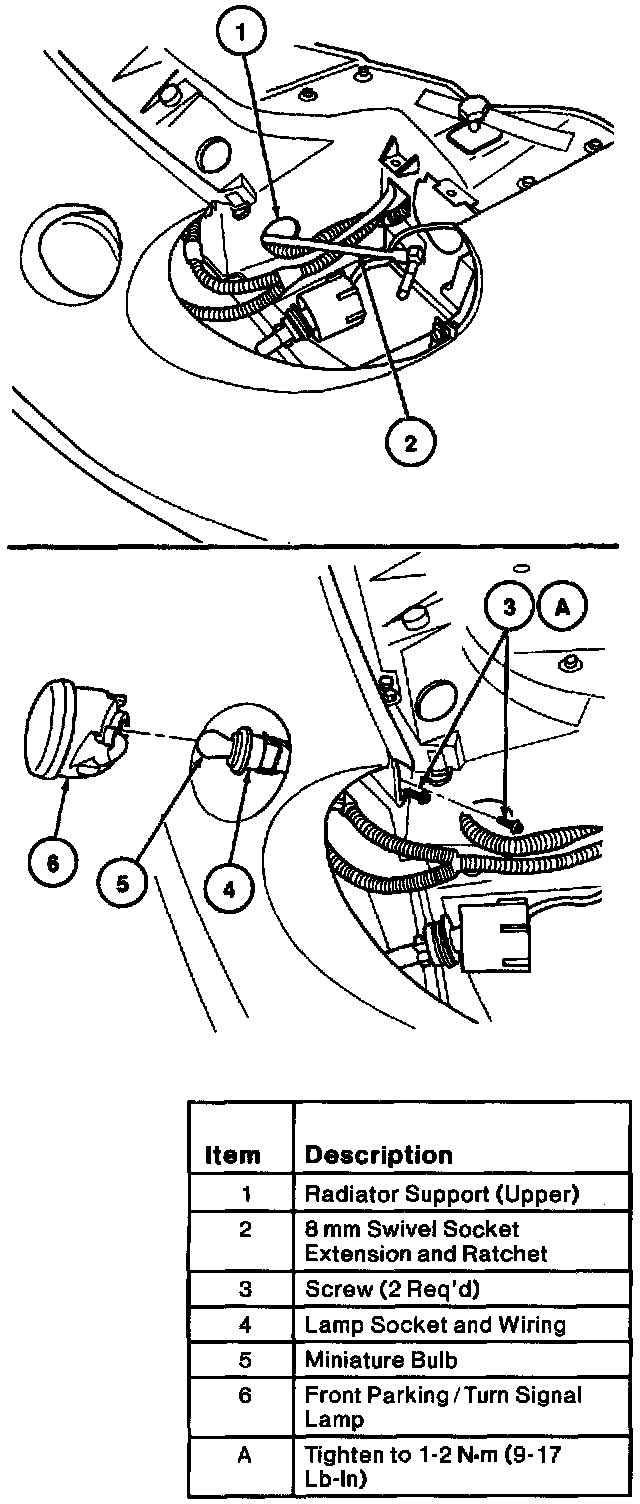

REMOVAL
1. Remove headlamp.
2. Turn lamp socket and wiring assembly 1/2 turn counterclockwise and remove from parking/turn signal lamp housing.
3. Remove screw from park/turn signal housing.
4. Using 1/4 inch drive socket extension and swivel, insert tool through two access holes in upper radiator support. Remove screws from park/turn signal lamp housing.
5. Remove parking/turn signal lamp from vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
