Marker Lamp: Service and Repair

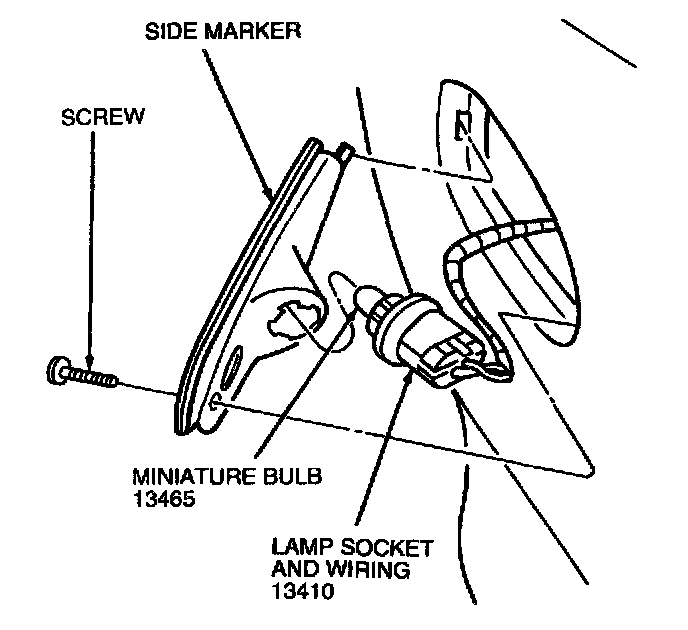

REMOVAL
1. Remove screw retaining side marker lamp.
2. Starting at end with screw hole, pull side marker lamp out and remove.
3. Grasp side marker lamp socket and wiring connector, turn 1/2 turn counterclockwise and disconnect.
4. Pull miniature bulb from lamp socket and wiring.

INSTALLATION
1. Follow removal procedure in reverse order.
