FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1998 >> Taurus V6-182 3.0L VIN 1 FI Flex Fuel >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> D: Fuel Level Reads Inaccurately-Flex Fuel (FFV) Only

D: Fuel Level Reads Inaccurately-Flex Fuel (FFV) Only

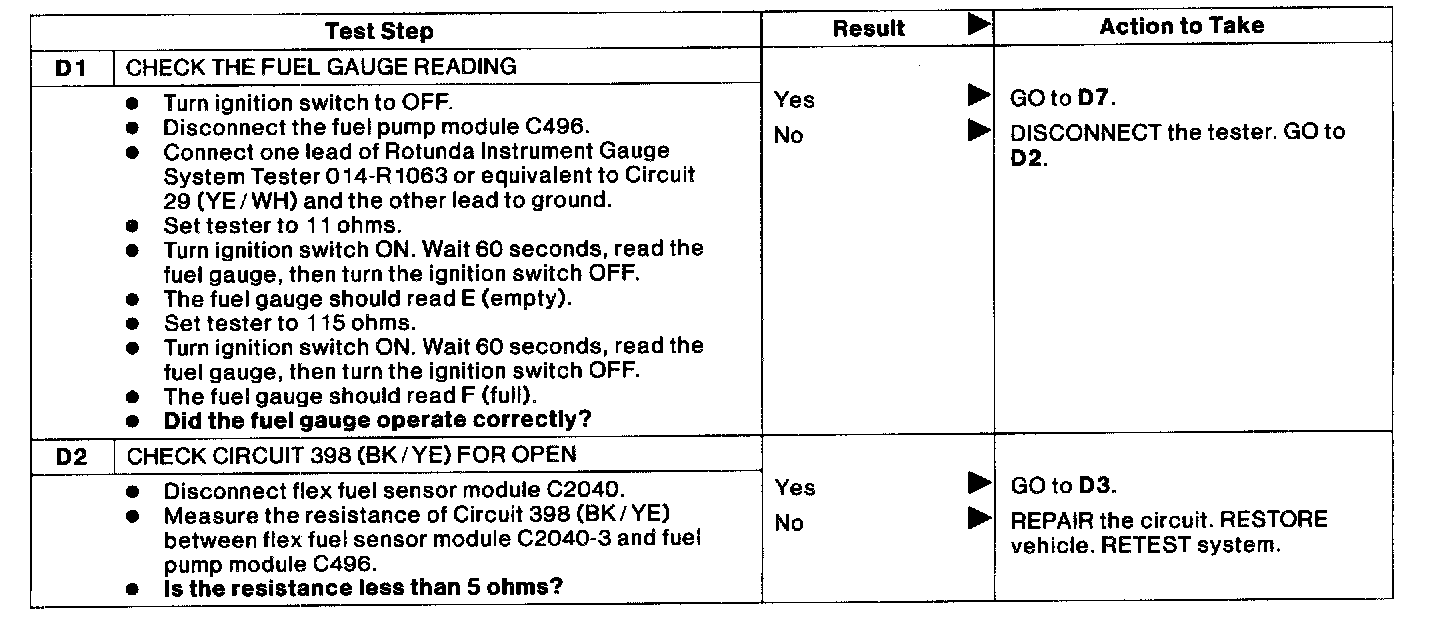

D1 - D2:

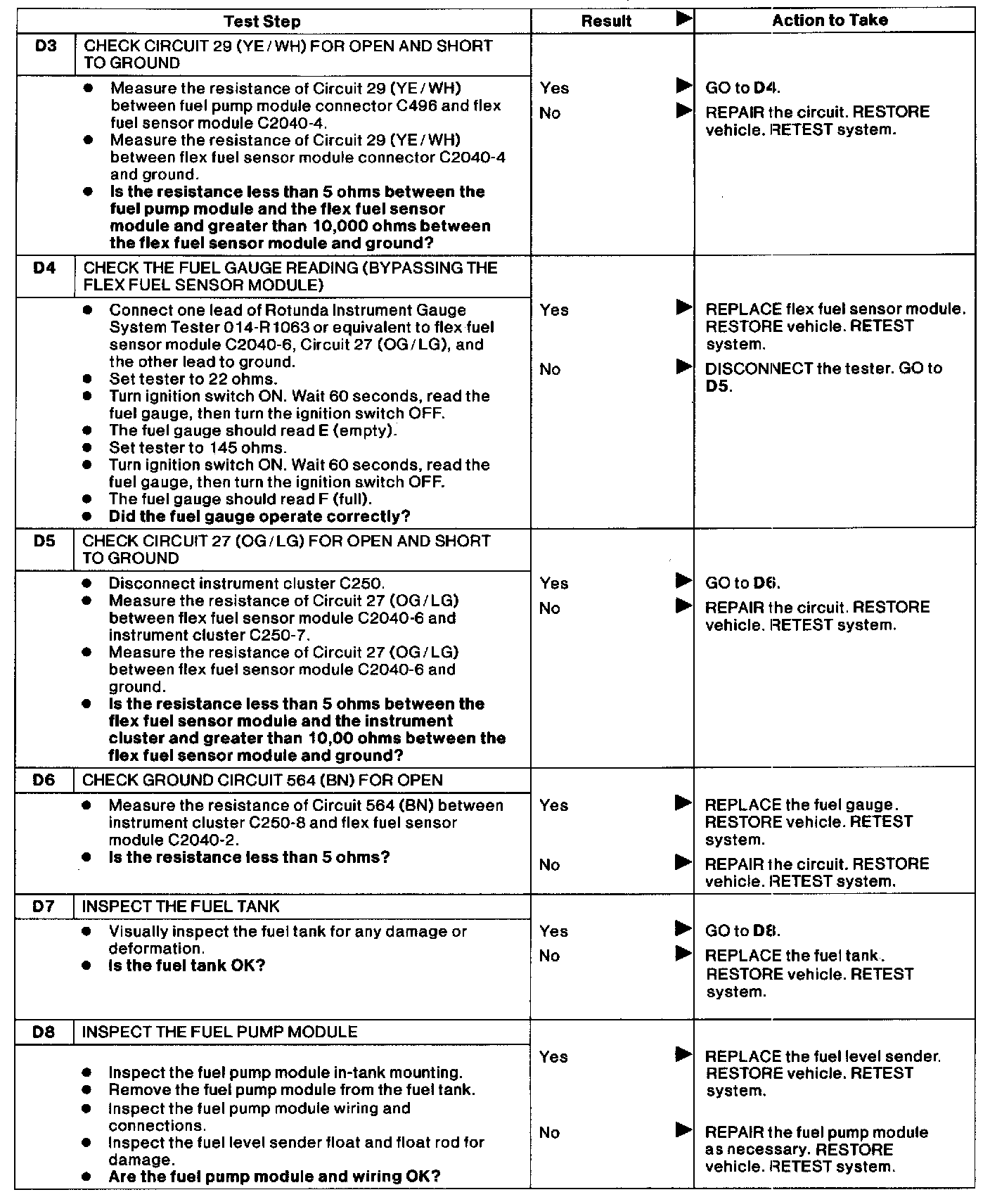

D3 - D8:
