Rear Seat Air Flow

REMOVAL
1. Remove front seats.
2. Pull up on front door scuff plates to disengage clip retainers from rocker panels and remove front door scuff plates.
3. Pull floor carpet rearward enough to gain access to push pins on rear seat airflow duct.

NOTE: If equipped with center console, remove console.

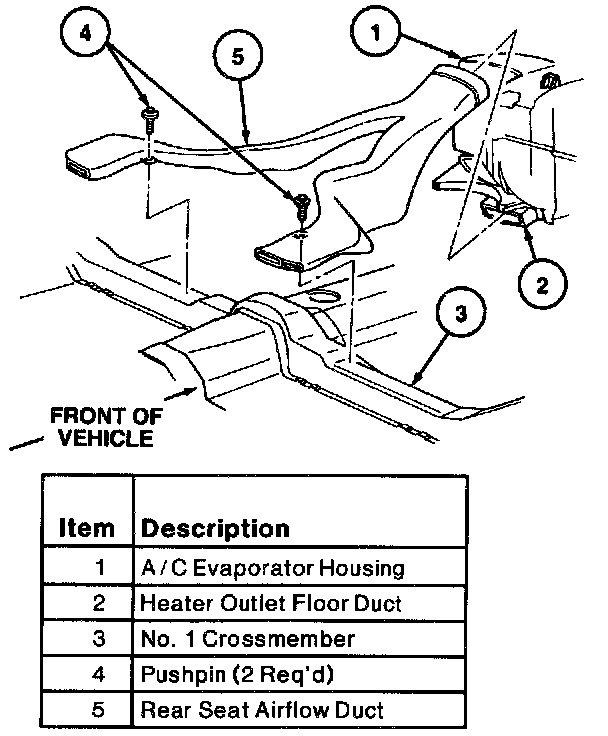

4. Remove two push pins which attach rear seat airflow duct to No. 1 crossmember.
5. Slide rear seat airflow duct rearward to disengage from rear seat airflow duct and remove from vehicle.

INSTALLATION







1. Follow removal procedure in reverse order.
