Drive Belt Tensioner: Service and Repair

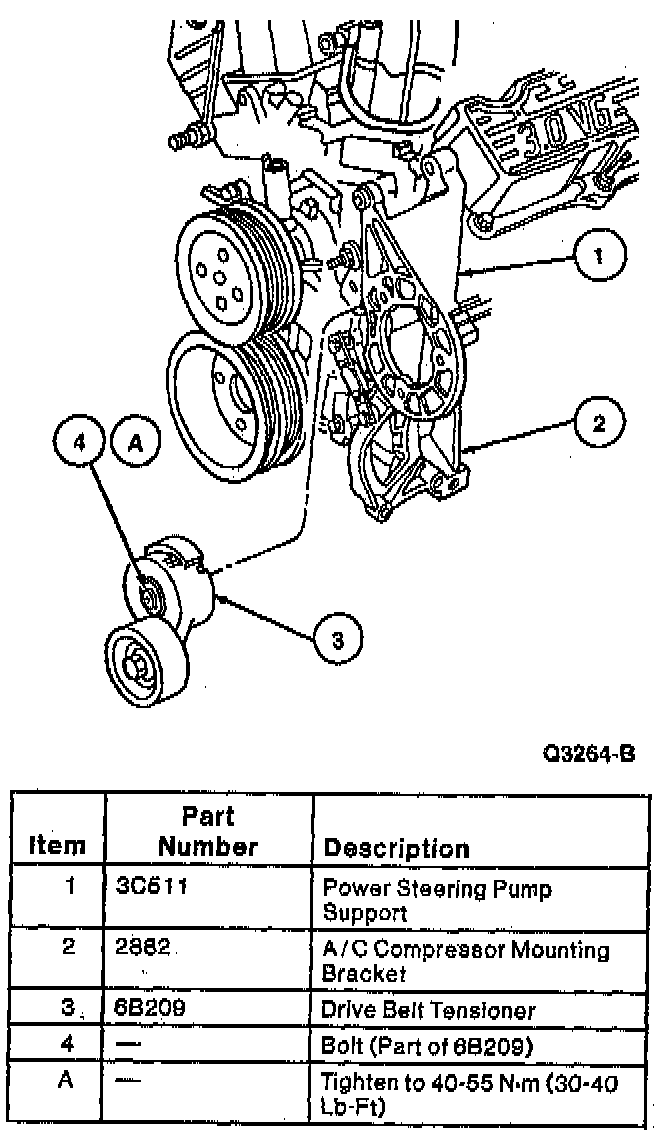

REMOVAL
1. Remove serpentine drive belt.
2. Remove drive belt tensioner retaining bolt from power steering pump support.
3. Remove drive belt tensioner.

INSTALLATION
1. Follow the removal procedure in reverse order.





2. Tighten drive belt tensioner retaining bolt to 40-55 Nm (30-40 ft. lbs.).
