Package Tray Speaker

REMOVAL

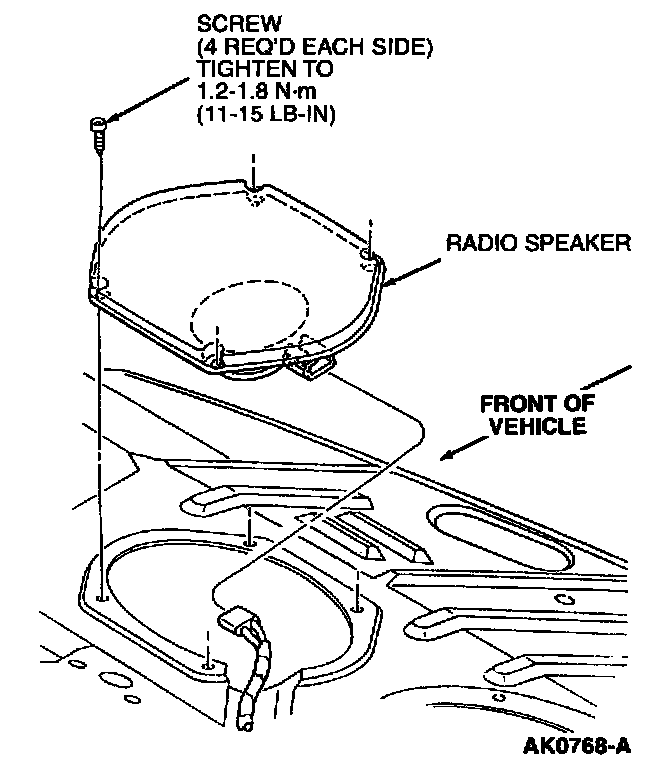

1. Remove package tray trim panel.
2. Remove four radio speaker retaining screws.
3. Lift radio speaker and disconnect radio speaker wire. Remove radio speakers.







INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten radio speaker to 1.2-1.8 Nm (11-15 Lb-In).
