Liftgate

REMOVAL
1. Remove liftgate finish panel.

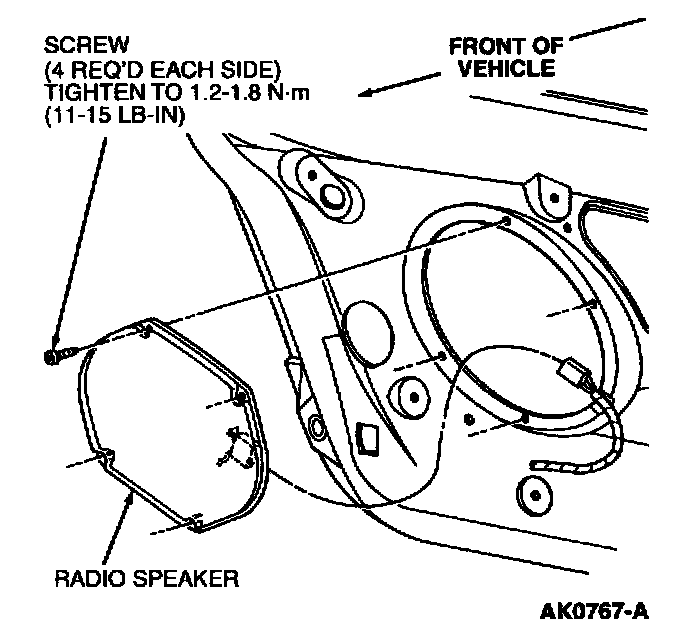

2. Remove four screws retaining radio speaker to liftgate.
3. Pull radio speaker away from liftgate far enough to disconnect radio speaker wires and remove radio speaker.







INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten radio speaker retaining screws to 1.2-1.8 Nm (11-15 Lb-In).
