Front Door - Sail

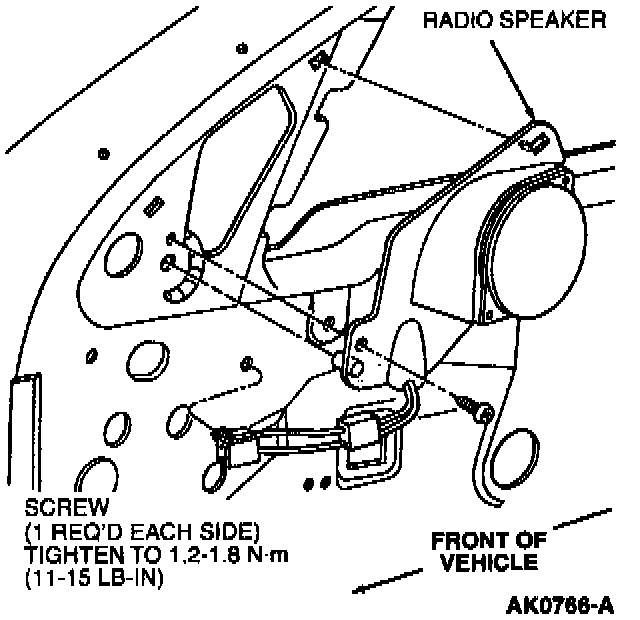

REMOVAL
1. Remove sail trim panel.
2. Remove screw retaining radio speaker to door.
3. Disconnect radio speaker wire and remove radio speaker.







INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten radio speaker retaining screw to 1.2-1.8 Nm (11-15 Lb-In).
