Front Door

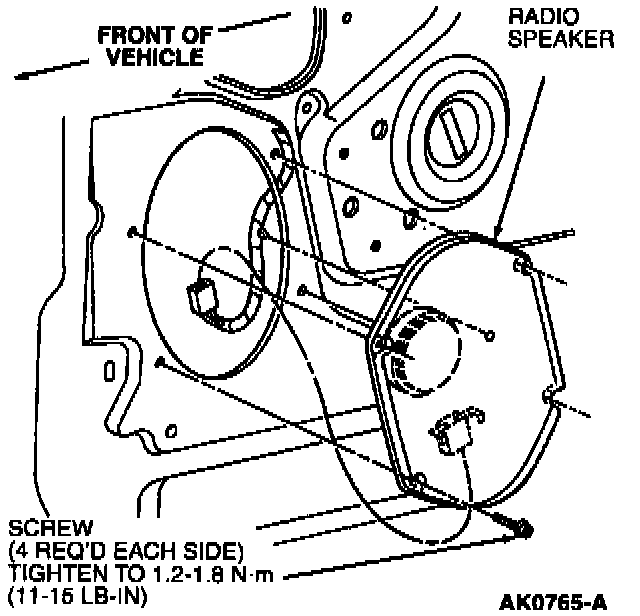

REMOVAL
1. Remove front door trim panel.
2. Remove four radio speaker retaining screws.
3. Pull radio speaker away from door far enough to disconnect radio speaker wires and remove radio speaker.







INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten radio speaker retaining screws to 1.2-1.8 Nm (11-15 Lb-In).
