Mobile Phone System

The mobile phone system consists of these major components:
- headliner mounted mobile telephone microphone with remote multi-function button
- mobile telephone power cable with multi-function control antenna cable
- glass mounted mobile telephone antenna
- Portable Support Electronics (PSE) module
- portable cellular phone






PORTABLE CELLULAR PHONE FEATURES
The low cost portable cellular phone system features consist of the following:
- Hands-free operation.
- Radio muting while phone is in use.
- Speed dialing capability for numbers stored in portable phone.
- Radio volume control used to adjust phone volume in hands-free operation.

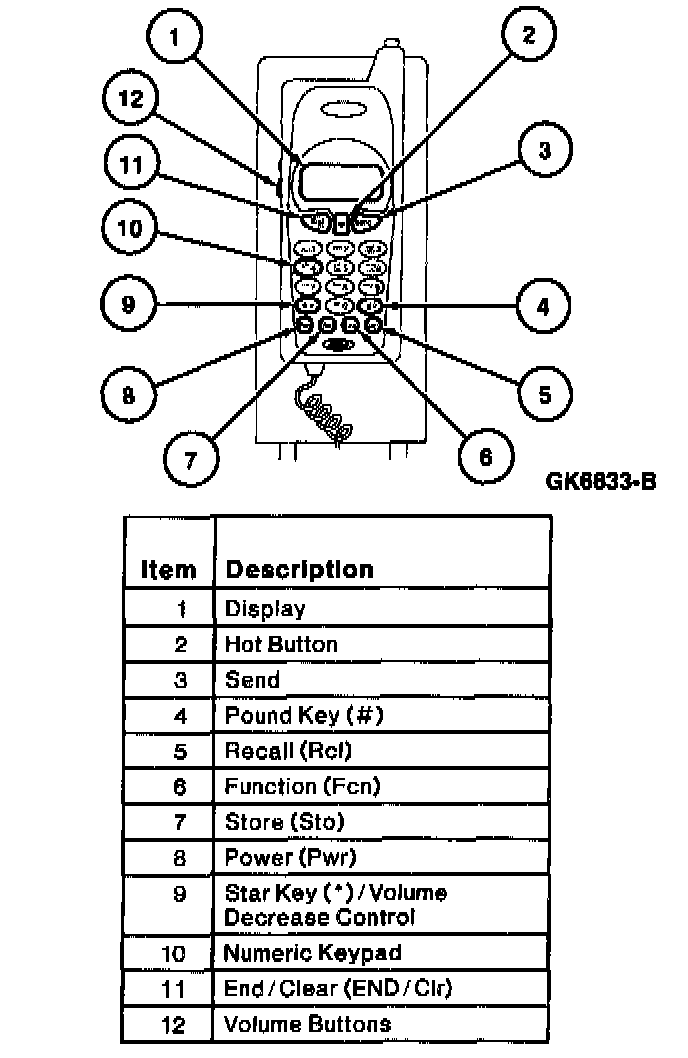

Portable Cellular Phone (Early Production):

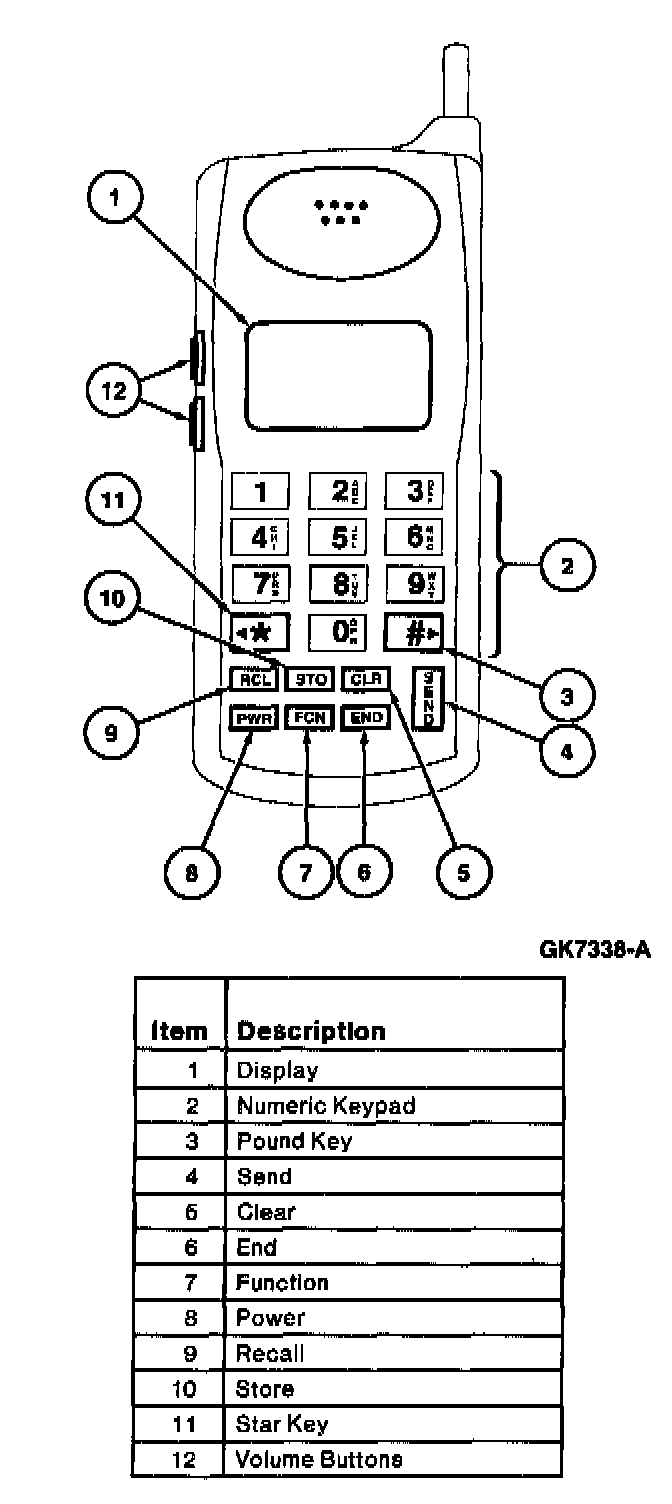

Portable Cellular Phone (Late Production):

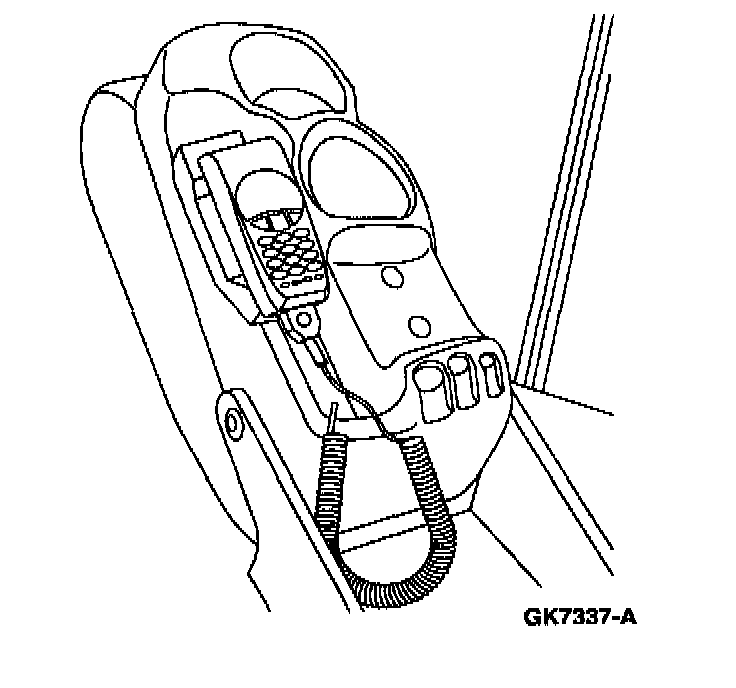

PORTABLE CELLULAR PHONE HANDSET

Handset Controls

NOTE: For complete operating instructions, refer to the User's Guide.

Display
Provides a visual indication of dialed numbers and messages, including:

In Use Indicator
Turns on when a call is placed or answered. Turns off when a call is ended.

No SVC Indicator
Turns on when the vehicle has traveled out of range.

Roam Indicator
Turns on when the vehicle is within range of a cellular system other than its home system.

Numeric Keypad
Use to enter phone numbers being called.

Pound Key (#)
Use with other keys to perform specific operations.

Store (Sto)
Use to store phone numbers in memory.

Clear (Clr)
Press and release to clear the last digit entered. Press and hold to clear the display.

Send
Use to start the call after entering a phone number.

End
Press to terminate the call.

Mobile phone Microphone
Used for hands-free conversation.

Volume -
Press to turn the volume down.

Volume +
Press to turn the volume up.

Power (Pwr)
Turns the power ON and OFF.

Function (Fcn)
Used with other keys for specific user-programmed operations.

Recall (Rcl)
Press to recall and display the numbers stored in memory.

Star Key (<*)
Used with other keys for specific operations.
