Home >> Ford >> 1998 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> Master Window/Door Lock Control Switch >> Coupe

Coupe

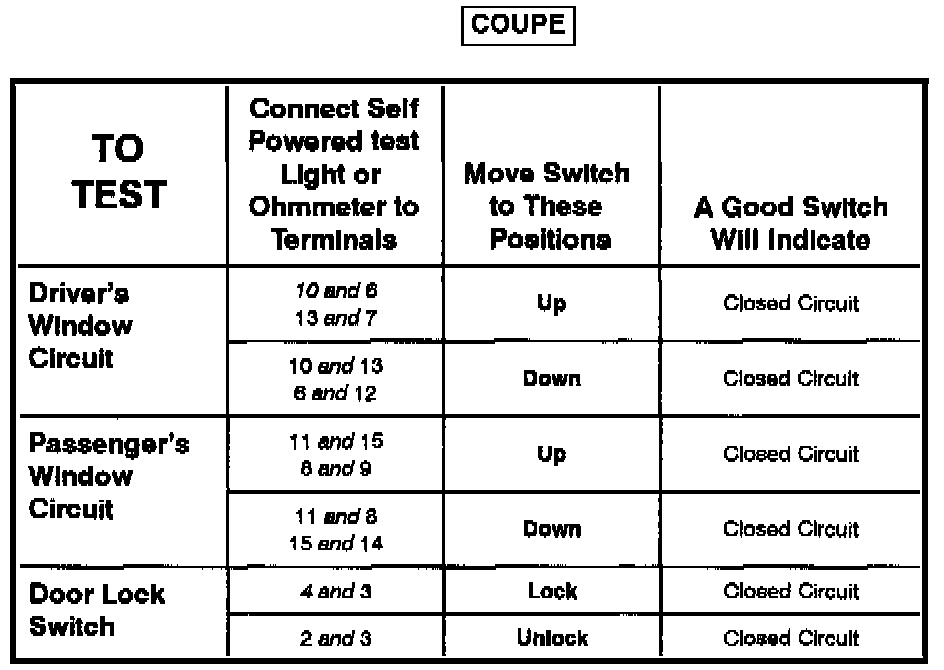

Master Window/Door Lock Control Switch - Component Testing Procedure (Part 1 Of 2) (Coupe):

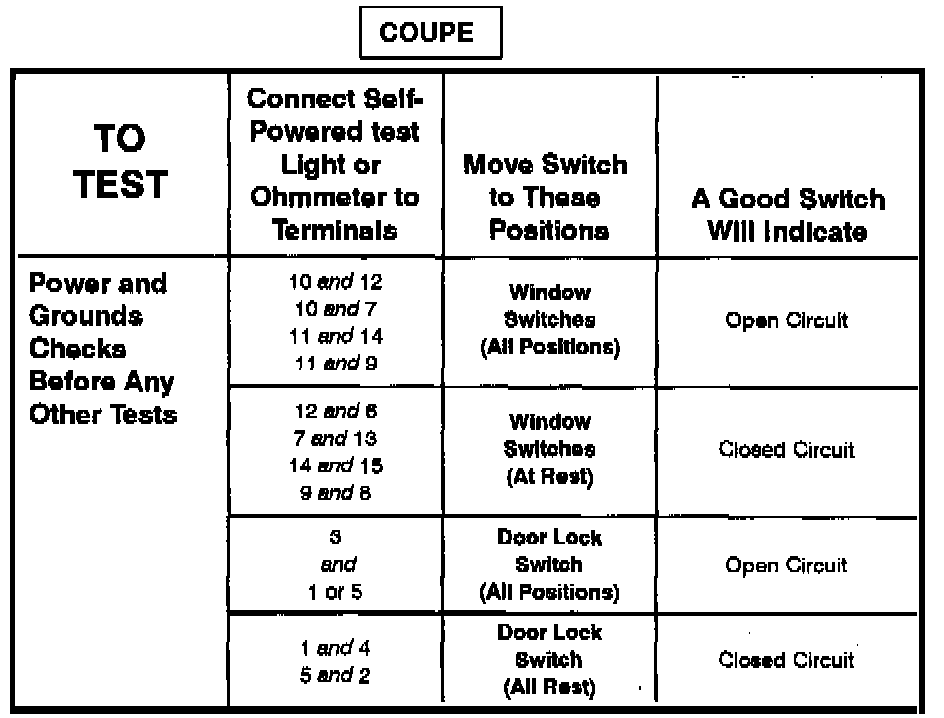

Master Window/Door Lock Control Switch - Component Testing Procedure (Part 2 Of 2) (Coupe):

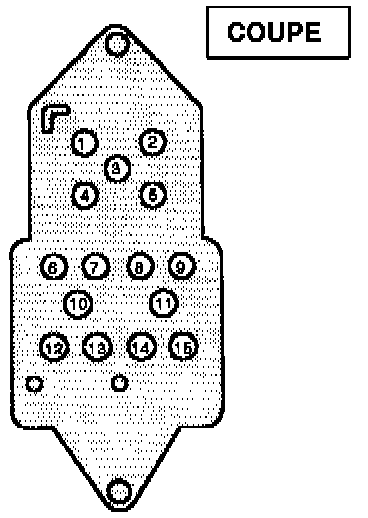

Master Window/Door Lock Control Switch - Terminal Locations (Coupe):

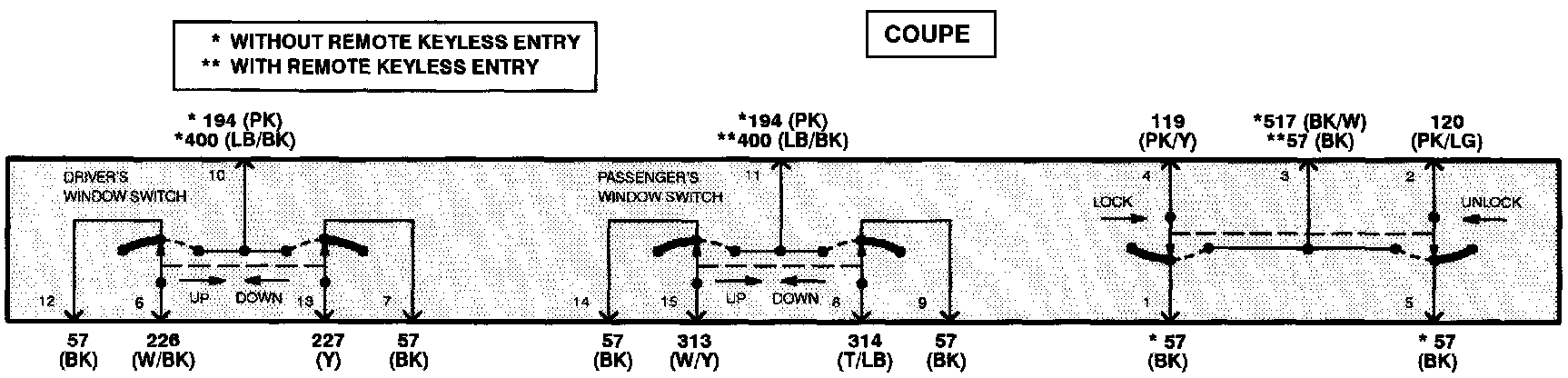

Master Window/Door Lock Control Switch - Schematic (Coupe):
