Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
System Specifications
>>
M/T Technical Data
>>
T45 5-SPD M/T
T45 5-SPD M/T

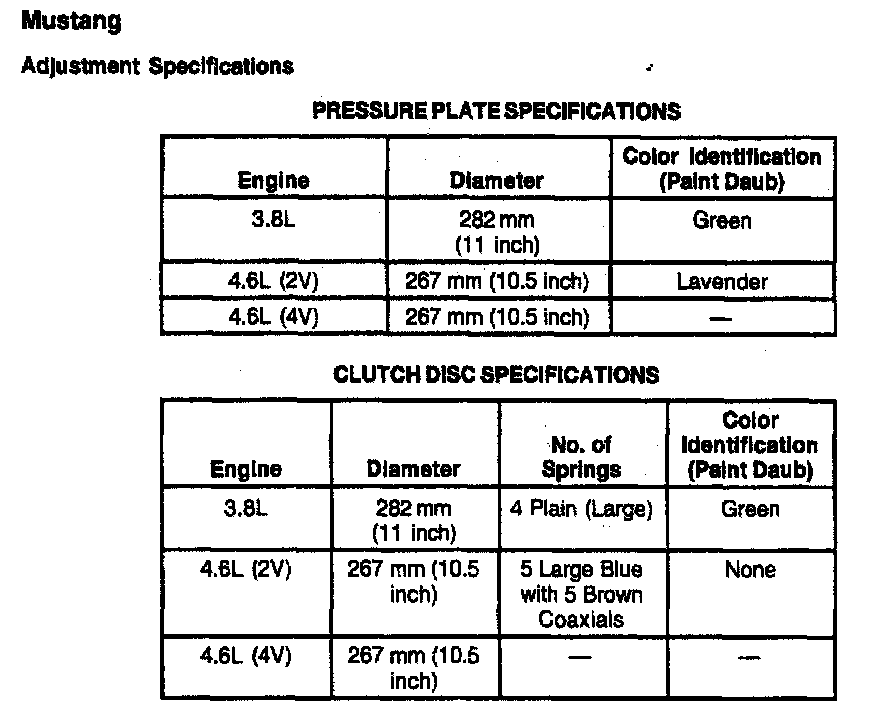

T45 5-spd M/T, Pressure Plate/Clutch Disc (Mustang):

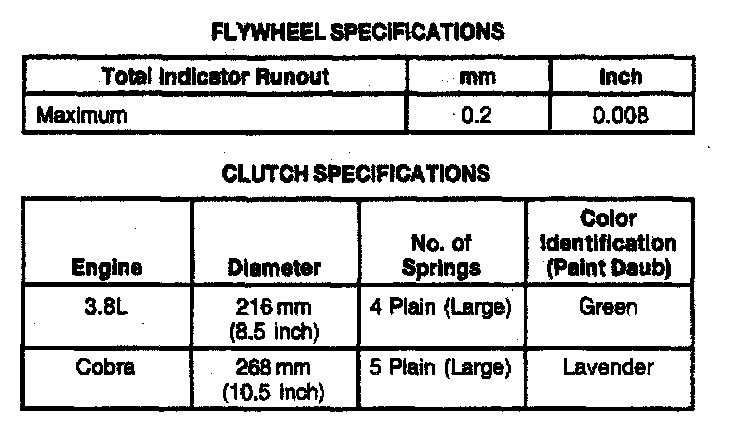

T45 5-spd M/T, Flywheel/Clutch:

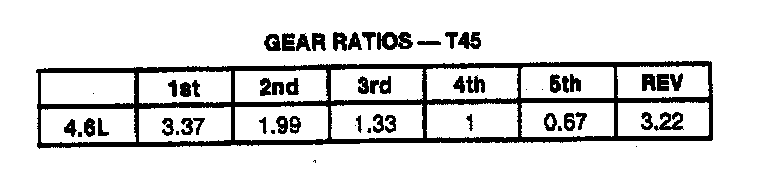

T45 5-spd M/T, Gear Ratios (4.6L):

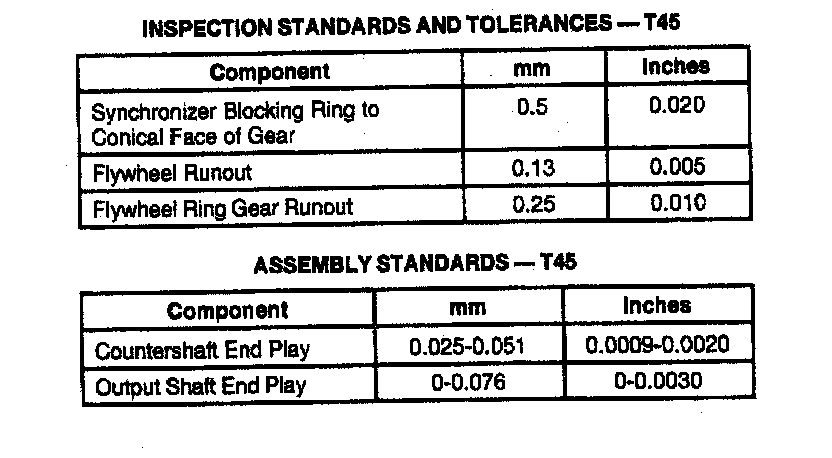

T45 5-spd M/T, Gear Tolerance/Runout/End Play:
