A/C Heater Control Assembly
A/C Heater Control Assembly

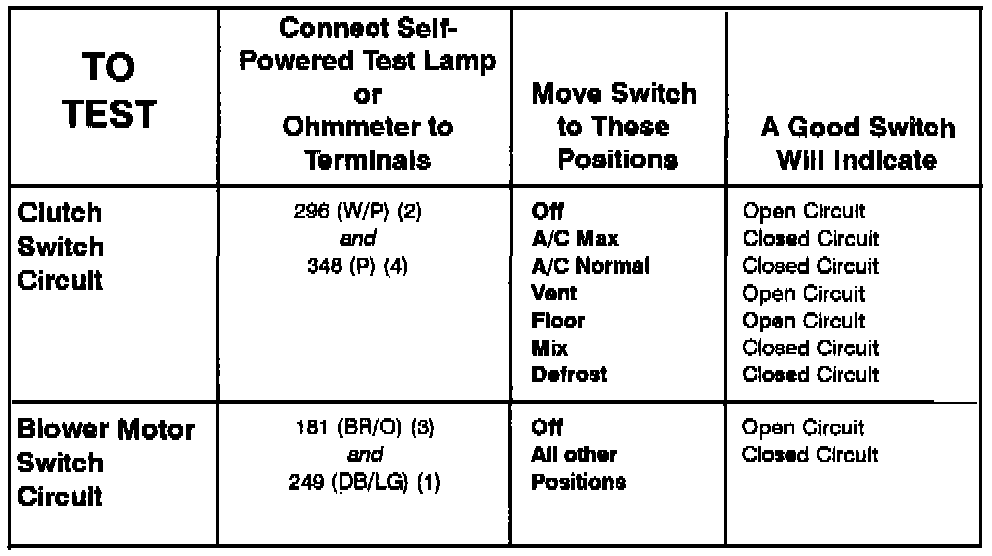

A/C Heater Control Assembly - Component Testing Procedure:

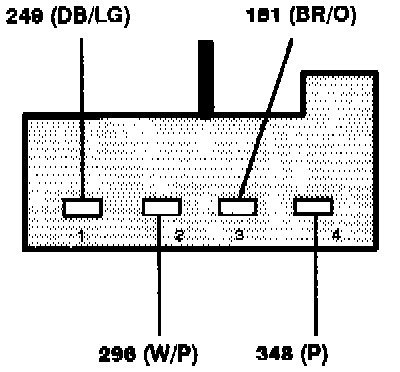

A/C Heater Control Assembly - Terminal Locations:

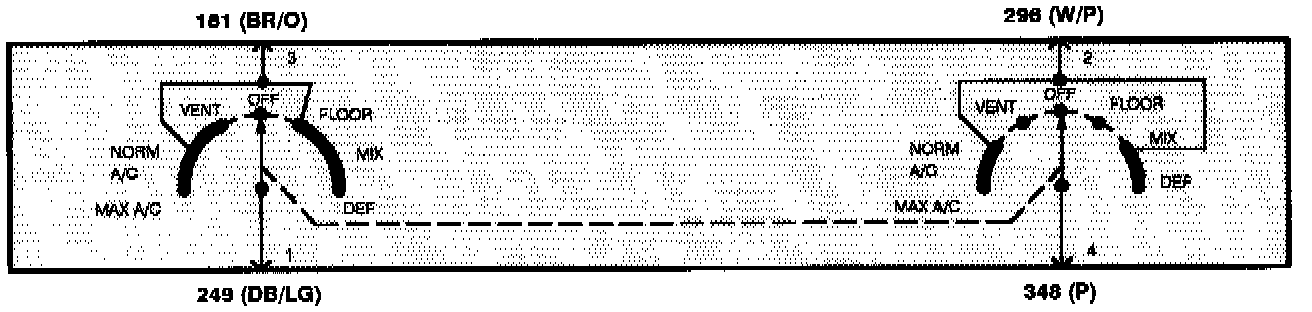

A/C Heater Control Assembly - Schematic:
