Home
>>
Ford
>>
1998
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Alarm Module
>>
Locations
>>
Anti-Theft Control Module
>>
Convertible
Convertible

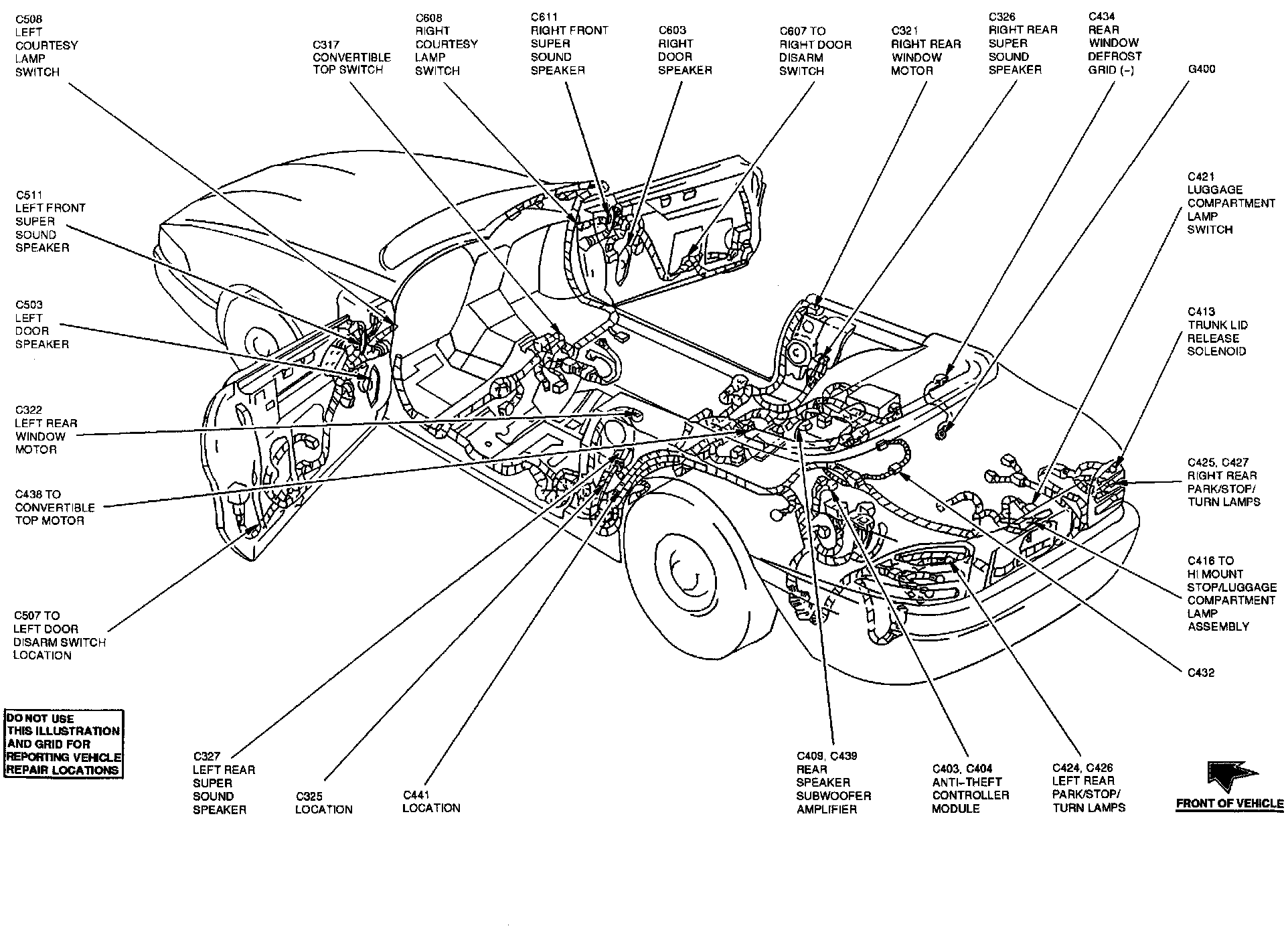

Full Body View (Convertible):
The Anti-Theft Controller Module is located at the LH rear of the trunk, behind trim panel.
