Engine Views

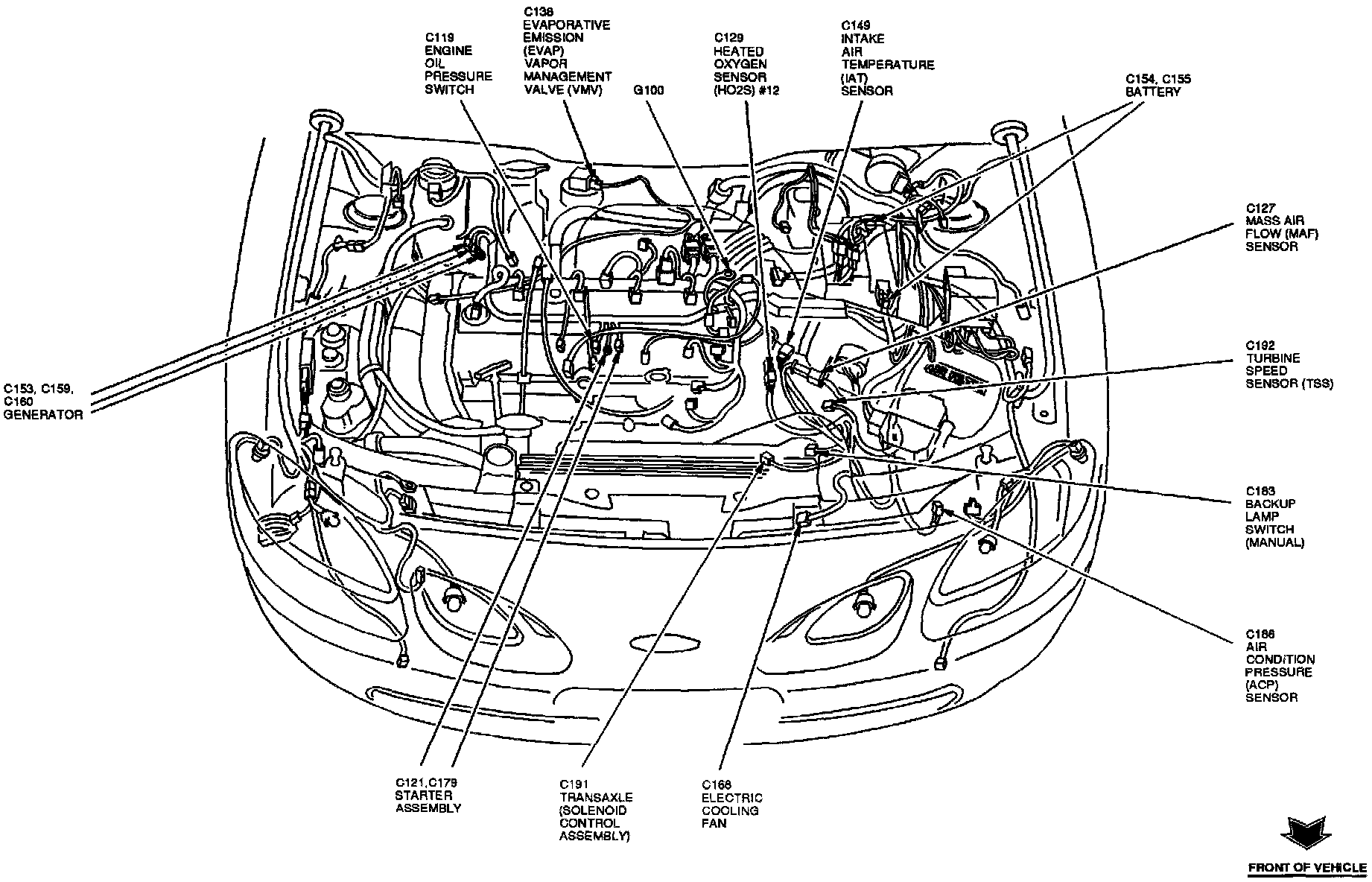

Engine Views:

AIR CONDITION PRESSURE SENSOR
BACKUP LAMP SWITCH
BATTERY
ELECTRIC COOLING FAN
ENGINE OIL PRESSURE SWITCH
EVAPORATIVE EMISSION VAPOR MANAGEMENT VALVE
GENERATOR
HEATED OXYGEN SENSOR #12
INTAKE AIR TEMPERATURE SENSOR
MASS AIR FLOW SENSOR
STARTER ASSEMBLY
TRANSAXLE SOLENOID CONTROL ASSEMBLY
TURBINE SPEED SENSOR

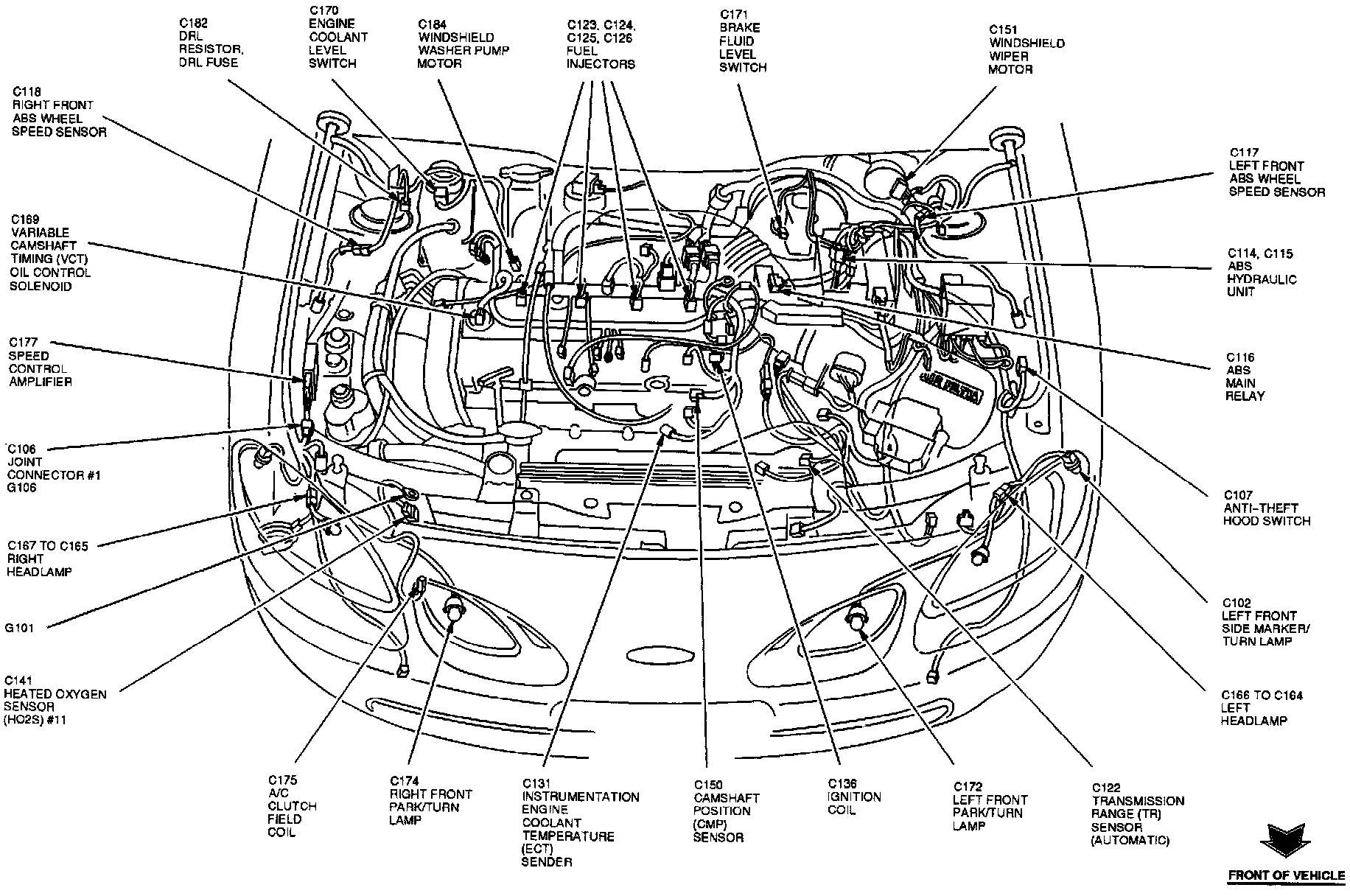

Engine Views:

A/C CLUTCH FIELD COIL
ANTI-LOCK BRAKE SYSTEM HYDRAULIC UNIT
ANTI-LOCK BRAKE SYSTEM MAIN RELAY
ANTI-THEFT HOOD SWITCH
BRAKE FLUID LEVEL SWITCH
CAMSHAFT POSITION SENSOR
DAYTIME RUNNING LAMP FUSE
DAYTIME RUNNING LAMP RESISTOR
ENGINE COOLANT LEVEL SWITCH
FUEL INJECTORS
HEATED OXYGEN SENSOR #11
IGNITION COIL
INSTRUMENTATION ENGINE COOLANT TEMPERATURE SENDER
JOINT CONNECTOR #1
LEFT FRONT ANTI-LOCK BRAKE SYSTEM WHEEL SPEED SENSOR
LEFT FRONT PARK/TURN LAMP
LEFT FRONT SIDE MARKER/TURN LAMP
LEFT HEADLAMP
RIGHT FRONT ANTI-LOCK BRAKE SYSTEM WHEEL SPEED SENSOR
RIGHT FRONT PARK/TURN LAMP
RIGHT HEADLAMP
SPEED CONTROL AMPLIFIER
TRANSMISSION RANGE SENSOR
VARIABLE CAMSHAFT TIMING OIL CONTROL SOLENOID
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR

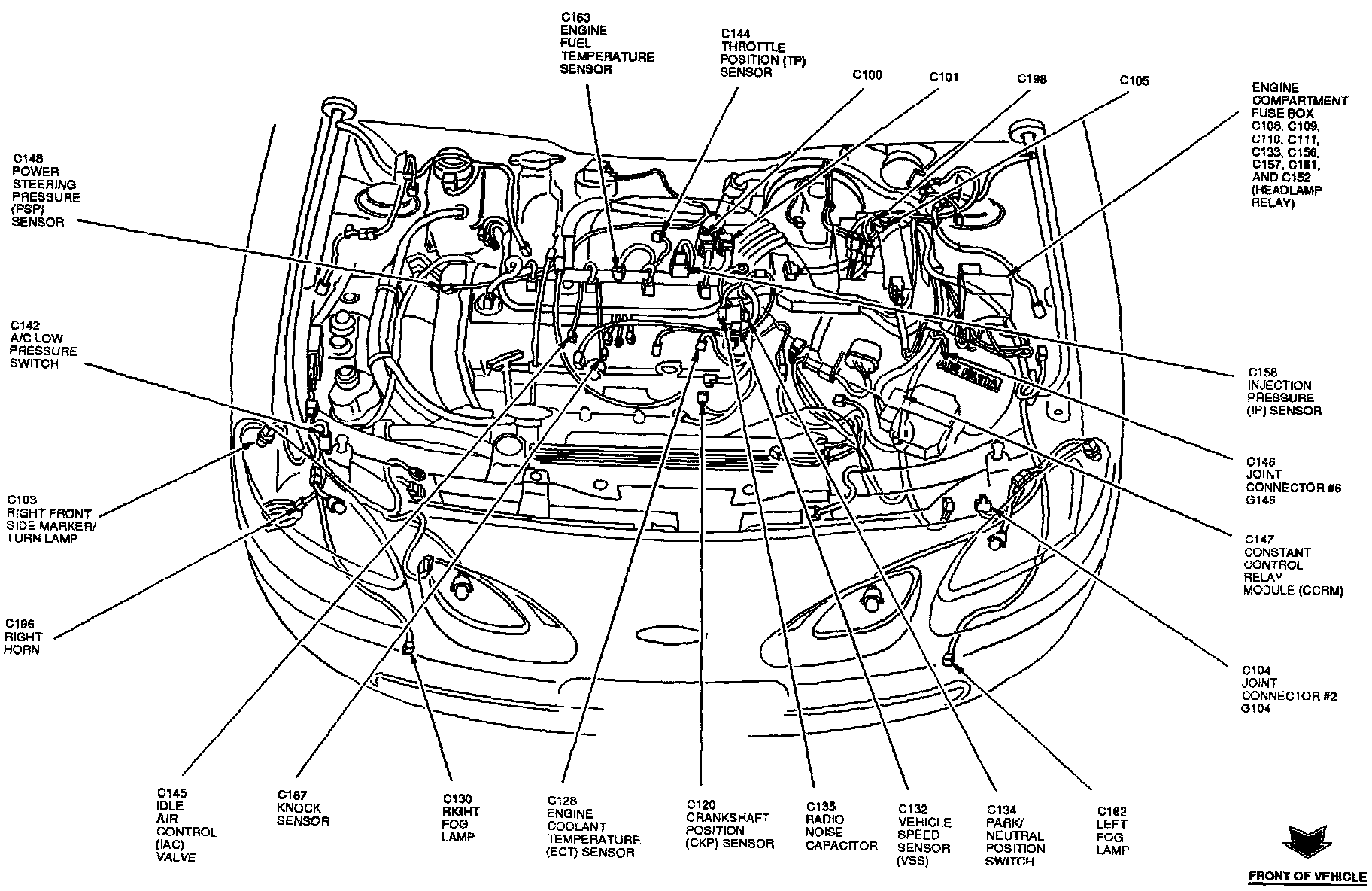

Engine Views:

A/C LOW PRESSURE SWITCH
CONSTANT CONTROL RELAY MODULE
CRANKSHAFT POSITION SENSOR
ENGINE COMPARTMENT FUSE BOX
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE FUEL TEMPERATURE SENSOR
HEADLAMP RELAY
IDLE AIR CONTROL VALVE
INJECTION PRESSURE SENSOR
JOINT CONNECTOR #2
JOINT CONNECTOR #6
KNOCK SENSOR
LEFT FOG LAMP
PARK/NEUTRAL POSITION SWITCH
POWER STEERING PRESSURE SENSOR
RADIO NOISE CAPACITOR
RIGHT FOG LAMP
RIGHT FRONT SIDE MARKER/TURN LAMP
RIGHT HORN
THROTTLE POSITION SENSOR
VEHICLE SPEED SENSOR
