Control Assembly: Testing and Inspection

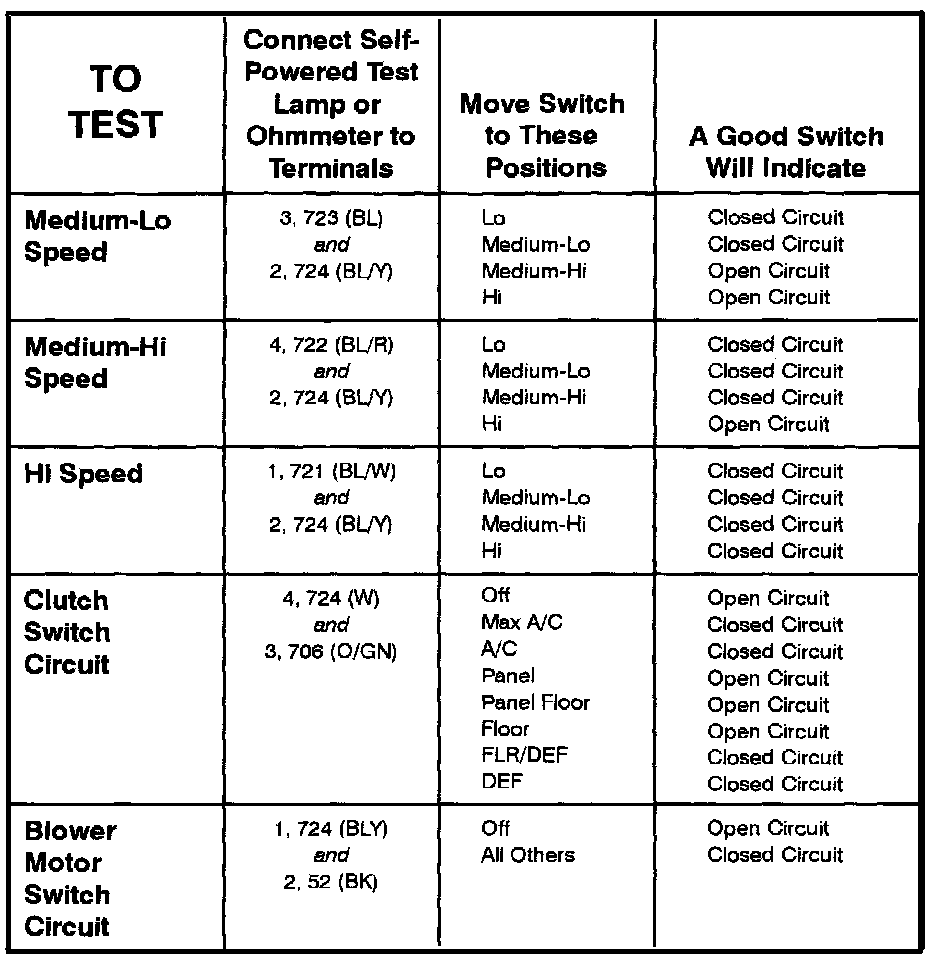

A/C-/Heater Control Assembly - Component Testing Procedure:

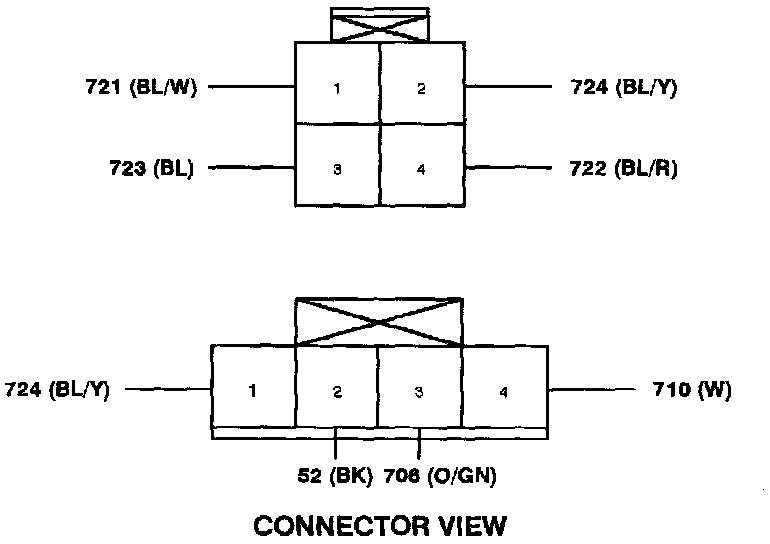

A/C-/Heater Control Assembly - Terminal Locations:




A/C-/Heater Control Assembly - Schematic:
