Intake Manifold

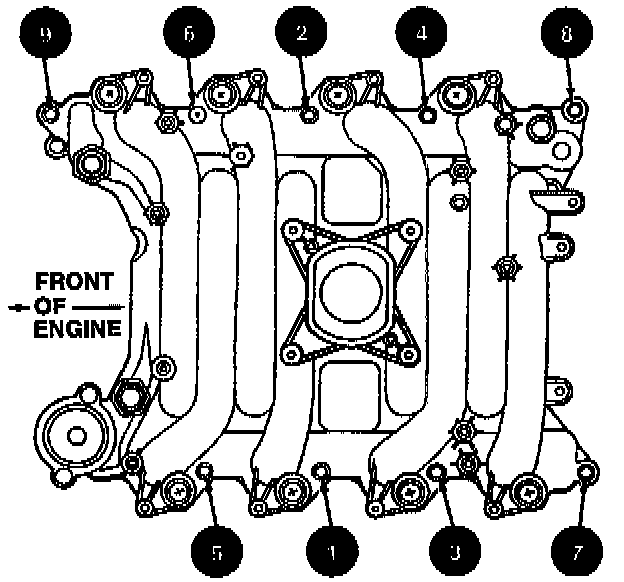

Torque Sequence:
Installation Sequence - Gasoline Engine:
TORQUE SPECIFICATIONS
Intake Manifold
To Cylinder Head Bolt
20-30 Nm (15-22 Ft. Lbs.)
