Driver Door Module

Driver's Door Module (C519):

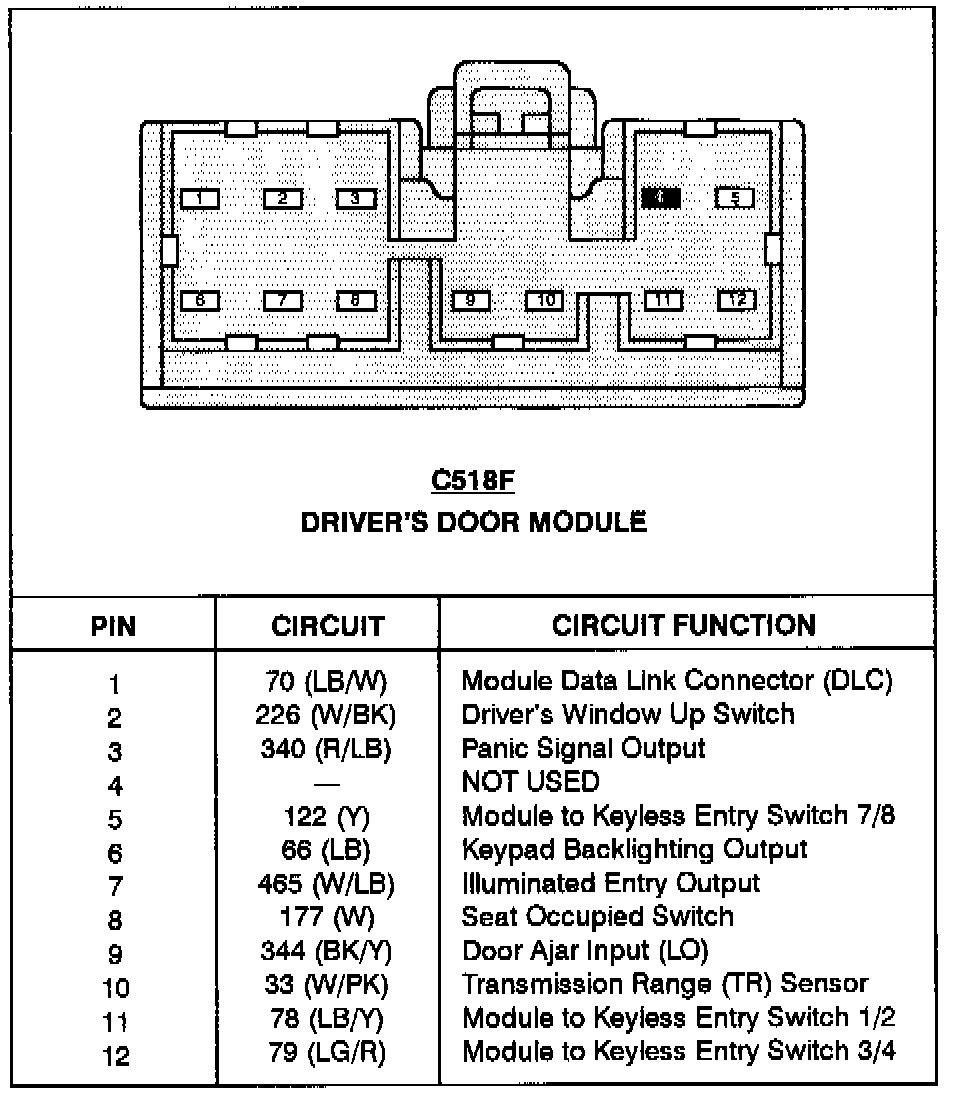

Driver's Door Module (C518):




Driver's Door Module (C520):
