Third Row

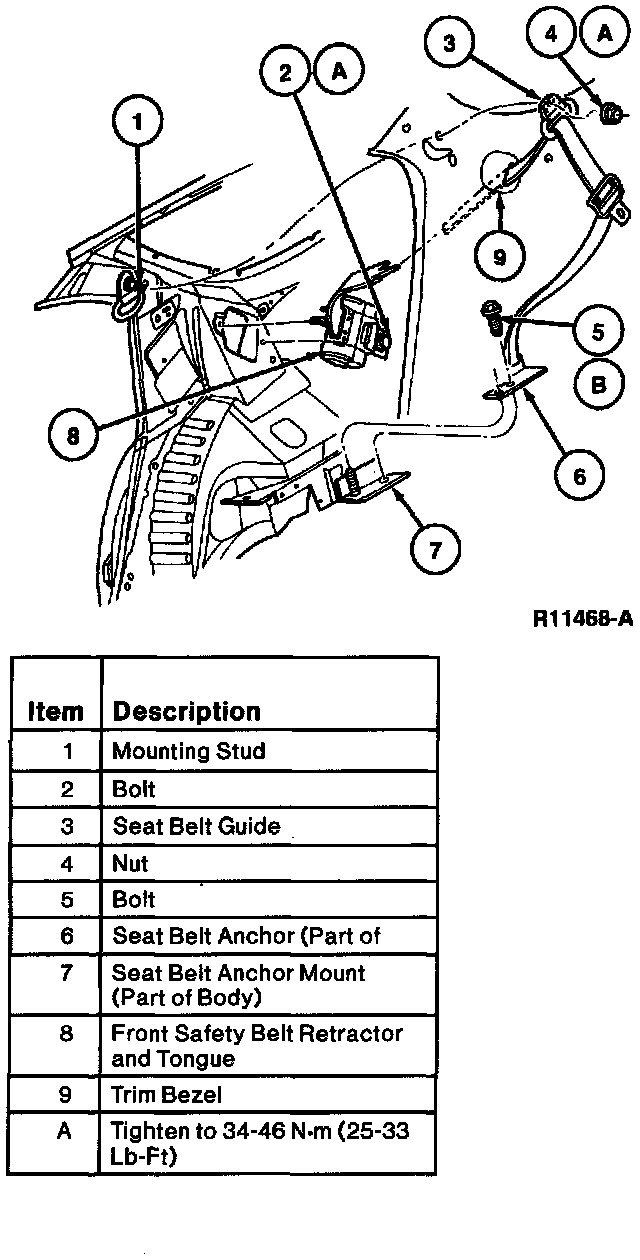

REMOVAL
1. Remove nut and guide from mounting stud.

2. Hold stud stationary at the hex collar that is located behind the quarter trim panel and remove quarter trim panel.

3. Remove stowage compartment door and hinge.

4. Remove bolt and seat belt anchor from rear floor pan.

5. Remove bolt and auxiliary seat belt and retractor assembly from vehicle.

6. Remove trim bezel.

7. Remove seat belt and webbing from quarter trim panel.

INSTALLATION






1. Follow removal procedure in reverse order.

2. Prior to installing nut, apply Threadlock 262 (E2FZ-19554-B or equivalent) meeting Ford specification WSK-M2G35 1-A6 to stud.

3. Tighten bolts to 34-46 Nm (25-33 lb ft).

4. Tighten nut to 34-46 Nm (25-33 lb ft).
