Drive Belt Tensioner: Description and Operation

DESCRIPTION
Automatic drive belt tensioners (6B209) are spring-loaded devices which set and maintain the drive belt tension.

OPERATION
The drive belt tensioner arm should rotate freely without binding. The automatic drive belt tensioners (6B209) will not require any tension adjustment for the life of the drive belt.

INSPECTION

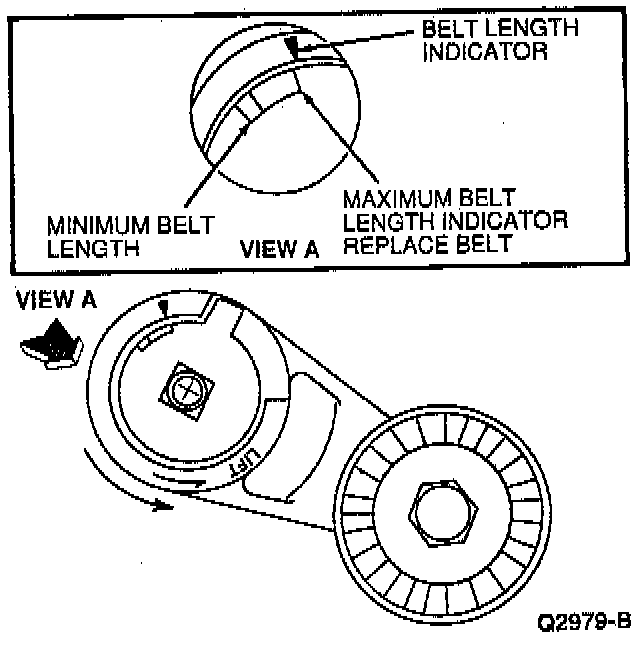

Automatic drive belt tensioners have drive belt wear indicator marks. If the indicator mark is not between the MIN and MAX marks, the drive belt is worn or an incorrect drive belt has been installed. If the indicator marks are difficult to see, locate the tab on the drive belt tensioner face plate. The tab should be approximately between the stops.

SERVICING
The drive belt (8620) should not require tension adjustment for the life of the drive belt. Automatic drive belt tensioners do not have to be removed to remove a drive belt. To remove a drive belt, rotate the drive belt tensioner away from the drive belt.
