Home >> Ford >> 1997 >> Taurus V6-182 3.0L VIN 1 FI Flex Fuel >> Repair and Diagnosis >> Body and Frame >> Weatherstrip >> Rear Door Weatherstrip >> Service and Repair >> Rear Door-Upper Weatherstrip >> Removal

Removal



















1. Open rear door.

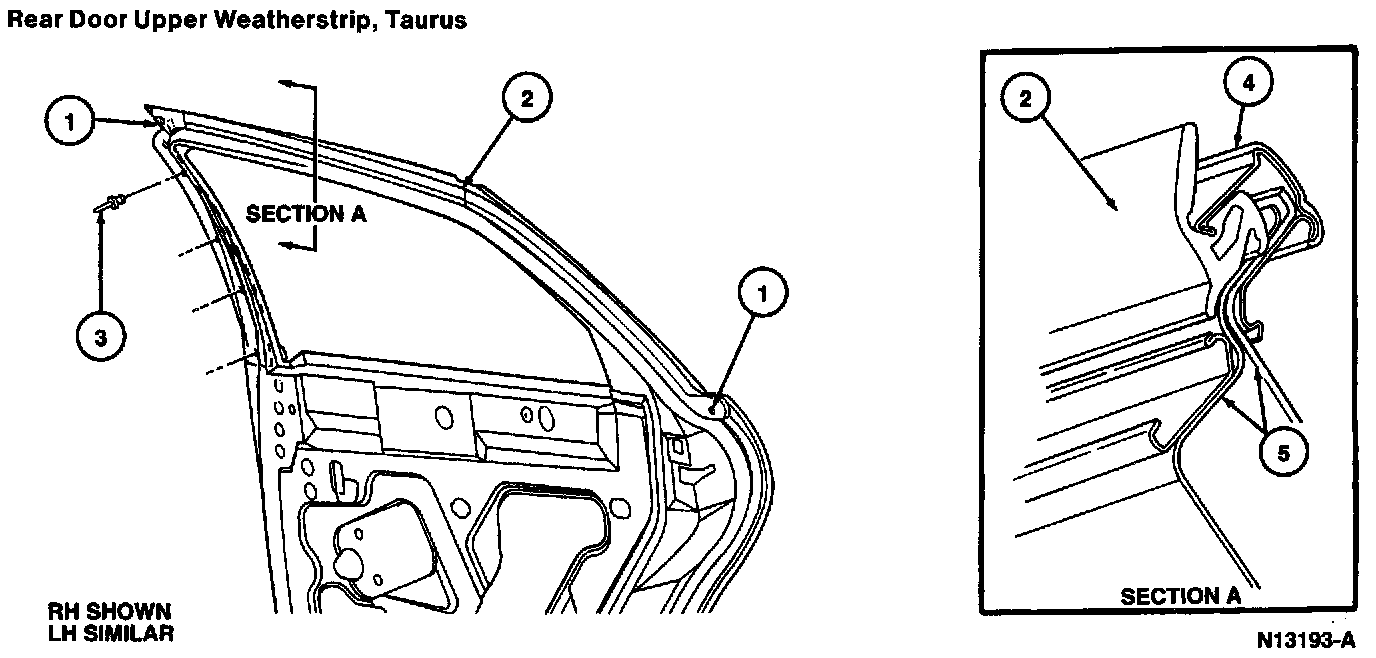

2. Remove two pushpins and rivets retaining rear door upper weatherstrip to rear door.
