Removal

1. Open luggage compartment door.

2. Unsnap and remove luggage compartment door inside cover from luggage compartment door.

3. Disconnect anti-tamper switch from luggage compartment lock cylinder.

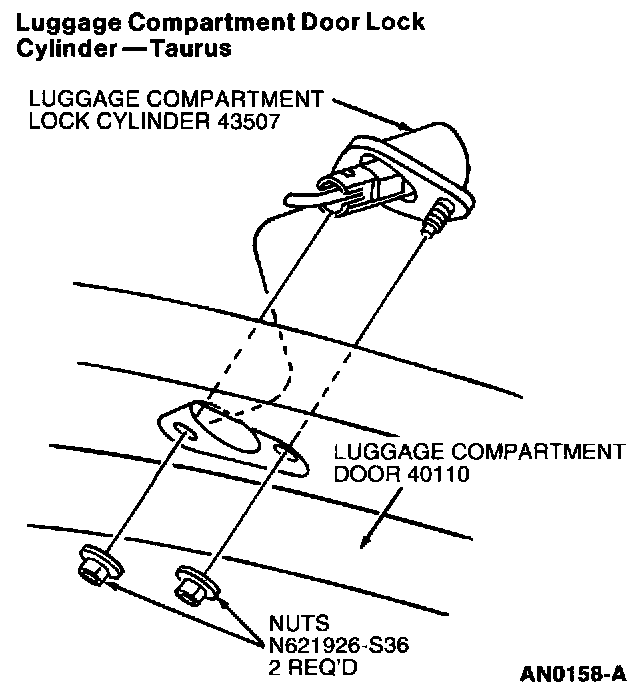

4. Remove two retaining nuts, and remove luggage compartment lock cylinder from luggage compartment door.
