Probe V6-153 2.5L DOHC VIN B MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Locations
>>
Automatic Transmission
Automatic Transmission

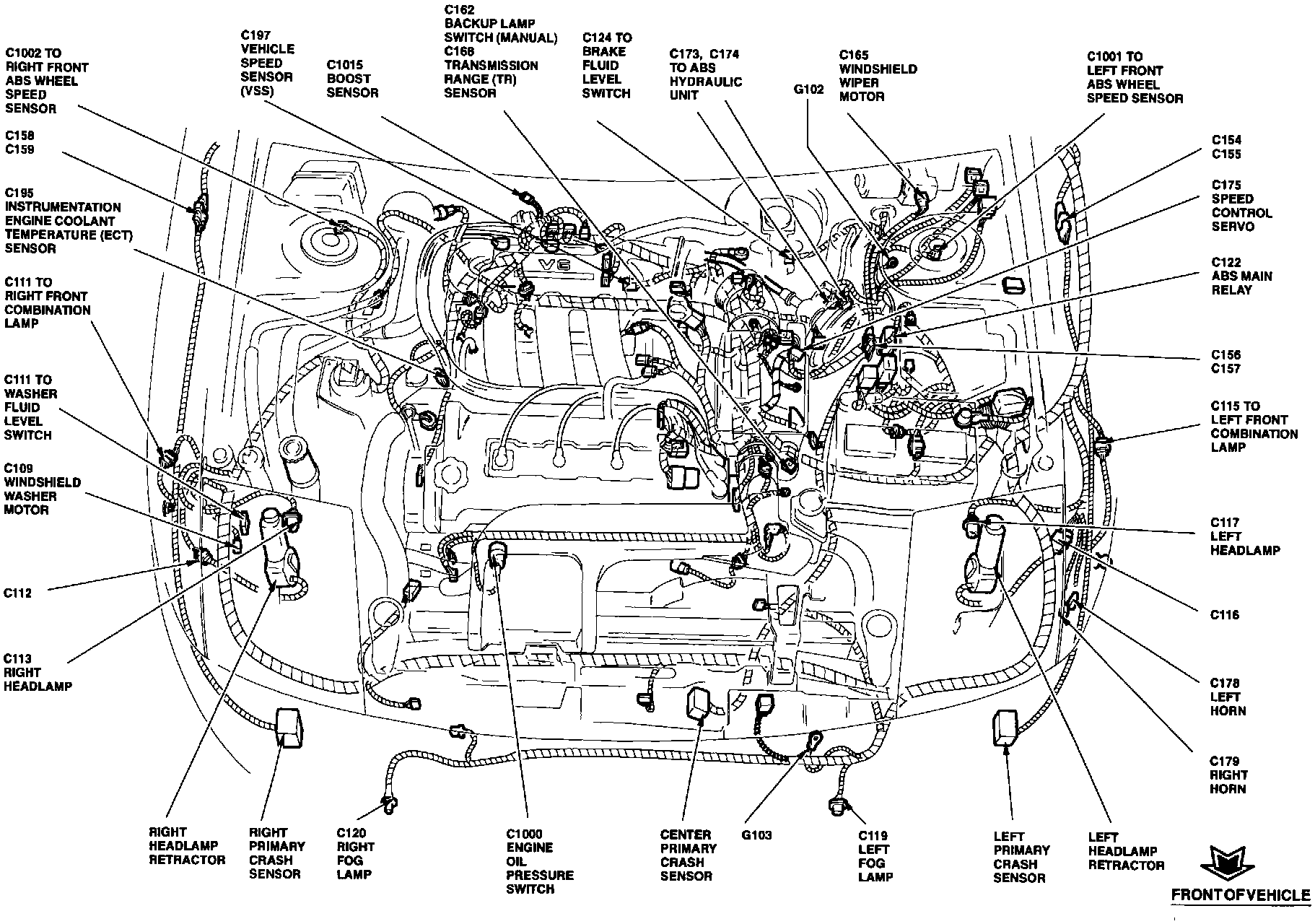

Engine View:
The Transmission Range Sensor is located on the top front of transaxle.
