Fuse HD LPS

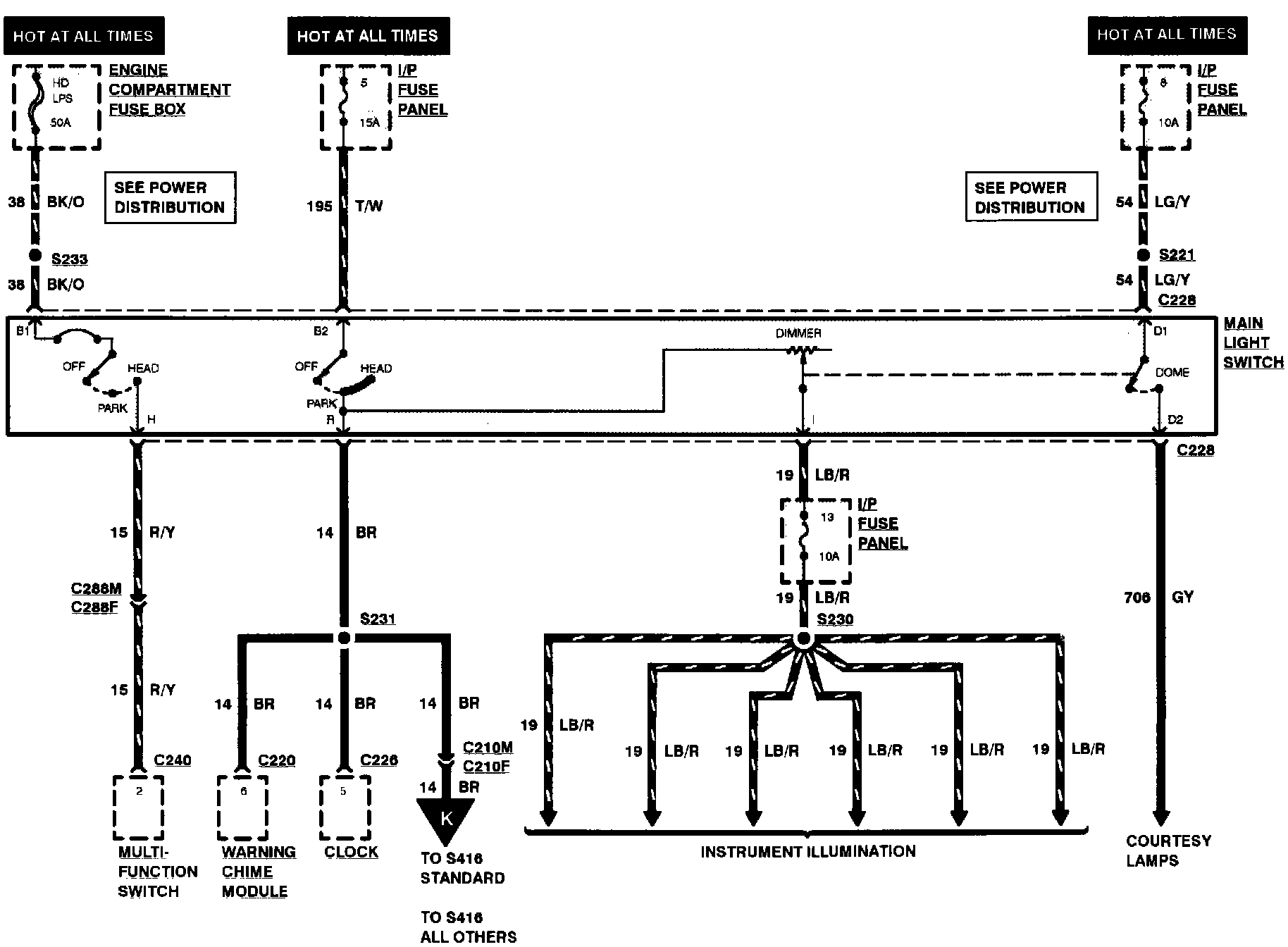

Fuse HD LPS - protects the following circuits:
^ Exterior Lamps
^ Instrument Panel Fuse Panel

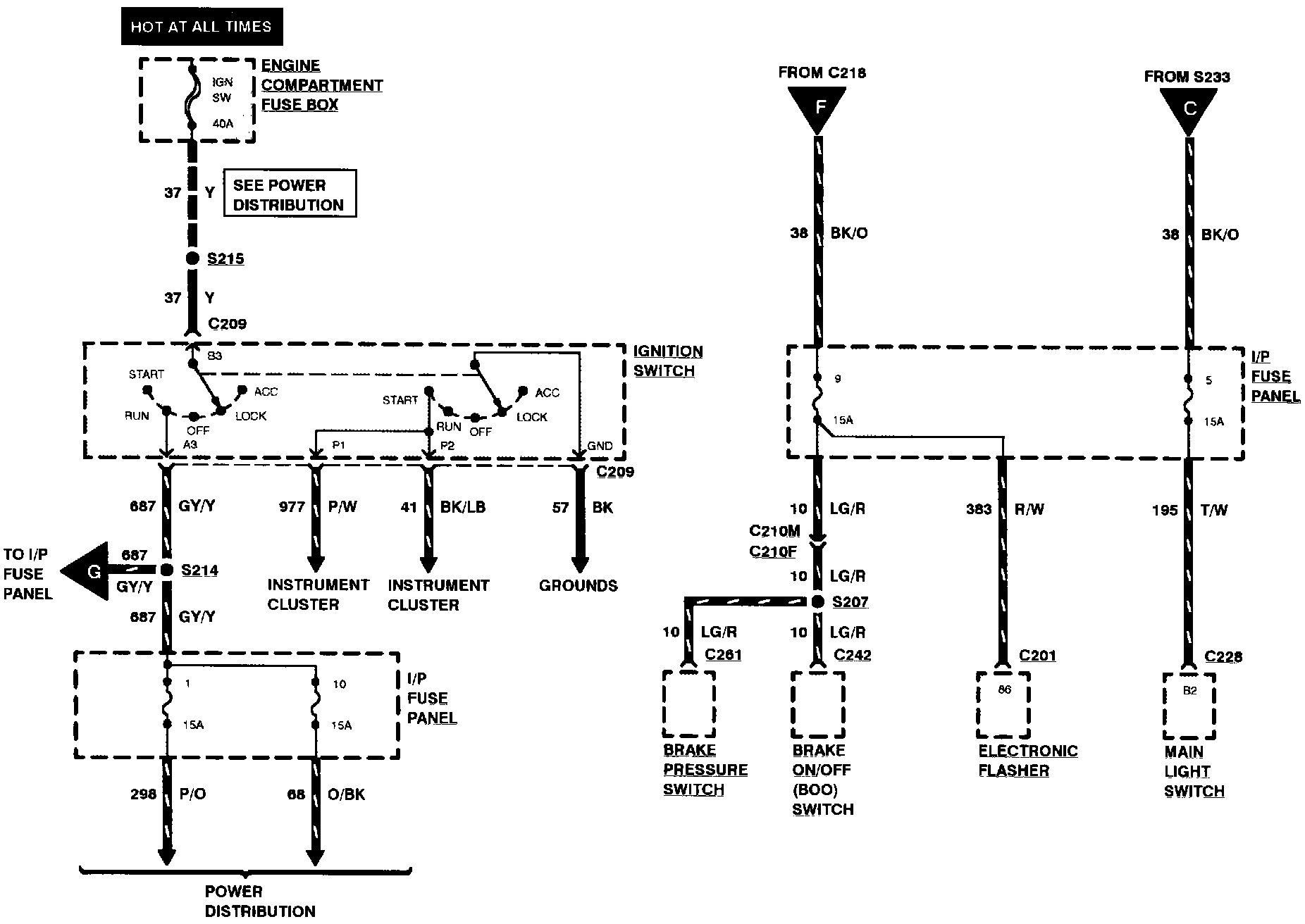

Power Distribution:

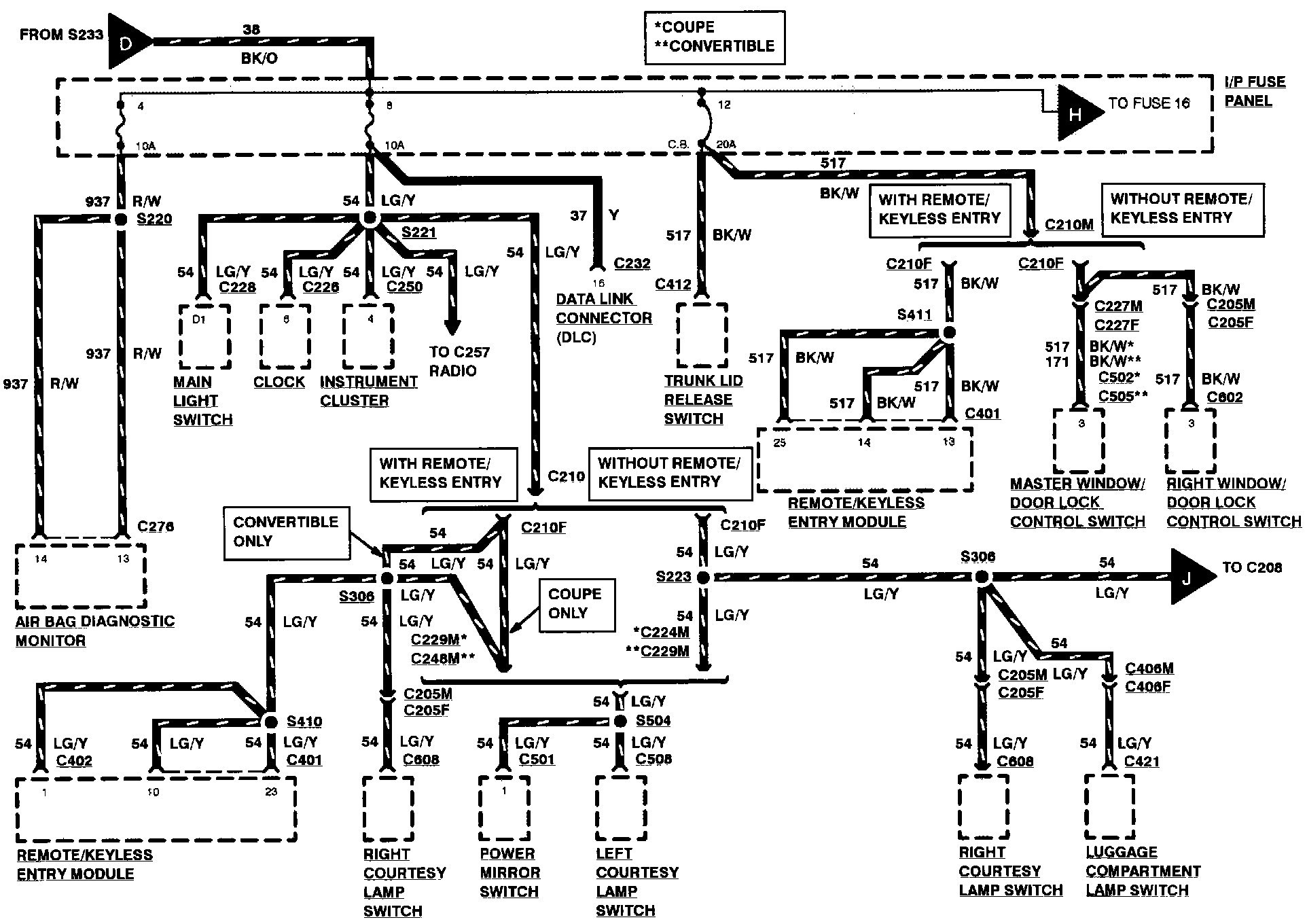

Power Distribution:

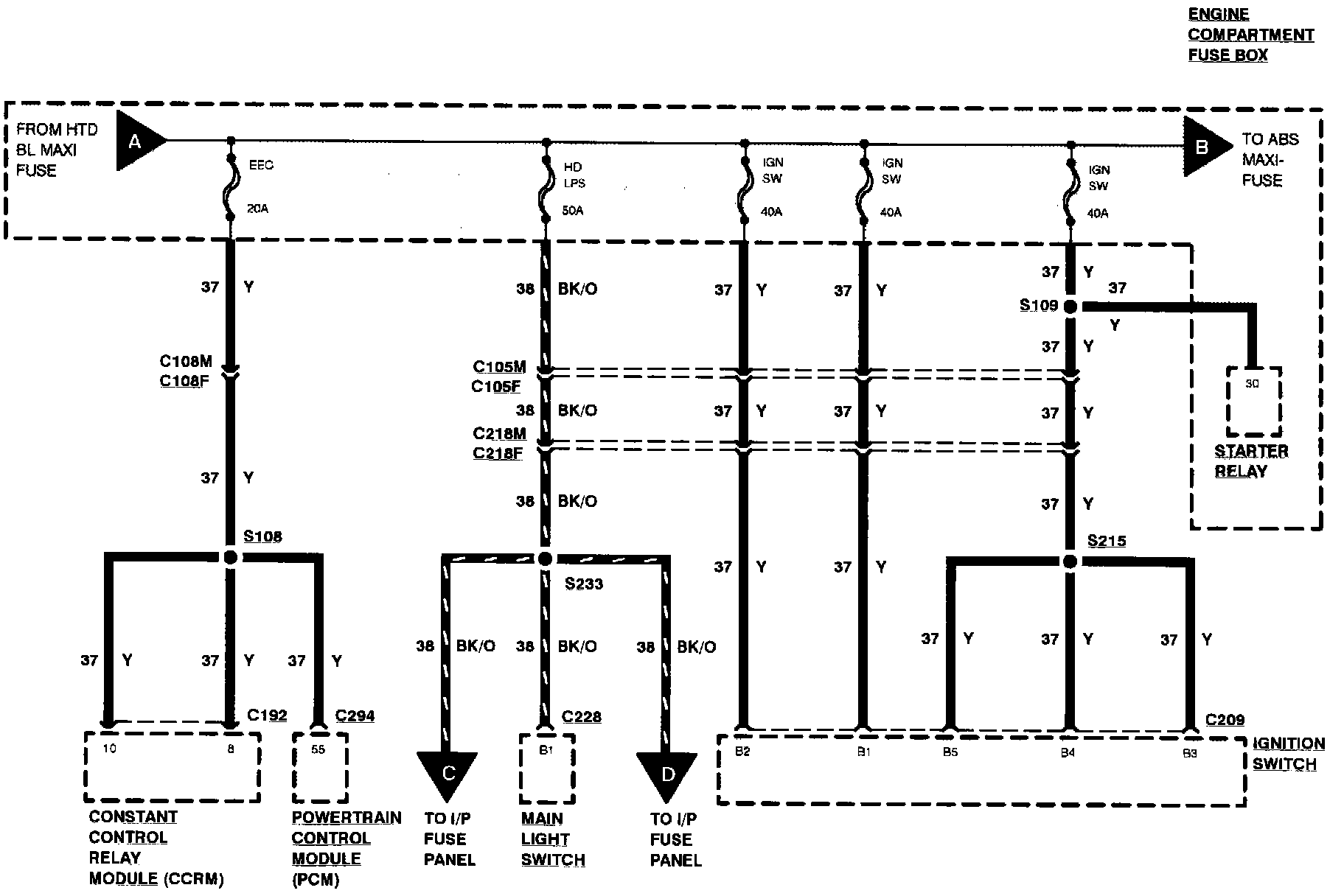

Power Distribution:




Power Distribution:
