Brake Caliper
>>
Rear
Rear

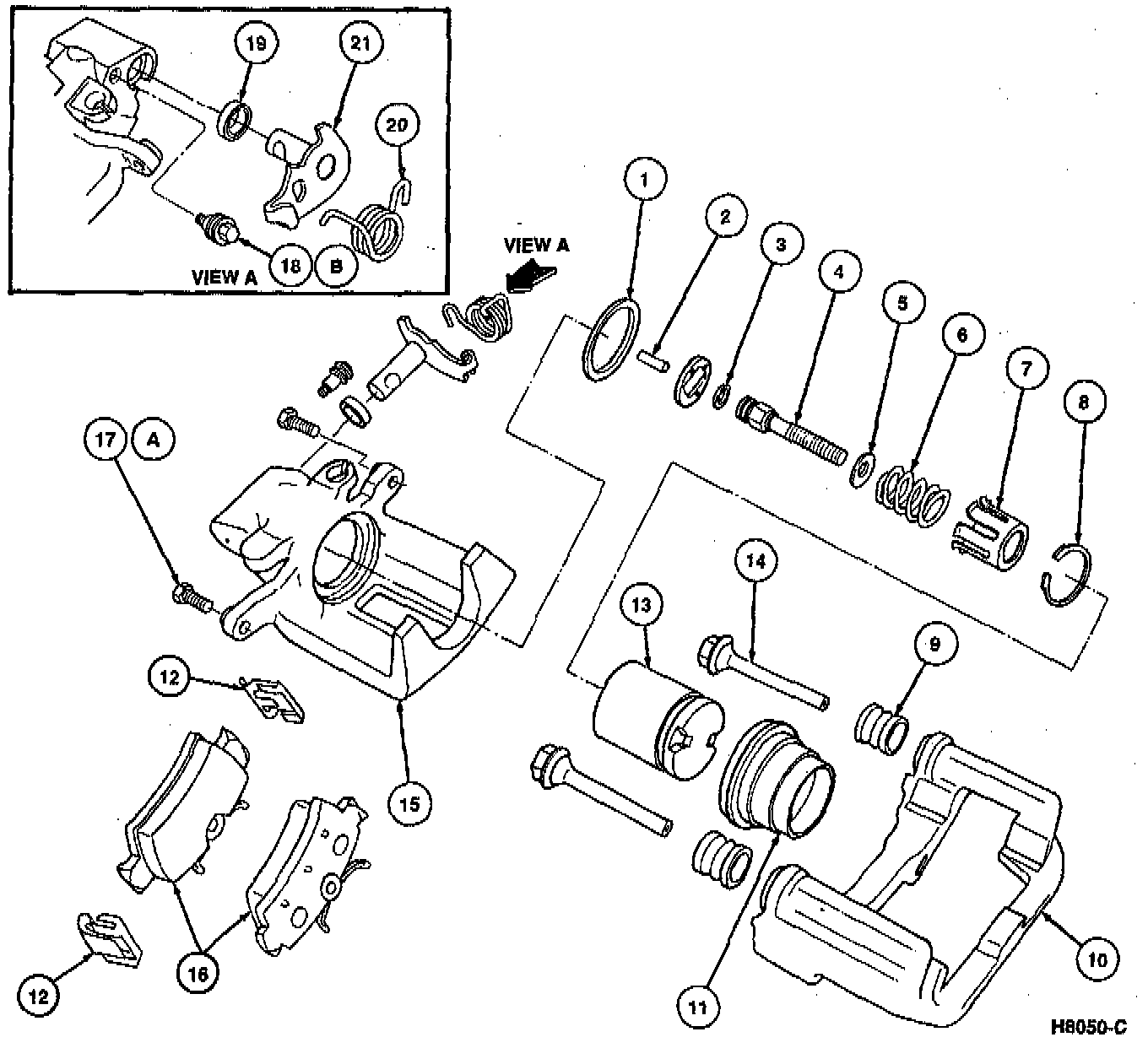

Disc Brake Caliper, Rear Internal Components (Part 1 Of 2):

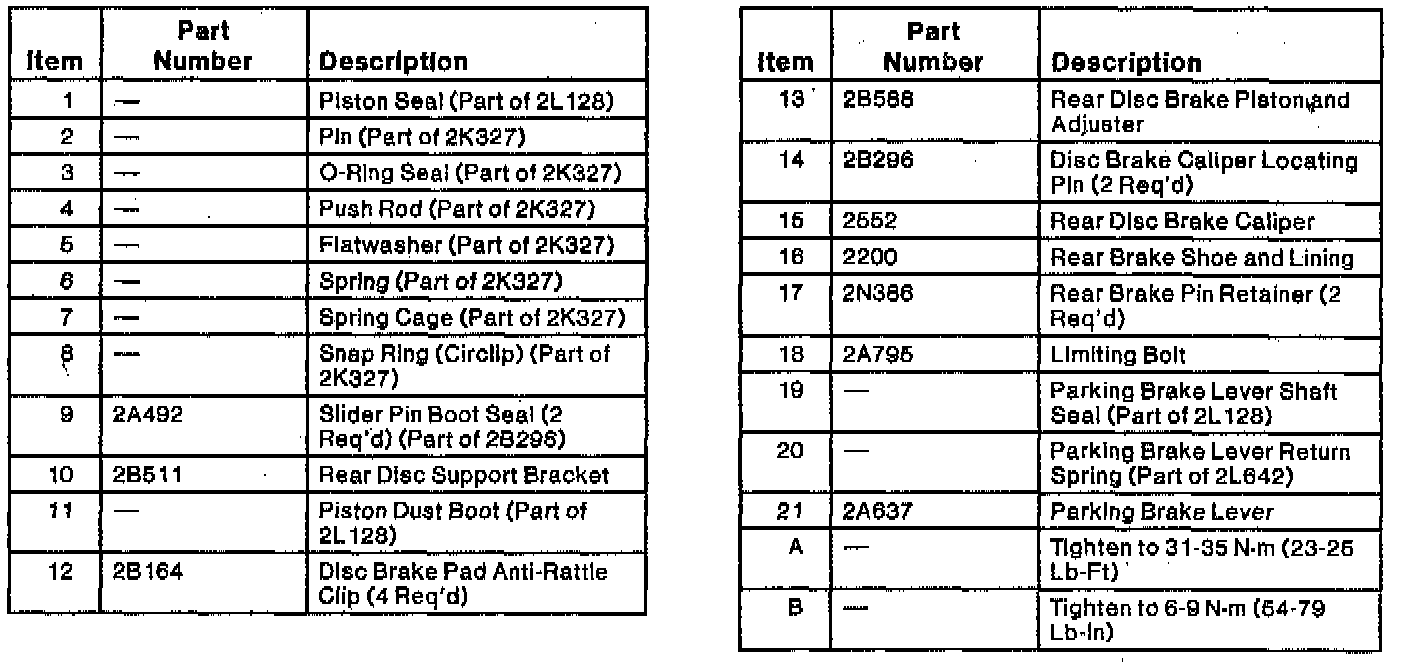

Disc Brake Caliper, Rear Internal Components (Part 2 Of 2):

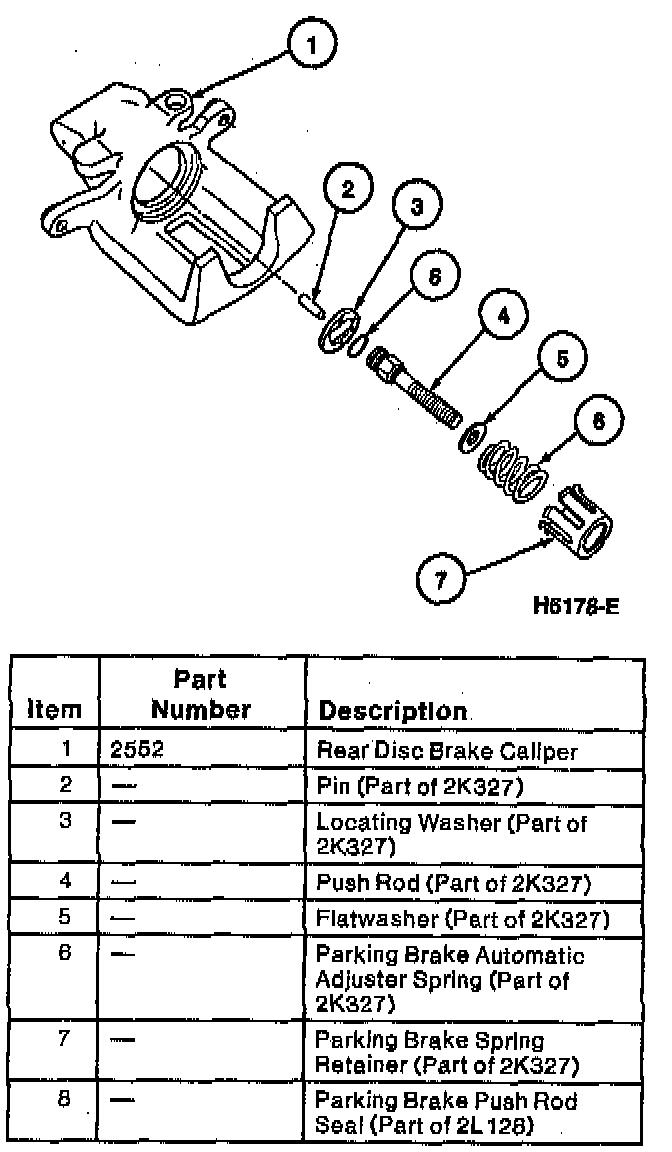

Rear Disc Brake Caliper Parking Brake Mechanism:
