Power Steering Pressure Control Valve: Service and Repair

Auxiliary Actuator Removal

1. Remove steering gear. Service and Repair

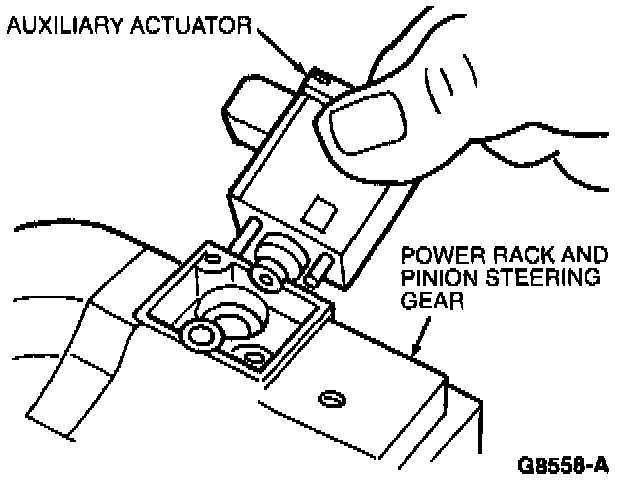

2. Remove two retaining screws and remove power steering auxiliary actuator (3N803) and filter screen from power rack and pinion steering gear.

Installation

1. Install filter screen into auxiliary actuator bore.
2. Install two 0-rings on power steering auxiliary actuator.
3. Install power steering auxiliary actuator into power rack and pinion steering gear and install two auxiliary actuator retaining screws.
4. Install steering gear. Service and Repair
