Home >> Ford >> 1996 >> Taurus V8-3.4L VIN N SHO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC >> System Diagram

System Diagram

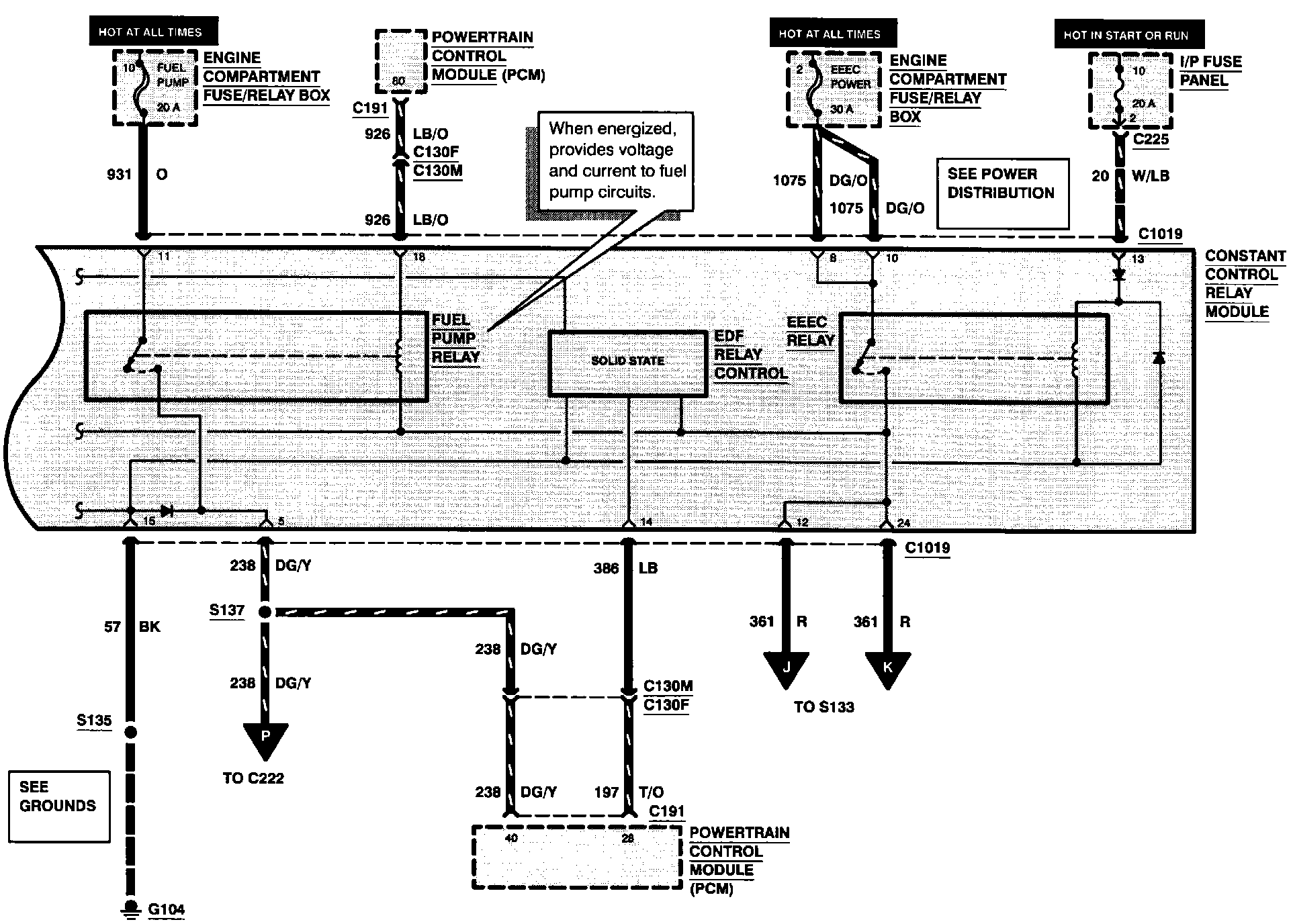

Engine Controls (Part 1 Of 13):

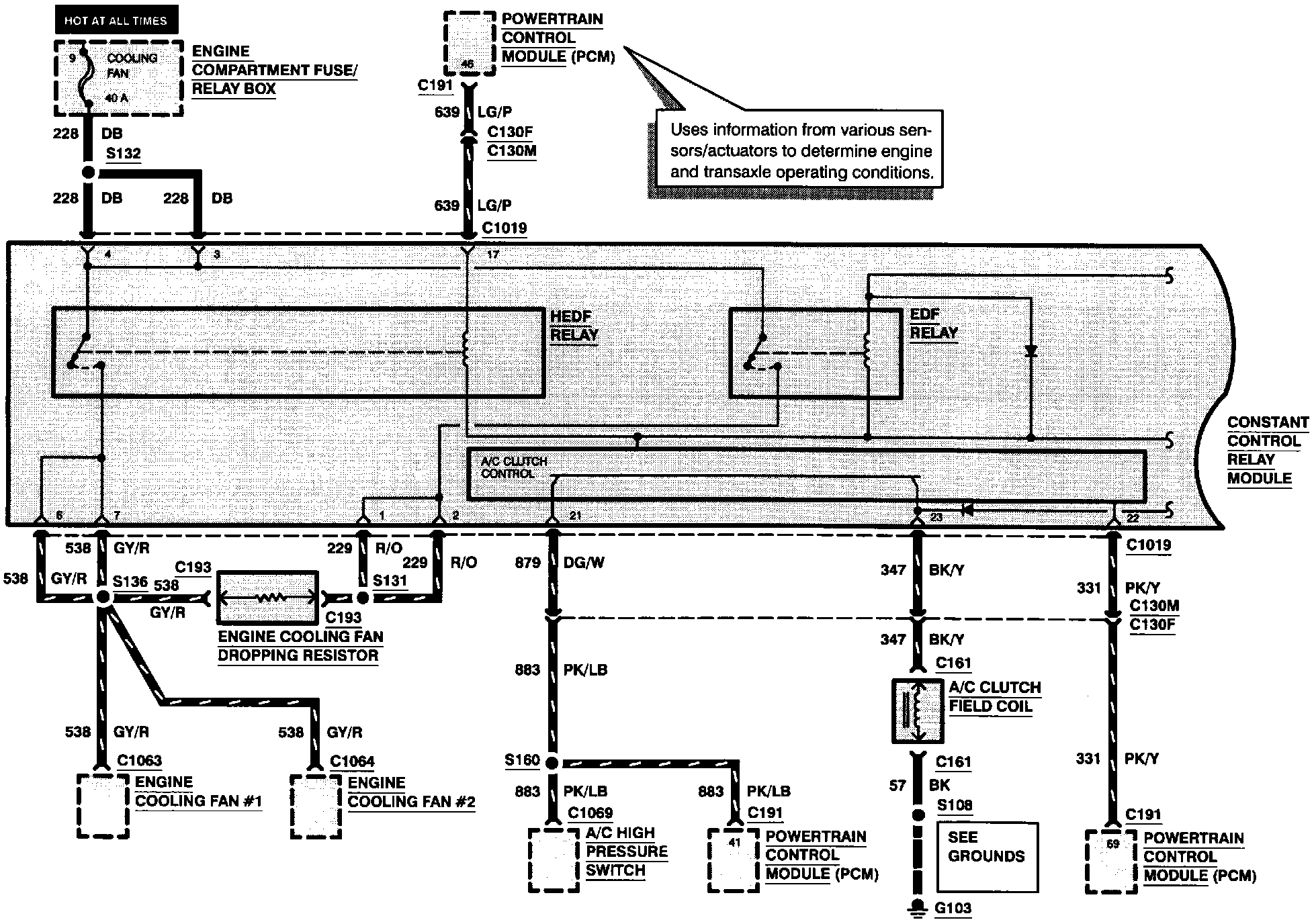

Engine Controls (Part 2 Of 13):
