Right Power Window/Door Lock Switch
Right Power Window/Door Lock Switch

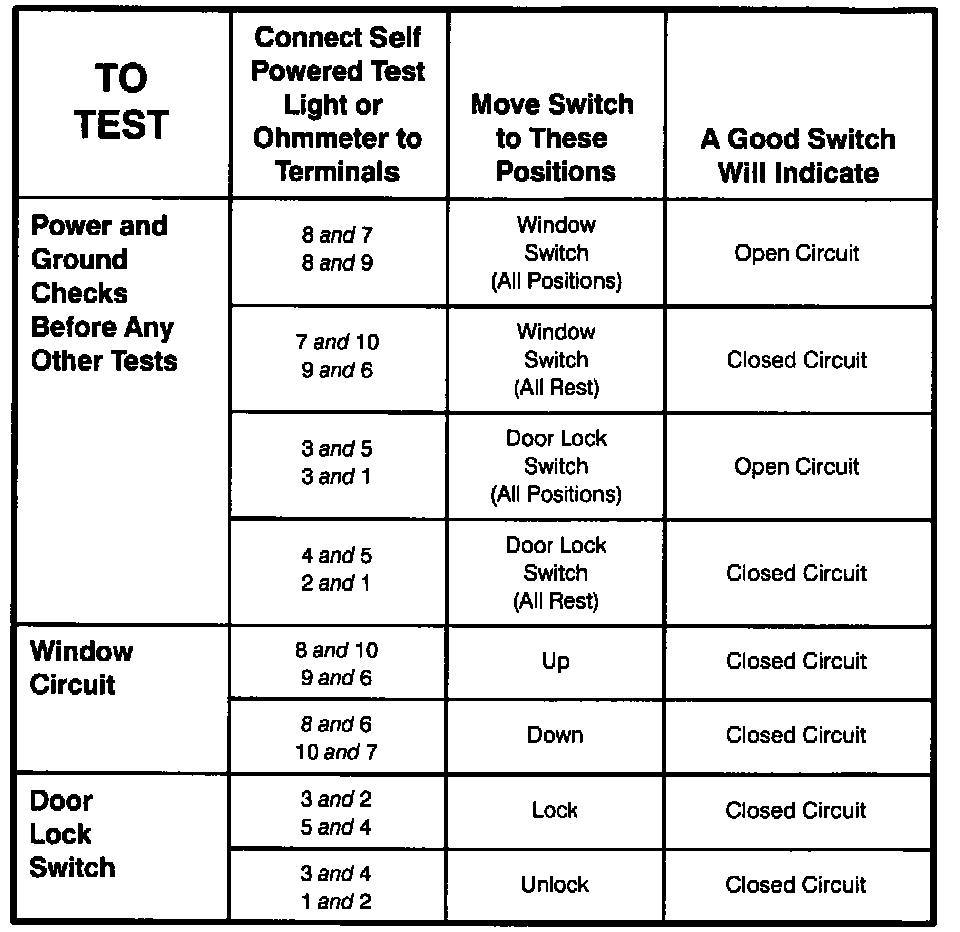

Right Window/door Lock Control Switch-component Testing Procedure:
Terminals:
Right Window/door Lock Control Switch-Schematic:
