Home >> Ford >> 1996 >> Mustang V8-281 4.6L SOHC >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> Master Window/Door Lock Control Switch >> Coupe

Coupe

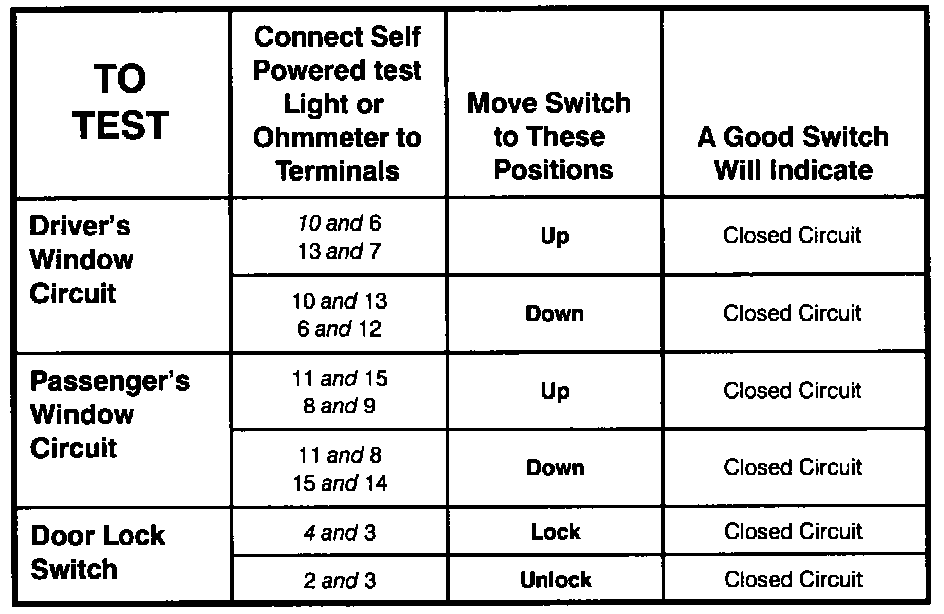

Master Window/door Lock Control Switch-Component Testing Procedure (Coupe):




Master Window/door Lock Control Switch-Component Testing Procedure (Coupe):




Master Window/door Lock Control Switch-Terminal Locations (Coupe):

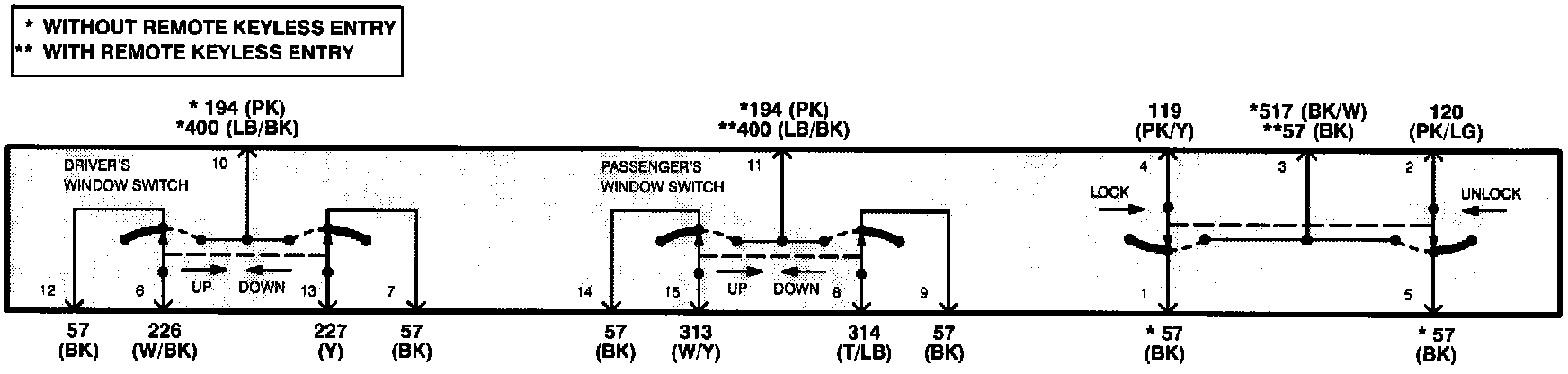

Master Window/door Lock Control Switch-Schematic (Coupe):
