Convertible

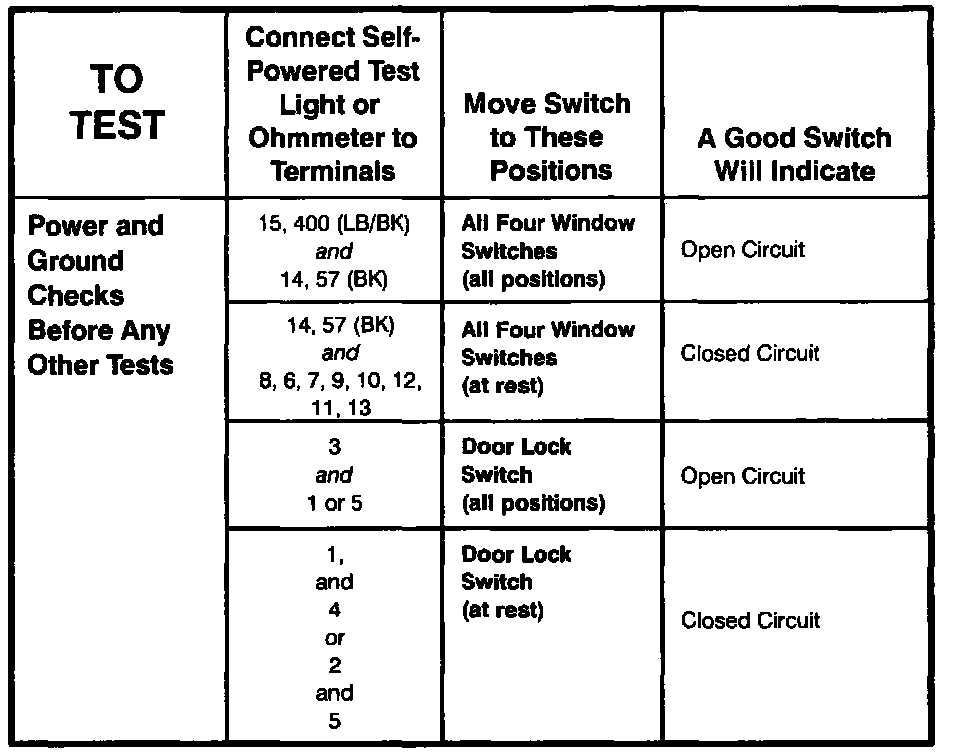

Master Window/door Lock Control Switch-Component Testing Procedure (Convertible):

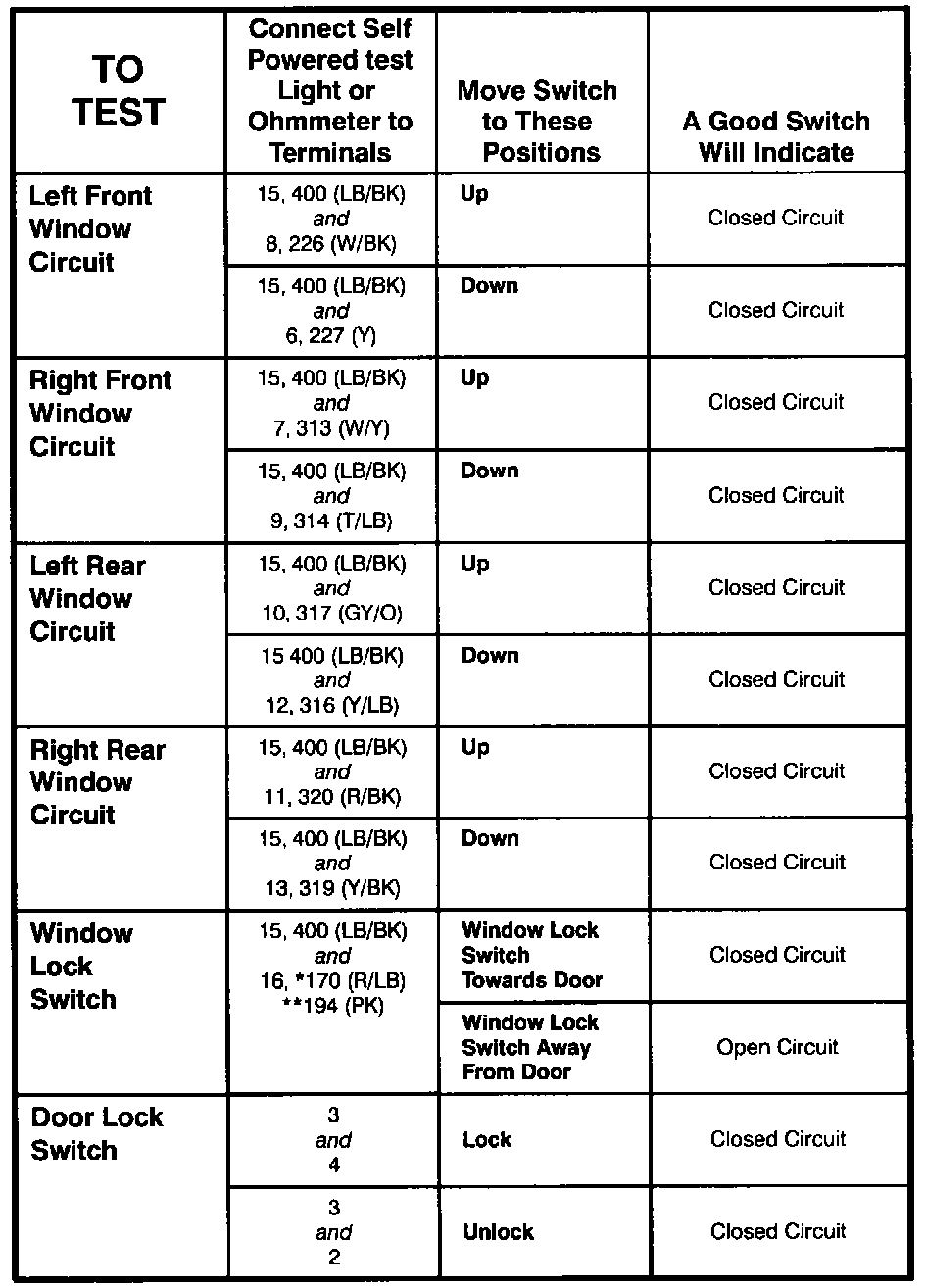

Master Window/door Lock Control Switch-Component Testing Procedure (Convertible):

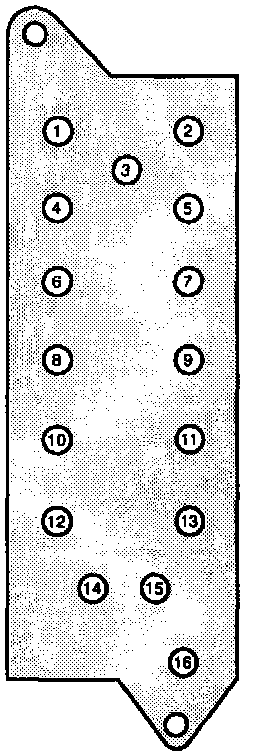

Master Window/door Lock Control Switch-Terminal Locations (Convertible):

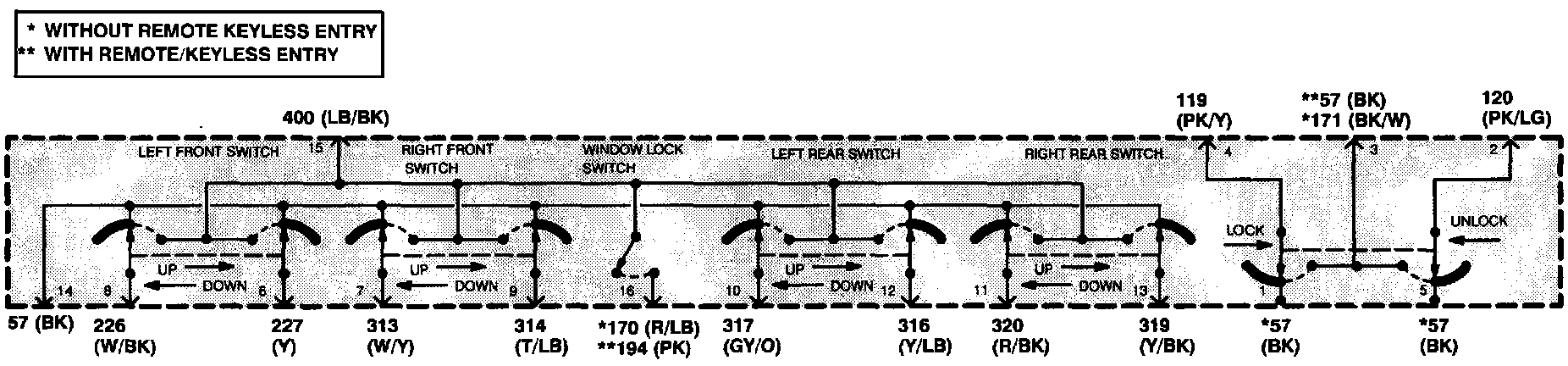

Master Window/door Lock Control Switch-Schematic (Convertible):
