Home >> Ford >> 1996 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Midline Radio System Front Control Unit

Midline Radio System Front Control Unit

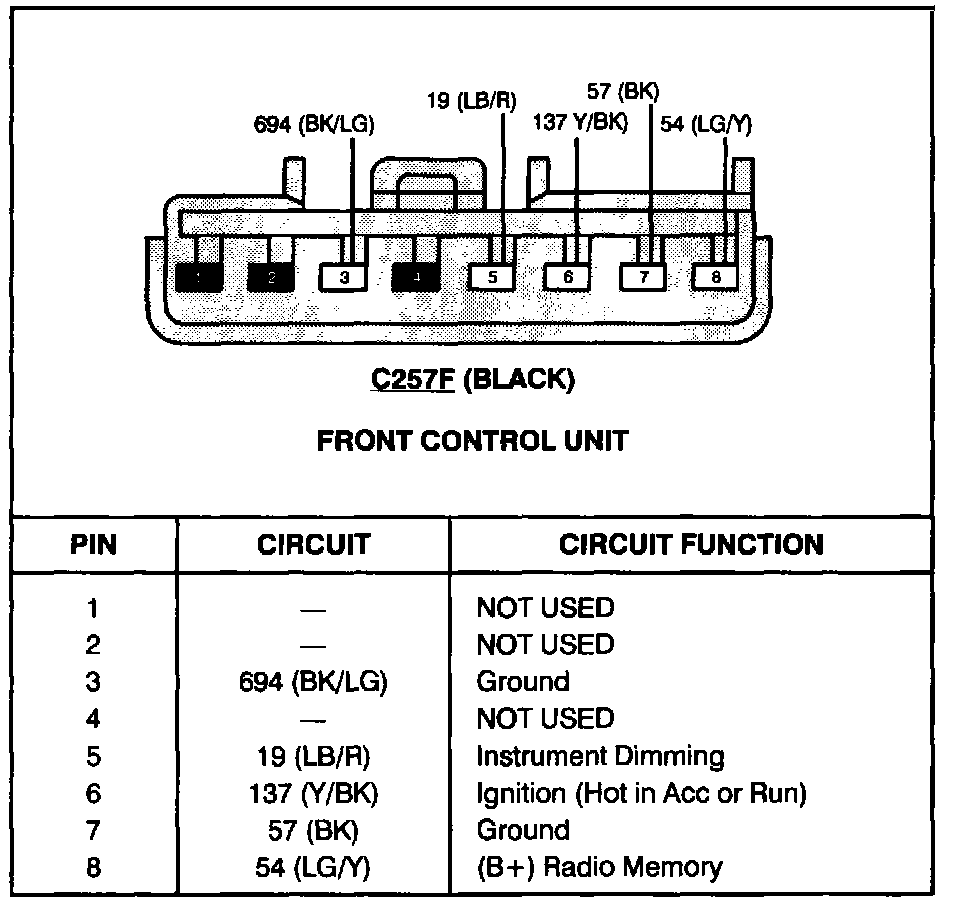

Front Control Unit-C257:



Front Control Unit-C258 (M-100):
