Ignition Control Module: Locations

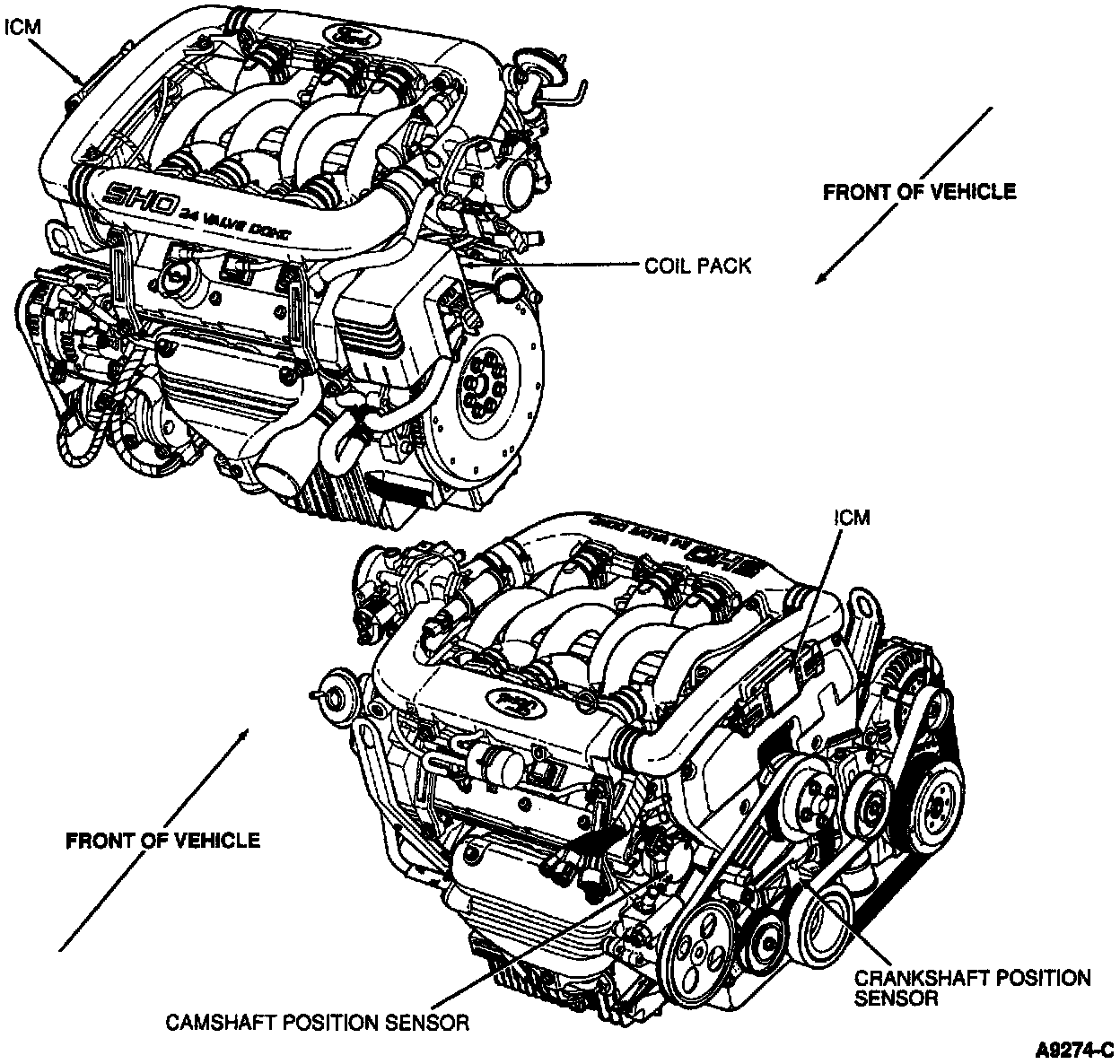

Engine Views SHO:

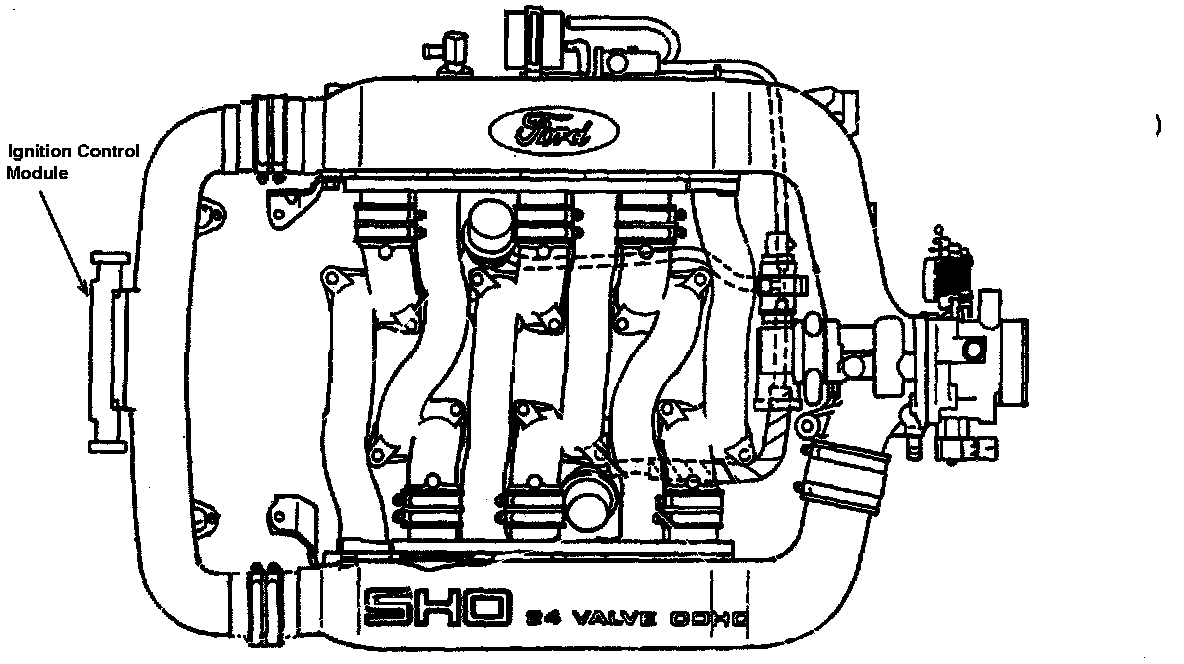

Ignition Control Module:

Ignition Control Module:

Center of engine air inlet connector.
