Ignition Control Module: Service and Repair

Ignition Control Module:

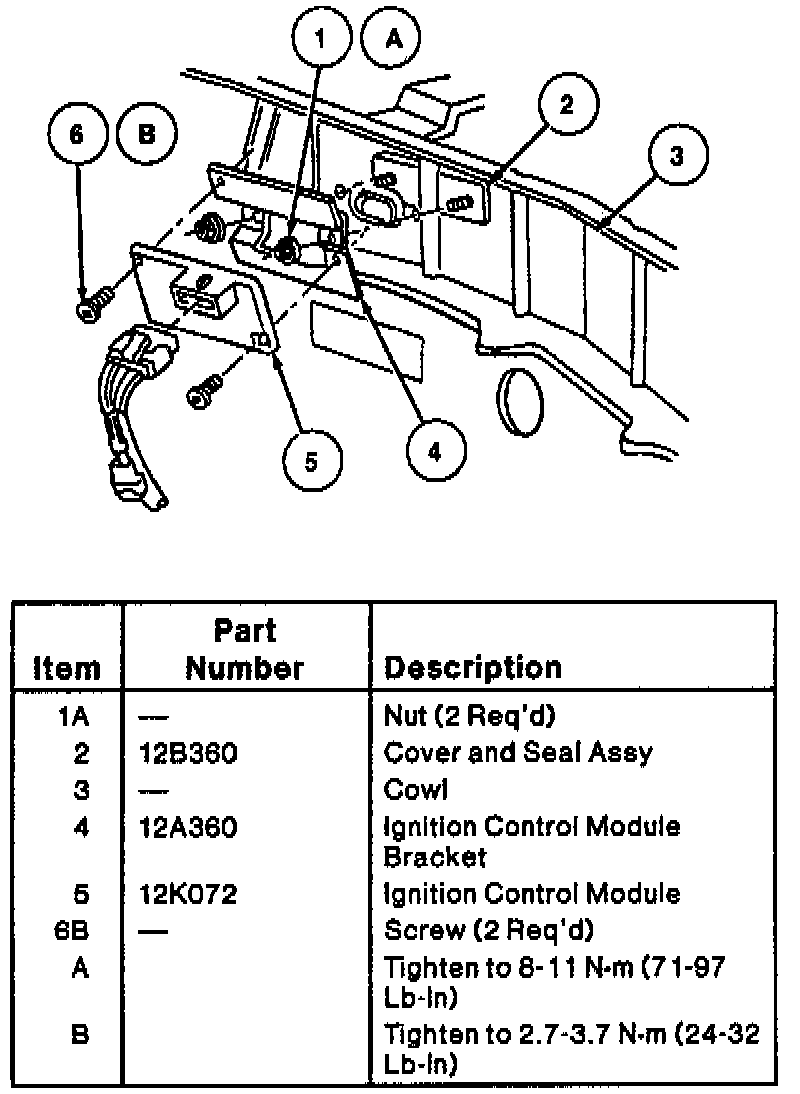

Removal

1. Disconnect Ignition Control Module (ICM) electrical connector by pushing down on the connector finger ends while grasping the connector body and pulling away from the ICM.
2. Remove two ICM retaining screws and remove module.

Installation

1. Position ICM to bracket and install retaining screws, tightening to 24-32 in lb (2.7-3.7 Nm).
2. Connect module electrical connector by pushing until connector fingers are locked over locking wedge feature on ICM. Locking the connector is important to ensure sealing of the connector and ICM interface.
