F - Misfire Under Load (Bad Plugs, Wires, or Short to Ground)
>>
Test Step 6
Test Step 6

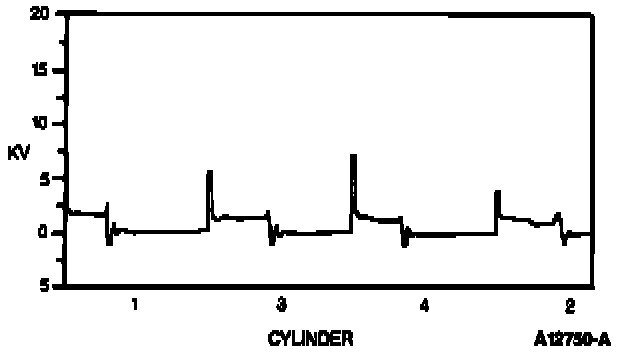

Consistently low
spark plug
firing voltage or sloping spark line in one or more cylinders.
^
Fouled
spark plug
(s).
^
Narrow
spark plug
gap(s).
^
Spark plug wire(s) grounding on engine.
^
Inspect for damage.
