Home >> Ford >> 1993 >> Taurus V6-182 3.0L VIN 1 FI Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> EFD - Fuel Delivery Diagnosis >> EFD14 - Check High/Low Fuel Pump Speed

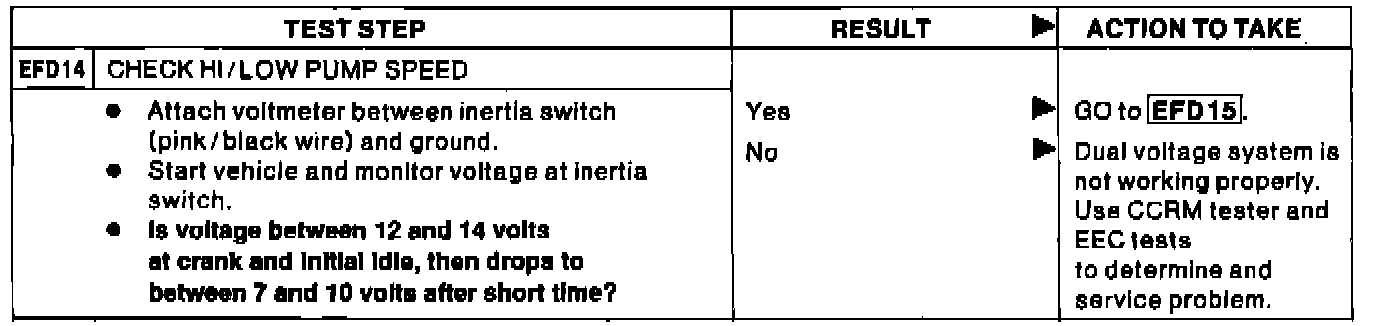

EFD14 - Check High/Low Fuel Pump Speed

EFD14 - Check High/Low Fuel Pump Speed:
