HB - Flexible Fuel (FF) Control
>>
HB9 - Check Injector Driver Signal
HB9 - Check Injector Driver Signal

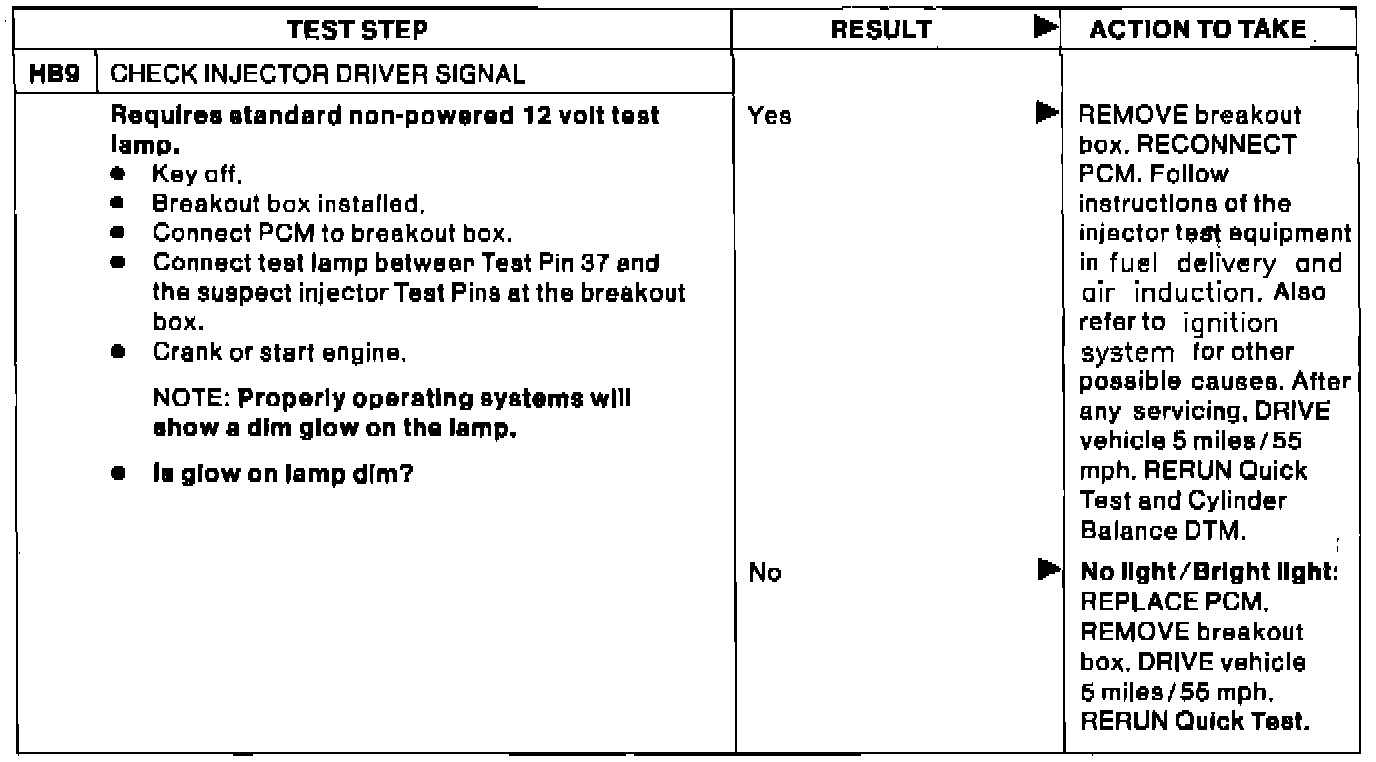

Pinpoint Test HB9:
