FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
1993
>>
Taurus V6-182 3.0L VIN 1 FI Flex Fuel
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
HB - Flexible Fuel (FF) Control
>>

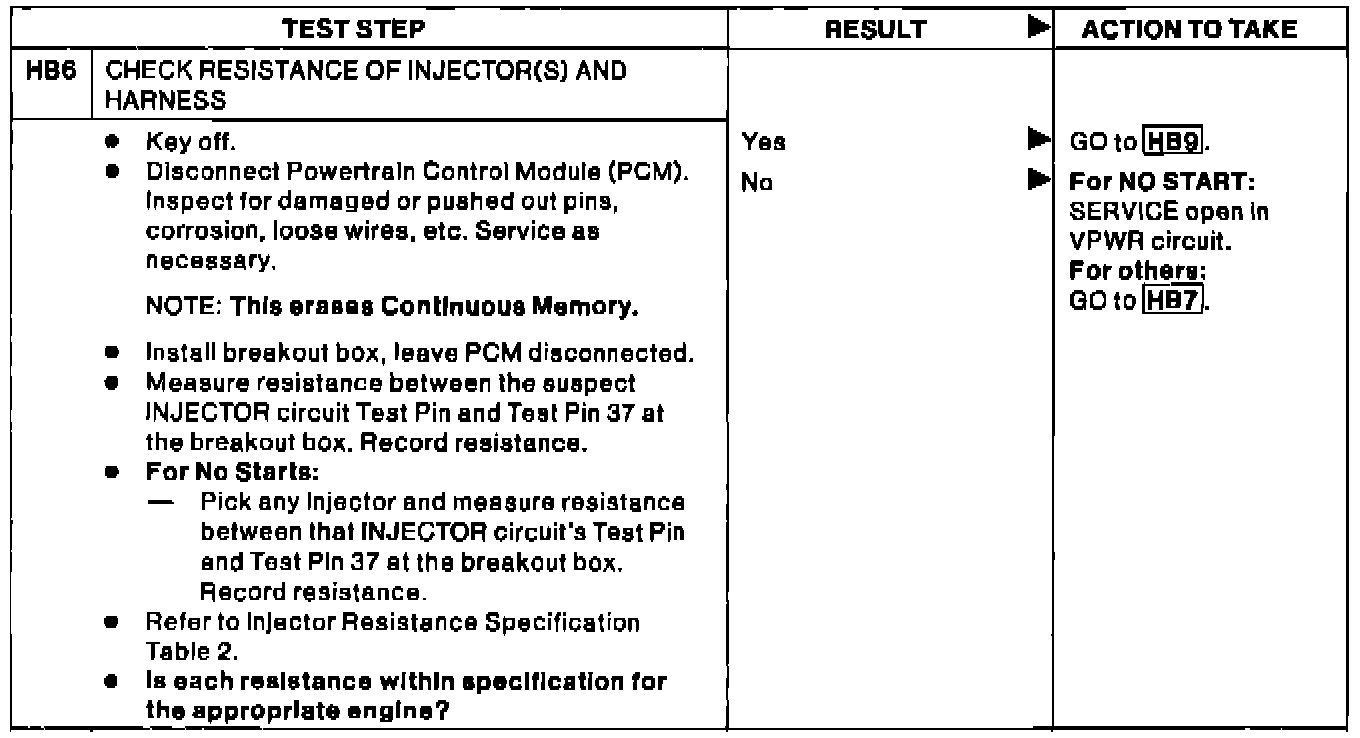

HB6 - Check Resistance of Injector(s) and Harness
HB6 - Check Resistance of Injector(s) and Harness
Pinpoint Test HB6:
