HB - Flexible Fuel (FF) Control
>>
HB28 - Check For Short to Power In CSI Control Circuit
HB28 - Check For Short to Power In CSI Control Circuit

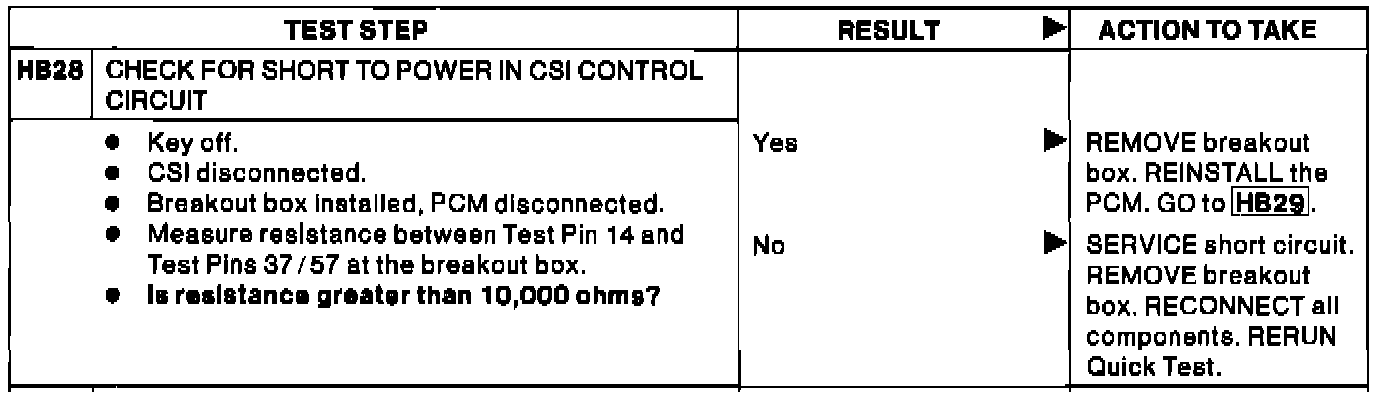

Pinpoint Test HB28:
