Home >> Ford >> 1993 >> Taurus V6-182 3.0L VIN 1 FI Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> HB - Flexible Fuel (FF) Control >> HB23 - Check Continuous Monitor Diagnostic Test Mode (DTM)

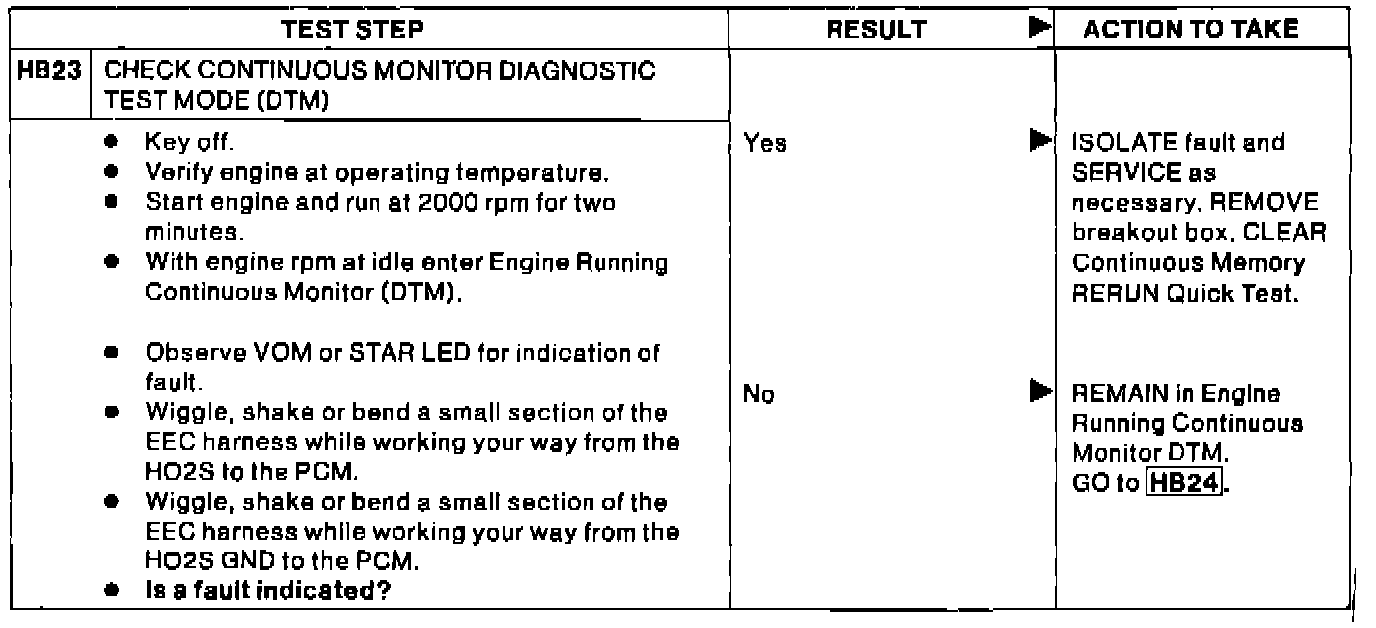

HB23 - Check Continuous Monitor Diagnostic Test Mode (DTM)

Pinpoint Test HB23:
