Taurus V6-182 3.0L VIN 1 FI Flex Fuel
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
HB - Flexible Fuel (FF) Control
>>
HB21 - Attempt to Generate DTC 136, 172, or 176
HB21 - Attempt to Generate DTC 136, 172, or 176

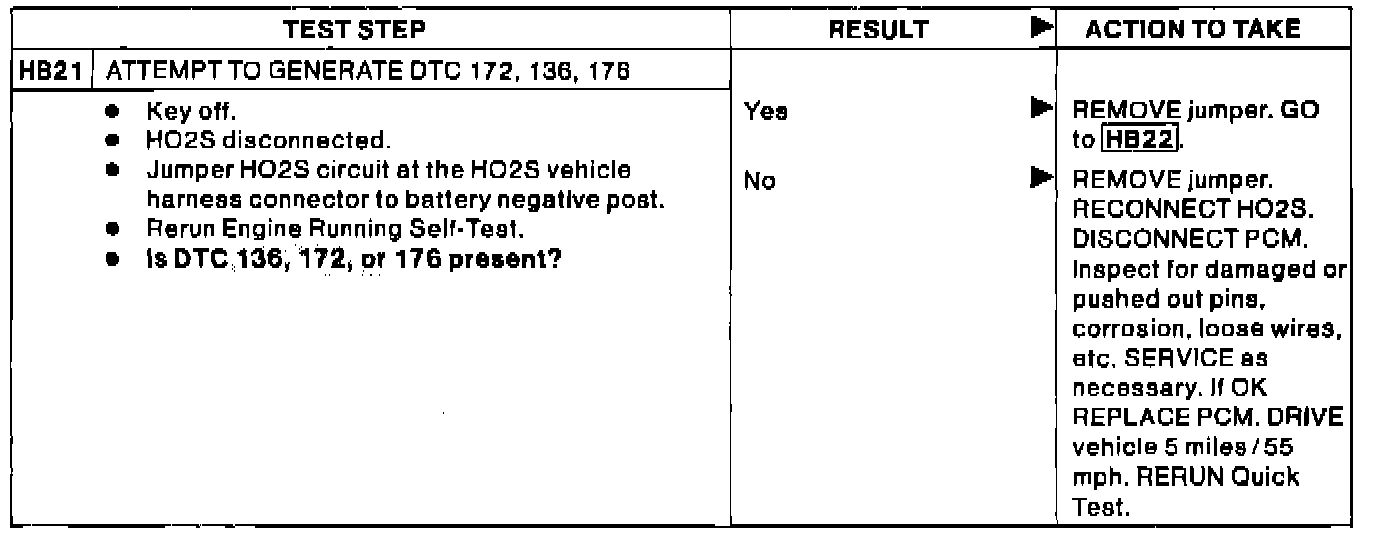

Pinpoint Test HB21:
