Taurus V6-182 3.0L VIN 1 FI Flex Fuel
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
HB - Flexible Fuel (FF) Control
>>

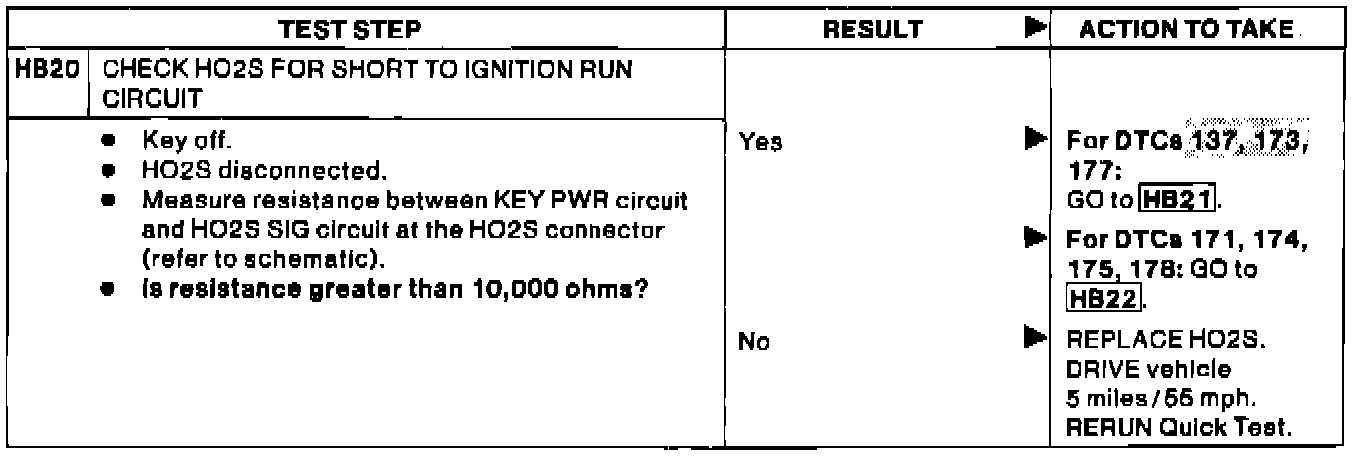

HB20 - Check HO2S For Short to Ignition Run Circuit
HB20 - Check HO2S For Short to Ignition Run Circuit
Pinpoint Test HB20:
