HB - Flexible Fuel (FF) Control
>>
HB17 - Check Continuity of Power Ground Circuit
HB17 - Check Continuity of Power Ground Circuit

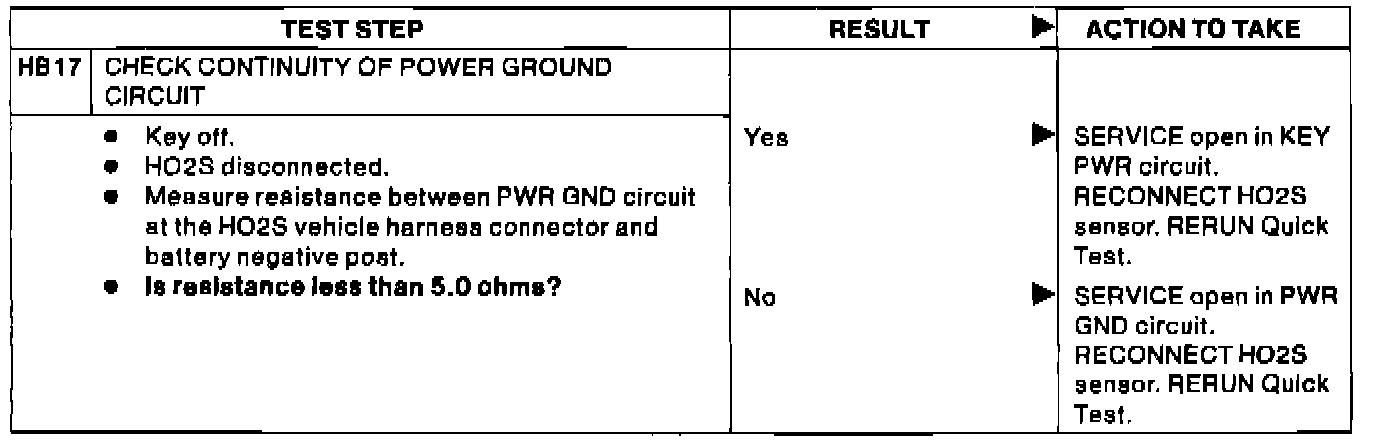

Pinpoint Test HB17:
